Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+9K+9K+9K

Description

This comprehensive HVAC bundle features essential components designed to create an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of connecting to multiple indoor units for customized comfort. The MSZ-FX06NL and MSZ-FX09NL wall-mounted air handlers provide versatile heating and cooling options, perfect for various room sizes. To ensure optimal refrigerant flow, the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate connections to multiple indoor units, while the MSDD-50AR2-E branch pipe distribution kit guarantees balanced refrigerant distribution. Together, these components create a cohesive system ideal for both residential and commercial applications.

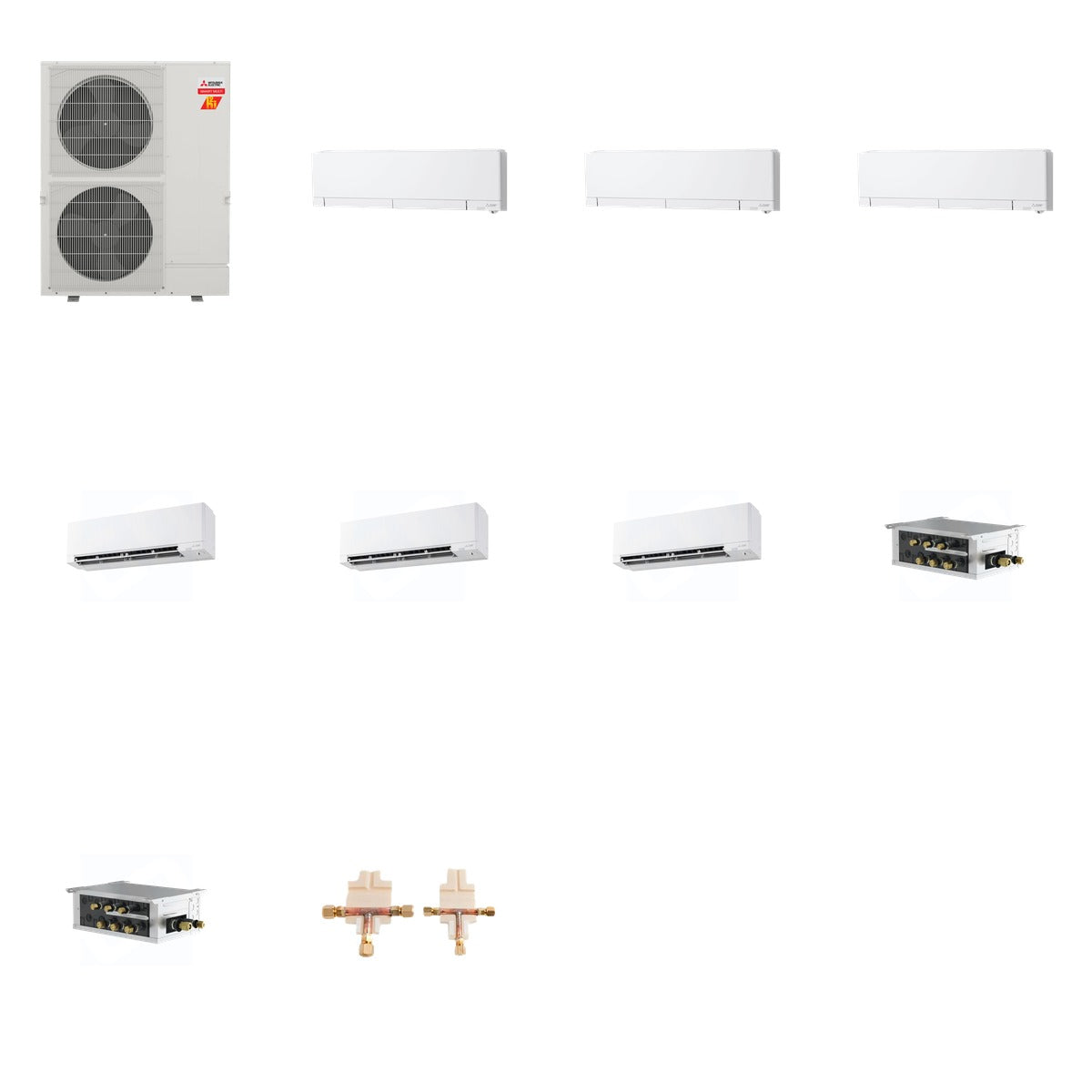

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 436.3 lb (Mitsubishi 225 lb + Mitsubishi 87 lb + Mitsubishi 109.2 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, dimensions 41-11/32" W x 13" D x 52-11/16" H, sound level as low as 58 dB(A)
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, dimensions 39.27" W x 9.75" D x 12" H, sound level 20-42 dB
• MSZ-FX09NL: 9,000 BTU, SEER2 up to 35, dimensions 39.27" W x 9.75" D x 12" H, sound level 20-44 dB
• PAC-LMA50BC: 5 ports, voltage 208/230V, dimensions 17-3/4" W x 11-1/16" D x 6-3/4" H
• PAC-LMA30BC: 3 ports, voltage 208/230V, dimensions 17-3/4" W x 11-1/16" D x 6-3/4" H
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B, oxygen-free copper material

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling for residential and commercial spaces. The outdoor unit connects seamlessly with the included wall-mounted air handlers, while the branch boxes and distribution kit ensure optimal refrigerant flow and temperature control across multiple indoor units.
