Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+9K+9K+18K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial environments. The Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit serves as the powerhouse of the system, capable of connecting to multiple indoor units for customized climate control. Complementing this outdoor unit are three wall-mounted air handlers (MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX18NL), each equipped with advanced features like built-in Wi-Fi and Triple Action Filtration for enhanced air quality. To ensure optimal refrigerant management, the bundle includes both the PAC-LMA30BC and PAC-LMA50BC branch boxes, which facilitate connections to multiple indoor units. This combination of components offers a versatile, high-performance HVAC solution tailored to meet diverse heating and cooling needs.

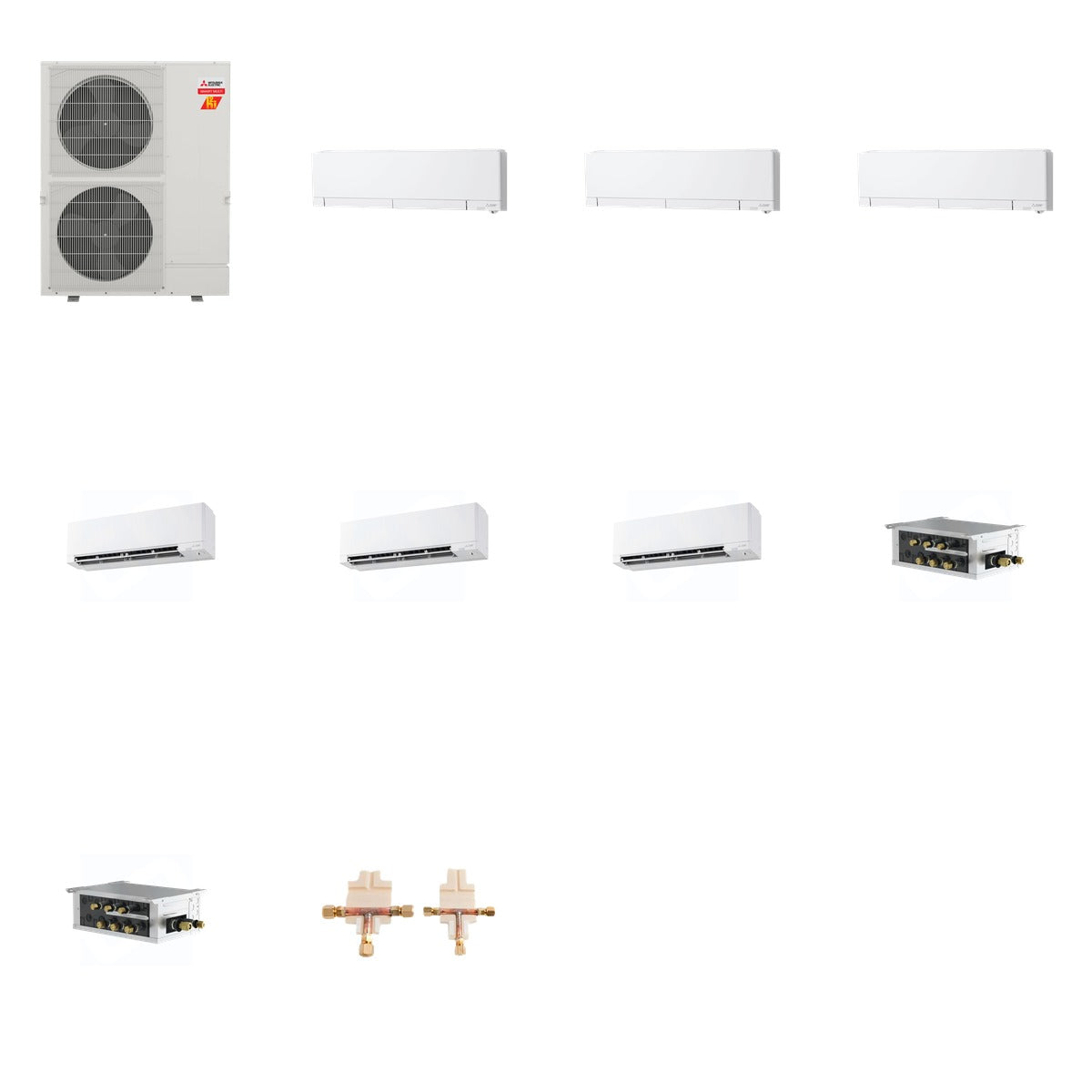

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX18NL - Mitsubishi Electric MSZ-FX18NL FX-Series Wall Mounted Unit 18k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 436.3 lb (Mitsubishi 225 lb + Mitsubishi 87 lb + Mitsubishi 72.8 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU Cooling Capacity, 66,000 BTU Heating Capacity, SEER2 up to 23
• MSZ-FX06NL: 6,000 BTU Cooling, 9,000 BTU Heating, SEER2 up to 35
• MSZ-FX09NL: 9,000 BTU Cooling, 12,000 BTU Heating, SEER2 up to 35
• MSZ-FX18NL: 18,000 BTU Cooling, 17,000 BTU Heating, SEER up to 25.5
• PAC-LMA50BC: 5 Ports, Voltage 208/230V, Phase 1
• PAC-LMA30BC: 3 Ports, Voltage 208/230V, Phase 1
• MSDD-50AR2-E: Flare Connection, Compatible with R-410A/R-454B

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, providing flexibility for various indoor environments. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, while the included branch boxes and distribution kit ensure efficient refrigerant flow and temperature control across all connected systems.
