Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+9K+9K+15K

Description

This comprehensive HVAC bundle includes everything you need for efficient heating and cooling in both residential and commercial settings. Featuring the Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, this system can support up to eight indoor units, providing customizable comfort across multiple zones. The included wall-mounted air handlers-MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX15NL-offer advanced filtration, quiet operation, and smart device control. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes ensure optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe kit simplifies installation. This bundle is designed for maximum efficiency and flexibility, making it an ideal solution for diverse climate control needs.

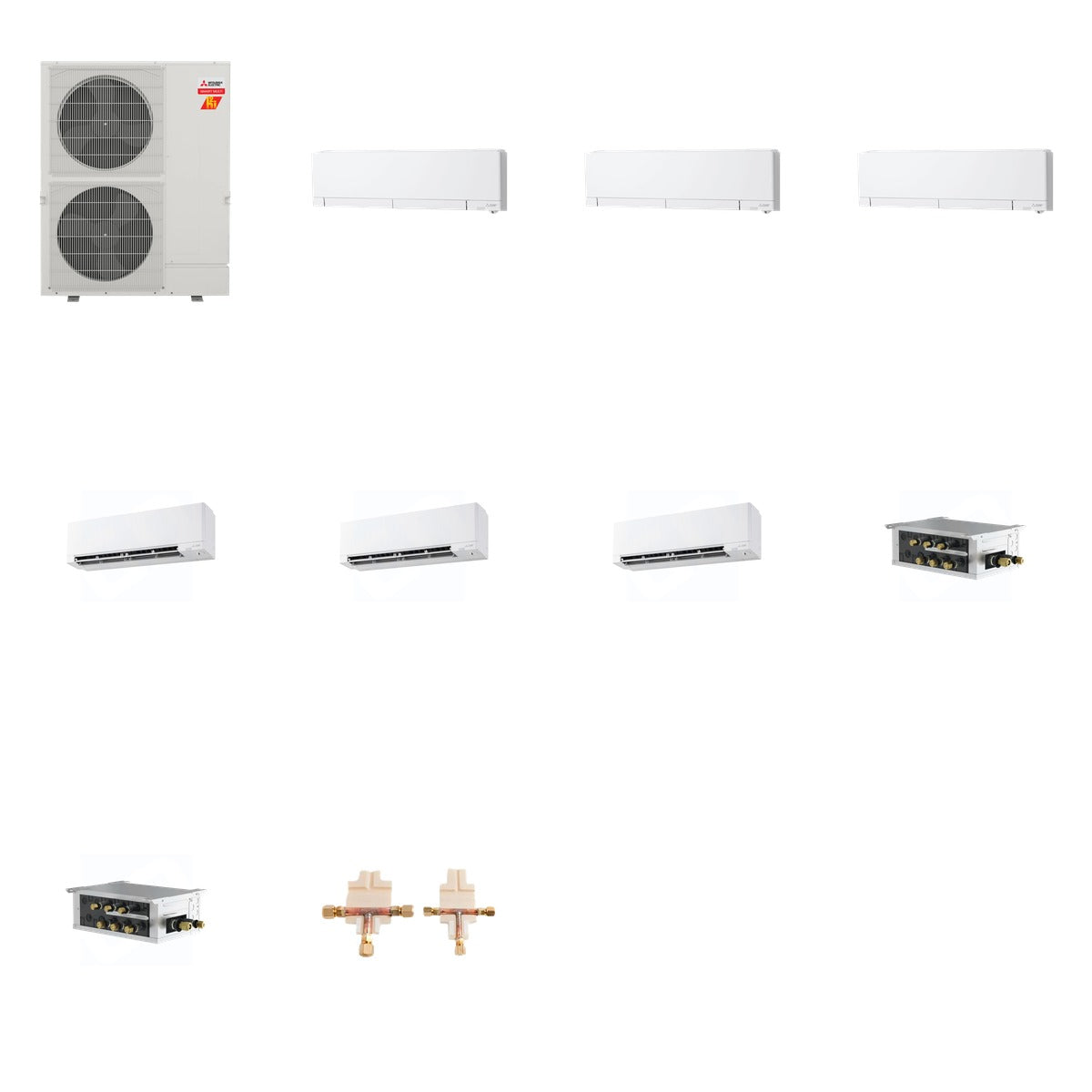

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - FX-Series Wall Mounted Unit 6k BTU (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX09NL - FX-Series Wall Mounted Unit 9k BTU (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX15NL - FX-Series Wall Mounted Unit 15k BTU (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)

Key Details

• Weight of Bundle: 436.3 lb (Mitsubishi 225 lb + Mitsubishi 87 lb + Mitsubishi 72.8 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton inverter condenser
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, minimum sound level 20 dB
• MSZ-FX09NL: 9,000 BTU, SEER2 up to 35, minimum sound level 20 dB
• MSZ-FX15NL: 15,000 BTU, SEER2 up to 20, sound level 49 dB
• PAC-LMA50BC: 5 ports, voltage 208/230V, phase 1
• PAC-LMA30BC: 3 ports, voltage 208/230V, phase 1
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling for various indoor environments. The outdoor unit connects seamlessly with the included wall-mounted air handlers, making it suitable for both residential and commercial applications. The branch boxes and distribution kit facilitate optimal refrigerant management, ensuring reliable performance across all connected units.
