Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+9K+9K+12K

Description

This comprehensive Mitsubishi Electric HVAC bundle is designed for optimal heating and cooling in both residential and commercial settings. Featuring a powerful MXZ-SM60NL multi-zone heat pump outdoor unit, this bundle includes multiple wall-mounted air handlers (MSZ-FX06NL, MSZ-FX09NL, MSZ-FX12NL) that provide efficient temperature control across various zones. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit ensures balanced performance. Together, these components create a versatile and energy-efficient climate control solution tailored to meet diverse needs.

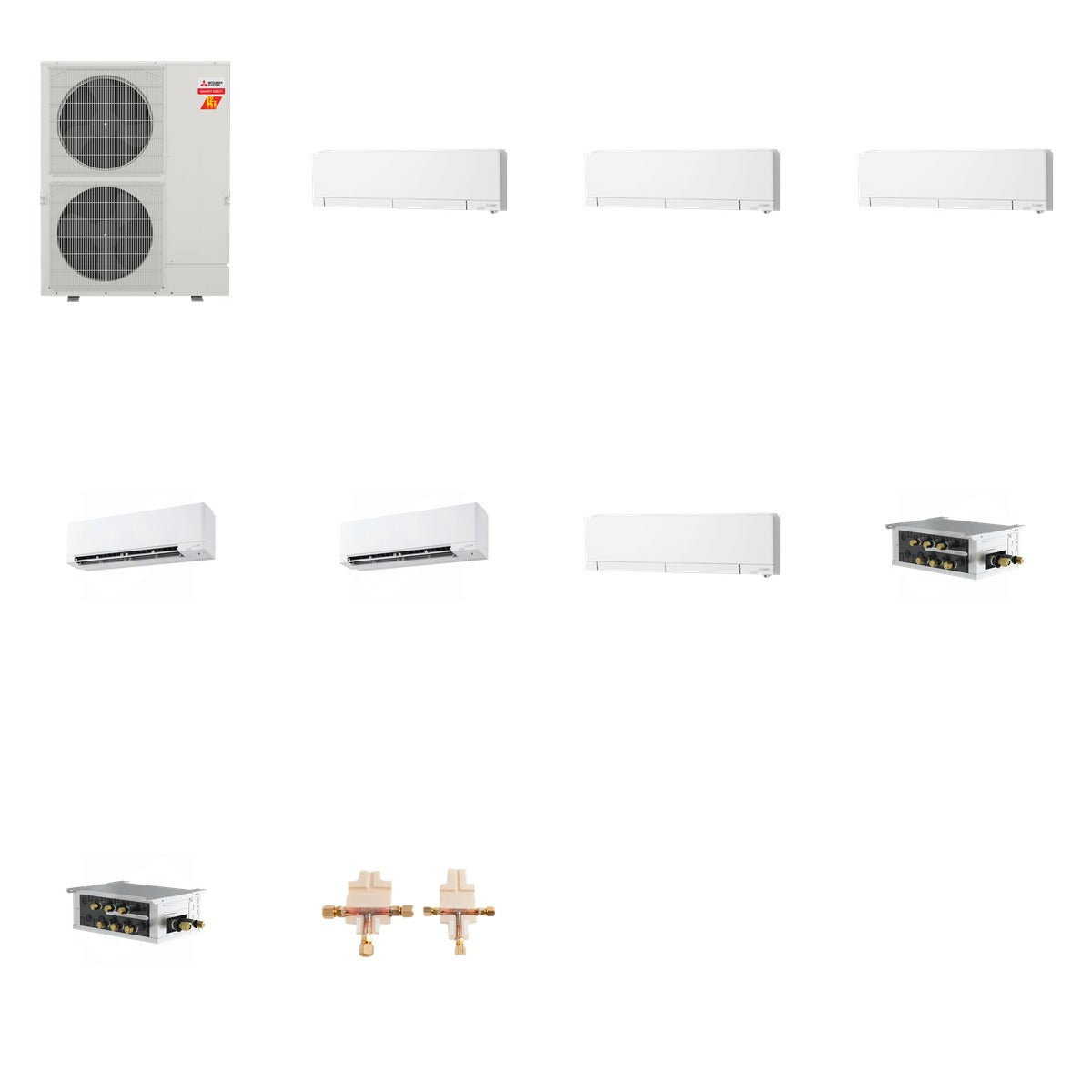

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX09NL - FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX12NL - FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 436.3 lb (Mitsubishi 225 lb + Mitsubishi 87 lb + Mitsubishi 72.8 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU cooling capacity, 66,000 BTU heating capacity, SEER2 up to 23
• MSZ-FX06NL: 6,000 BTU cooling, 9,000 BTU heating, SEER2 up to 35
• MSZ-FX09NL: 9,000 BTU cooling, 12,000 BTU heating, SEER2 up to 35
• MSZ-FX12NL: 12,000 BTU cooling, 13,200 BTU heating, SEER2 up to 35
• PAC-LMA50BC: 5 ports, compatible with MXZ model, 208/230V
• PAC-LMA30BC: 3 ports, compatible with R454B refrigerant, 208/230V
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R-410A/R-454B

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, providing flexibility and efficiency for various indoor environments. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, while the branch boxes and distribution kit ensure optimal refrigerant flow for up to eight indoor units, making it suitable for both residential and commercial HVAC systems.
