Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+9K+18K+18K

Description

This comprehensive HVAC bundle features a selection of high-performance Mitsubishi Electric products designed to provide efficient heating and cooling solutions for both residential and commercial spaces. The MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit serves as the backbone of this system, capable of connecting to multiple indoor units for customized comfort. The included MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX18NL wall-mounted air handlers offer flexibility and advanced features such as built-in Wi-Fi and superior air filtration. To ensure optimal refrigerant flow and system efficiency, the bundle also includes the PAC-LMA50BC and PAC-LMA30BC branch boxes, along with the MSDD-50AR2-E distribution kit. This combination of products guarantees a reliable and effective multi-zone climate control system.

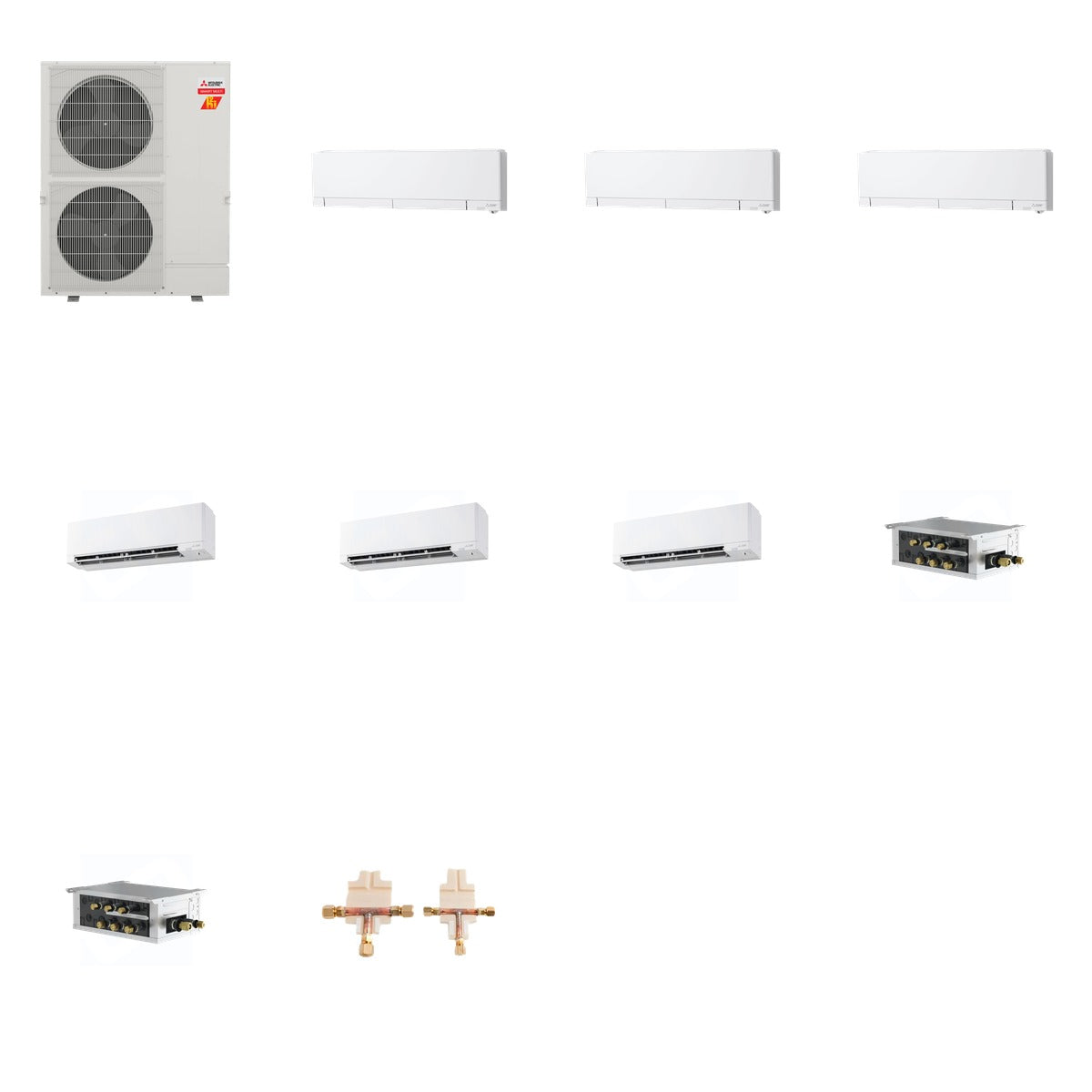

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - FX-Series Wall Mounted Unit 6k BTU (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX09NL - FX-Series Wall Mounted Unit 9k BTU (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX18NL - FX-Series Wall Mounted Unit 18k BTU (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)

Key Details

• Weight of Bundle: 436.3 lb (Mitsubishi 225 lb + Mitsubishi 87 lb + Mitsubishi 36.4 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton inverter condenser
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, minimum sound level 20 dB
• MSZ-FX09NL: 9,000 BTU, minimum sound level 20 dB
• MSZ-FX18NL: 18,000 BTU, SEER up to 25.5, minimum sound level 26 dB
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ outdoor units
• PAC-LMA30BC: 3 ports, 208/230V, ensures balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B refrigerants

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling across various indoor environments. The outdoor unit is compatible with M-Series and CITY MULTI indoor units, while the branch boxes and distribution kit ensure optimal refrigerant management and system performance.
