Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+6K+9K+18K

Description

This comprehensive Mitsubishi Electric HVAC bundle is designed for optimal heating and cooling across multiple zones, making it perfect for both residential and commercial applications. The centerpiece is the MXZ-SM60NL outdoor heat pump, which connects seamlessly to four wall-mounted air handlers (MSZ-FX06NL, MSZ-FX09NL, MSZ-FX18NL) for customized climate control in various spaces. Additionally, the bundle includes essential branch boxes (PAC-LMA50BC and PAC-LMA30BC) for efficient refrigerant distribution, along with a branch pipe distribution kit (MSDD-50AR2-E) to ensure balanced performance. Together, these components create a versatile and efficient multi-zone HVAC system that prioritizes comfort and energy savings.

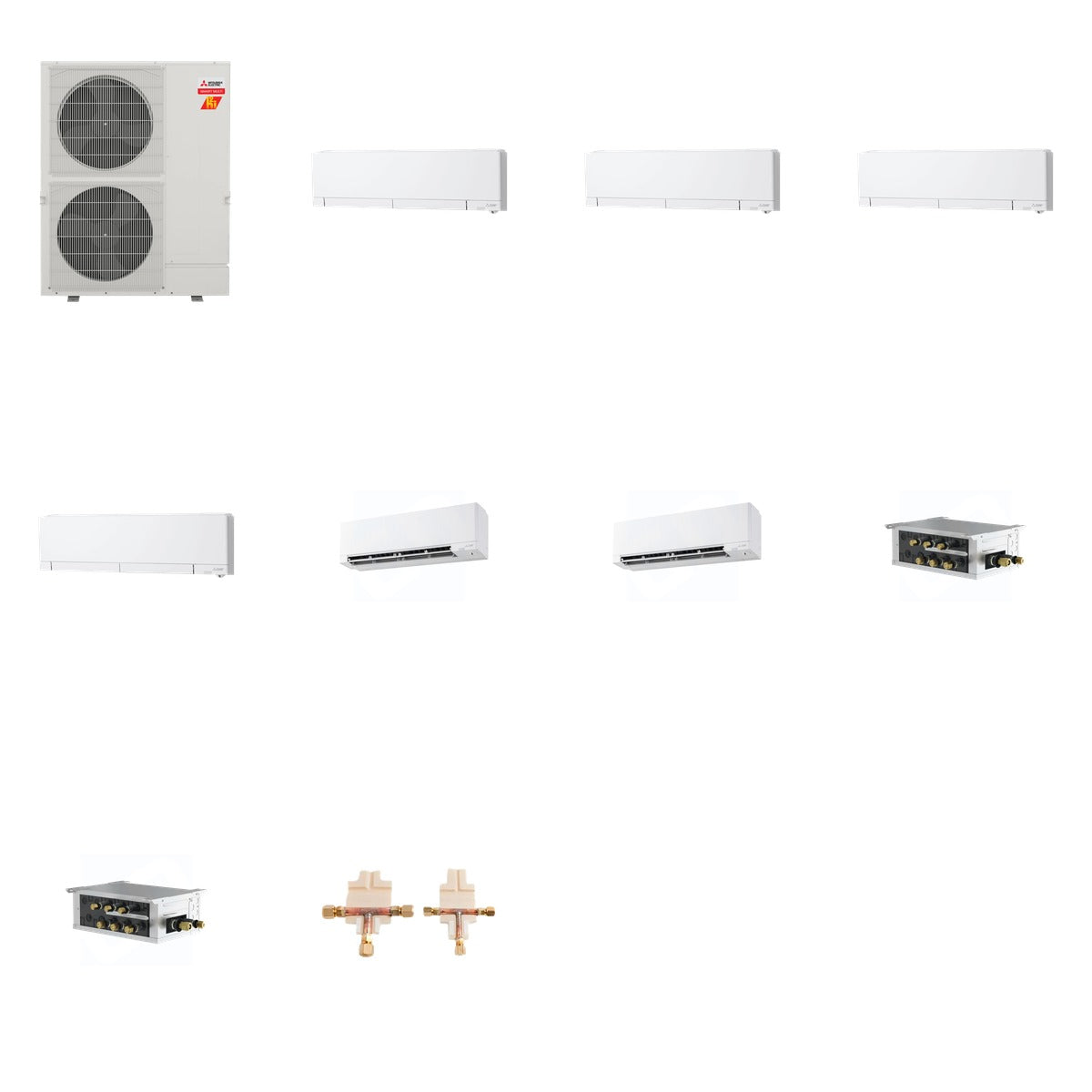

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX18NL - Mitsubishi Electric MSZ-FX18NL FX-Series Wall Mounted Unit 18k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 428.9 lb (Mitsubishi 225 lb + Mitsubishi 116 lb + Mitsubishi 36.4 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU Cooling, 66,000 BTU Heating, SEER2 up to 23
• MSZ-FX06NL: 6,000 BTU Cooling, 9,000 BTU Heating, SEER2 up to 35
• MSZ-FX09NL: 9,000 BTU Cooling, 12,000 BTU Heating, SEER2 up to 35
• MSZ-FX18NL: 18,000 BTU Cooling, 17,000 BTU Heating, SEER up to 25.5
• PAC-LMA50BC: 5 Ports, Voltage 208/230V
• PAC-LMA30BC: 3 Ports, Voltage 208/230V
• MSDD-50AR2-E: Flare Connection, Compatible with R-410A/R-454B

Use & Compatibility

This bundle is intended for use in multi-zone heating and cooling systems, compatible with Mitsubishi Electric's M-Series and CITY MULTI indoor units. It is ideal for applications where customized temperature control is desired across different areas, ensuring optimal comfort and energy efficiency.
