Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+6K+6K+6K

Description

This comprehensive HVAC bundle is designed for those looking to optimize their multi-zone heating and cooling systems. Featuring the Mitsubishi Electric MXZ-SM60NL outdoor unit, this package provides a powerful 60,000 BTU capacity, making it perfect for both residential and commercial applications. Paired with six MSZ-FX06NL wall-mounted air handlers, each delivering 6,000 BTUs, this setup ensures efficient temperature control across multiple zones. The inclusion of two branch boxes, the PAC-LMA50BC and PAC-LMA30BC, allows for effective refrigerant flow management, while the MSDD-50AR2-E branch pipe distribution kit guarantees seamless connections. Together, these components create a robust and efficient HVAC solution tailored for diverse environments.

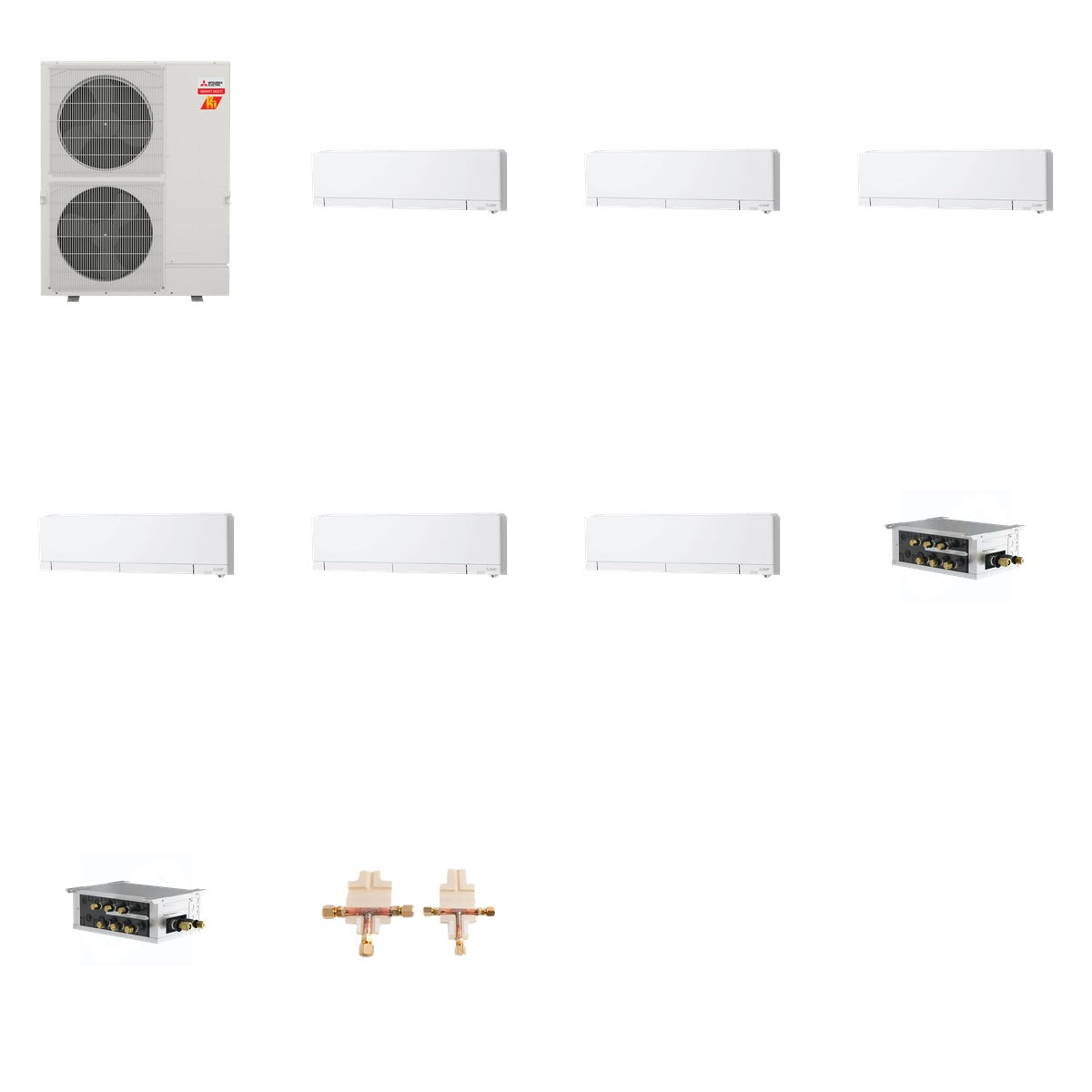

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x6)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 414.1 lb (Mitsubishi 225 lb + Mitsubishi 174 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Unit Capacity: 6,000 BTU (MSZ-FX06NL)
• SEER2 Rating: Up to 23 (MXZ-SM60NL), Up to 35 (MSZ-FX06NL)
• Voltage: 208/230 Volts (All units)
• Branch Box Ports: 5 (PAC-LMA50BC), 3 (PAC-LMA30BC)
• Material: Copper (MSDD-50AR2-E)
• Dimensions: Varies by component

Use & Compatibility

This bundle is ideal for multi-zone HVAC systems, providing efficient heating and cooling solutions for various spaces. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, while the branch boxes and distribution kit facilitate optimal refrigerant flow and connections, ensuring balanced performance across all indoor units.
