Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+6K+6K+12K

Description

This comprehensive bundle features essential components for creating an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, delivering up to 60,000 BTU of cooling and 66,000 BTU of heating, making it ideal for both residential and commercial applications. Paired with five MSZ-FX06NL and one MSZ-FX12NL wall-mounted air handlers, this setup ensures optimal comfort across various room sizes with advanced filtration and smart control capabilities. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant flow to multiple indoor units, while the MSDD-50AR2-E branch pipe distribution kit ensures balanced performance and easy installation. Together, these components create a robust and flexible HVAC solution tailored to meet diverse climate control needs.

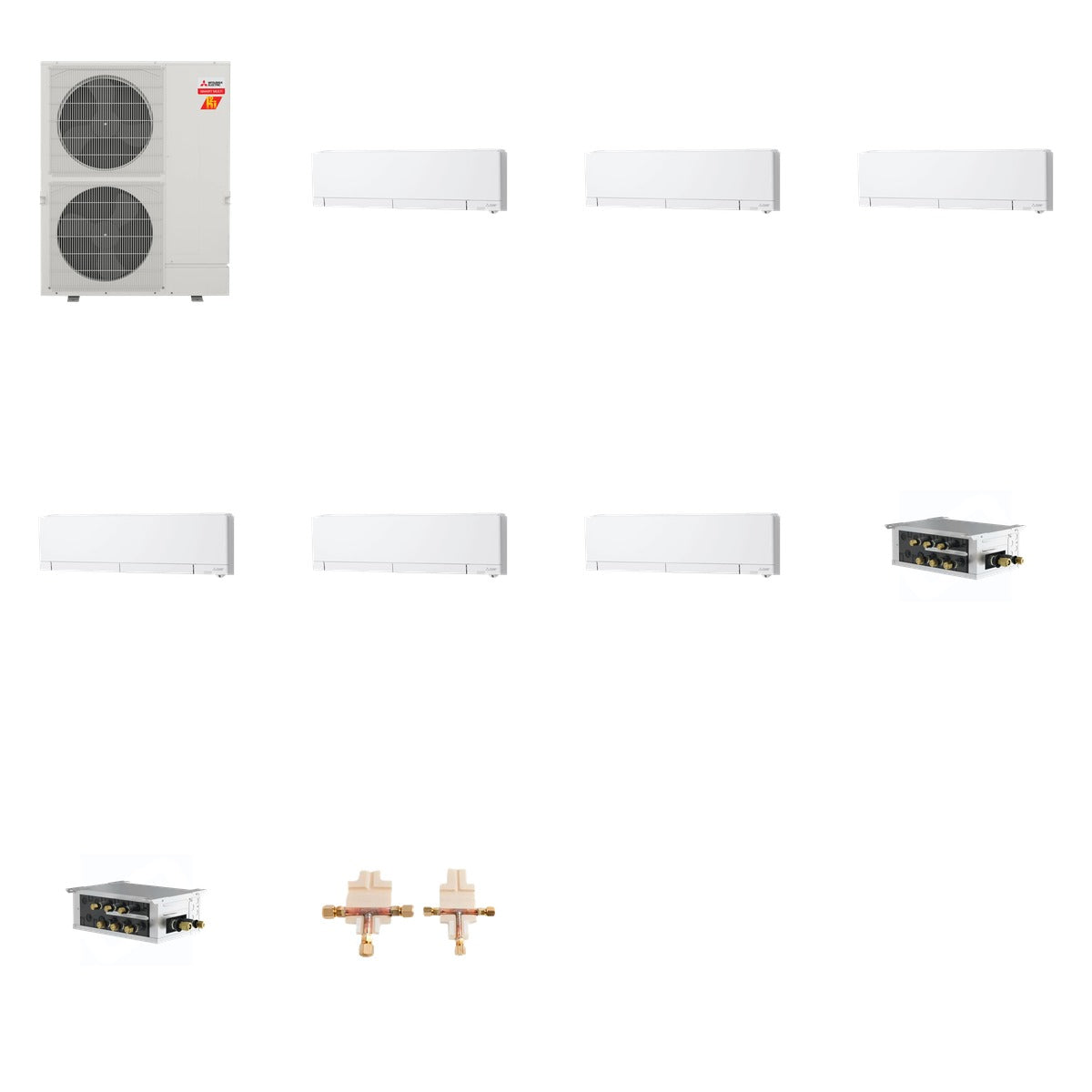

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x5)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 421.5 lb (Mitsubishi 225 lb + Mitsubishi 145 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Unit Cooling Capacity: 6,000 BTU (MSZ-FX06NL), 12,000 BTU (MSZ-FX12NL)
• SEER2: Up to 23 (MXZ-SM60NL), Up to 35 (MSZ-FX06NL & MSZ-FX12NL)
• Voltage: 208/230 Volts
• Dimensions: MXZ-SM60NL: 41-11/32" W x 13" D x 52-11/16" H; MSZ-FX06NL: 39.27" W x 9.75" D x 12" H; MSZ-FX12NL: 39.27" W x 9.75" D x 12" H
• Material: Copper (MSDD-50AR2-E), R454B refrigerant compatible

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing heating and cooling solutions for various indoor environments. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, while the branch boxes and distribution kit ensure efficient refrigerant management across multiple zones. Ideal for residential and commercial applications, this setup enhances comfort and energy efficiency.
