Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+6K+12K+15K

Description

This comprehensive Mitsubishi Electric HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial spaces. Featuring a powerful MXZ-SM60NL multi-zone outdoor unit, this bundle connects seamlessly with four advanced wall-mounted air handlers (MSZ-FX06NL, MSZ-FX12NL, and MSZ-FX15NL) to deliver customized climate control across multiple zones. The included PAC-LMA50BC and PAC-LMA30BC branch boxes ensure optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit enhances system performance. With this bundle, you can achieve superior comfort, energy efficiency, and versatility in your HVAC setup.

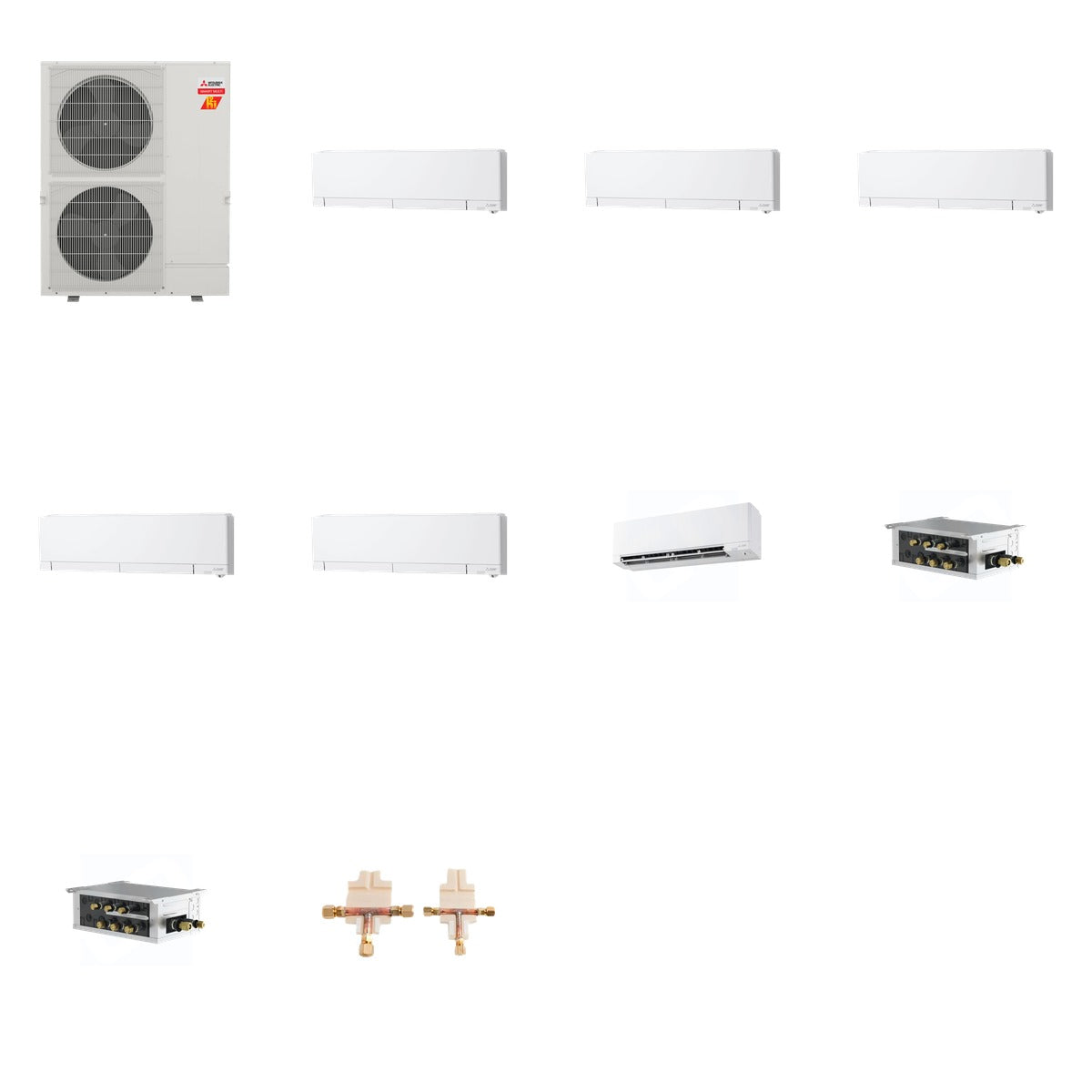

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 428.9 lb (Mitsubishi 225 lb + Mitsubishi 116 lb + Mitsubishi 36.4 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Units: 4 x 6,000 BTU, 12,000 BTU, 15,000 BTU
• SEER2 Rating: Up to 35 (MSZ-FX06NL, MSZ-FX12NL, MSZ-FX15NL)
• Refrigerant Type: R-454B
• Voltage: 208/230 Volts
• Branch Box Ports: 5 (PAC-LMA50BC), 3 (PAC-LMA30BC)
• Sound Level: As low as 20 dB (MSZ-FX06NL)

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, providing flexibility and efficiency for various indoor environments. The outdoor unit is compatible with multiple indoor air handlers, making it suitable for both residential and commercial HVAC systems. The branch boxes and distribution kit facilitate optimal refrigerant flow, ensuring consistent performance across all connected units.
