Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+15K+15K+15K

Description

This comprehensive HVAC bundle features essential components for creating an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump serves as the backbone, providing robust performance with a capacity of 60,000 BTU. Paired with three MSZ-FX06NL and three MSZ-FX15NL wall-mounted air handlers, this bundle ensures optimal comfort across various room sizes. The inclusion of two branch boxes, the PAC-LMA50BC and PAC-LMA30BC, facilitates seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit enhances installation efficiency. Together, these components deliver a powerful, flexible, and eco-friendly solution for both residential and commercial applications.

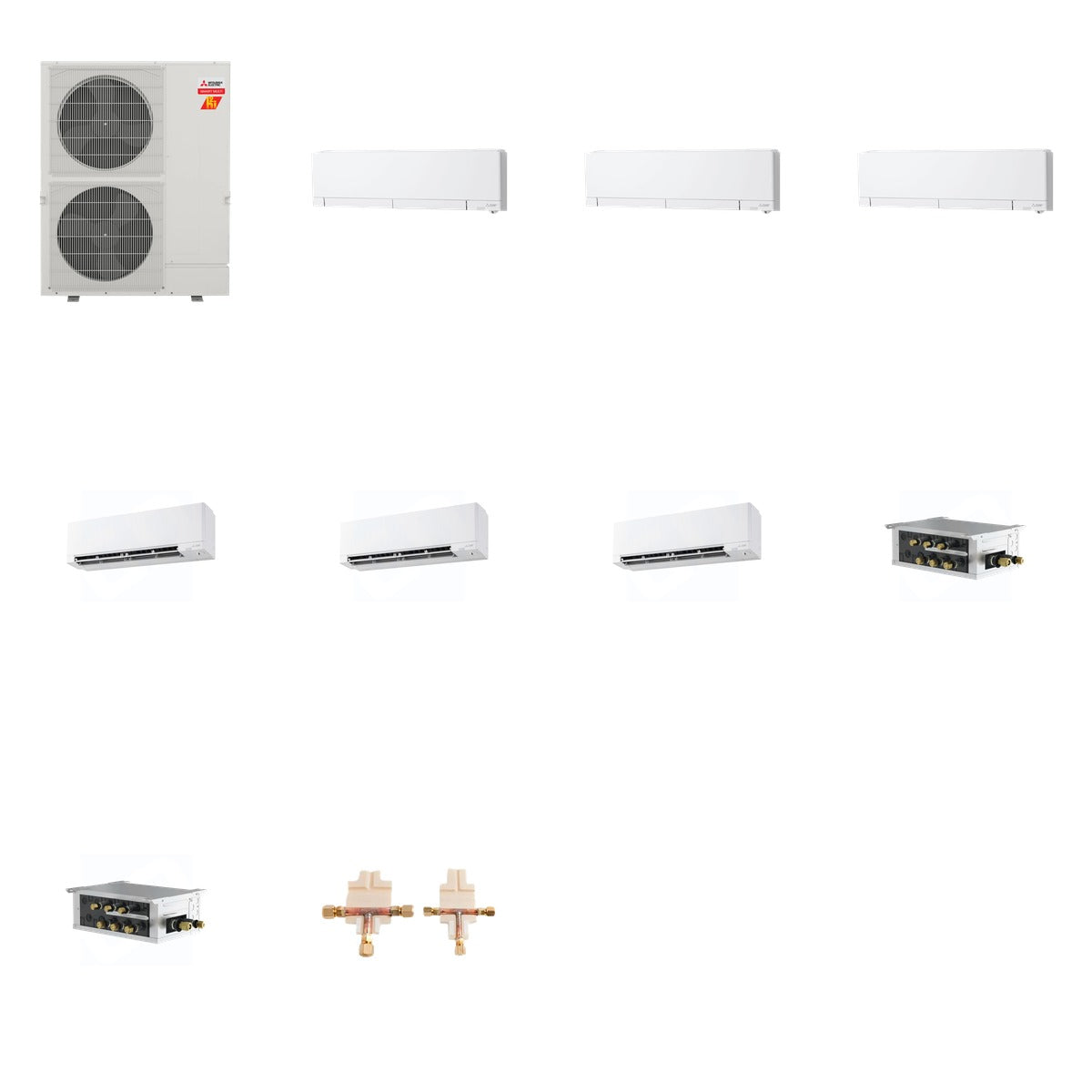

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 436.3 lb (Mitsubishi 225 lb + Mitsubishi 87 lb + Mitsubishi 109.2 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU Cooling, 66,000 BTU Heating, SEER2 up to 23
• MSZ-FX06NL: 6,000 BTU Cooling, 9,000 BTU Heating, SEER2 up to 35
• MSZ-FX15NL: 15,000 BTU Cooling, 18,000 BTU Heating, SEER2 up to 20
• PAC-LMA50BC: 5 ports, 208/230V, 60Hz
• PAC-LMA30BC: 3 ports, 208/230V, 60Hz
• MSDD-50AR2-E: Flare connection, Oxygen-Free Copper construction

Use & Compatibility

This bundle is designed for multi-zone heating and cooling applications, suitable for both residential and commercial environments. The outdoor unit connects to various indoor air handlers, allowing for customized climate control across multiple rooms. The branch boxes and distribution kit ensure efficient refrigerant flow, making this system compatible with Mitsubishi Electric's M-Series and CITY MULTI systems.
