Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+12K+15K+18K

Description

This comprehensive HVAC bundle features a selection of high-performance Mitsubishi Electric products designed to create an efficient and customizable multi-zone heating and cooling system. The MXZ-SM60NL outdoor unit serves as the powerhouse, capable of connecting to multiple indoor air handlers, including the MSZ-FX06NL, MSZ-FX12NL, MSZ-FX15NL, and MSZ-FX18NL, each offering unique capacities and advanced features for optimal comfort. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit ensures efficient flow management. Together, these components provide a reliable solution for both residential and commercial applications, enhancing indoor air quality and energy efficiency.

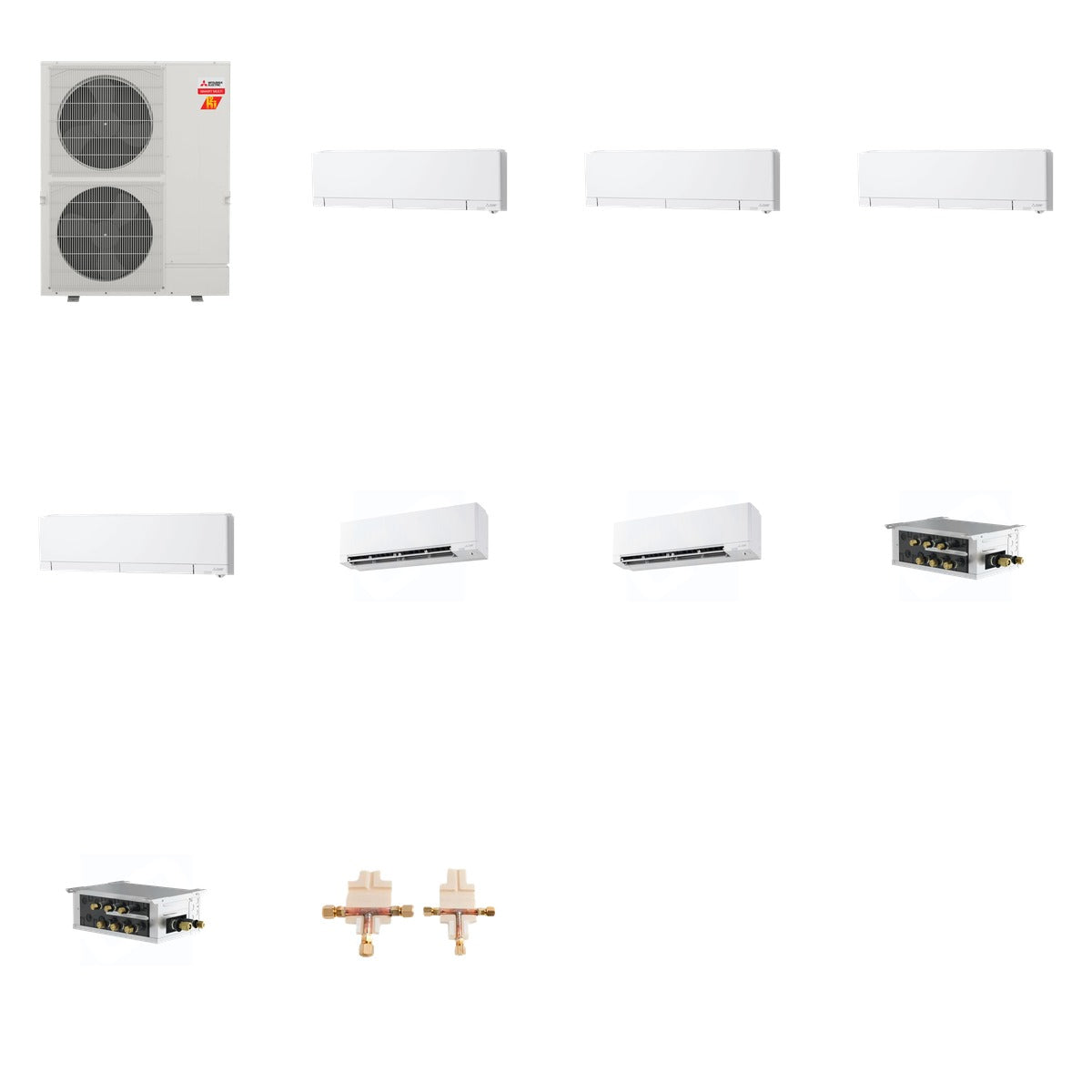

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX18NL - Mitsubishi Electric MSZ-FX18NL FX-Series Wall Mounted Unit 18k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 436.3 lb (Mitsubishi 225 lb + Mitsubishi 87 lb + Mitsubishi 36.4 lb + Mitsubishi 36.4 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU Cooling Capacity, 66,000 BTU Heating Capacity, SEER2 up to 23, 5-Ton Inverter Condenser
• MSZ-FX06NL: 6,000 BTU Cooling, 9,000 BTU Heating, SEER2 up to 35, 20 dB Minimum Sound Level
• MSZ-FX12NL: 12,000 BTU Cooling, 13,200 BTU Heating, SEER2 up to 35, 20 dB Minimum Sound Level
• MSZ-FX15NL: 15,000 BTU Cooling, 18,000 BTU Heating, SEER2 up to 20, 49 dB Maximum Sound Level
• MSZ-FX18NL: 18,000 BTU Cooling, 17,000 BTU Heating, SEER2 up to 25.5, 26 dB Minimum Sound Level
• PAC-LMA50BC: 5 Ports, 208/230 Volts, Compatible with MXZ outdoor units
• PAC-LMA30BC: 3 Ports, 208/230 Volts, Compatible with R454B refrigerant
• MSDD-50AR2-E: Flare Connection, Oxygen-Free Copper, Compatible with R-410A/R-454B

Use & Compatibility

This bundle is ideal for creating a multi-zone HVAC system suitable for both residential and commercial applications. The outdoor unit is compatible with various Mitsubishi Electric indoor units, allowing for tailored heating and cooling solutions across different spaces. The branch boxes and distribution kit ensure efficient refrigerant management, making this bundle a comprehensive choice for enhancing indoor climate control.
