Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+12K+12K+18K

Description

This comprehensive HVAC bundle features a selection of high-efficiency Mitsubishi Electric products designed to provide optimal heating and cooling solutions for both residential and commercial settings. The MXZ-SM60NL outdoor unit serves as the powerhouse, supporting multiple indoor units for customized climate control. The included MSZ-FX series wall-mounted air handlers (6k, 12k, 18k BTU) ensure quiet operation and advanced filtration, making them perfect for any room. Additionally, the branch boxes facilitate seamless refrigerant distribution, ensuring efficient performance across all connected units. Together, these components create a versatile and efficient multi-zone system tailored to meet diverse heating and cooling needs.

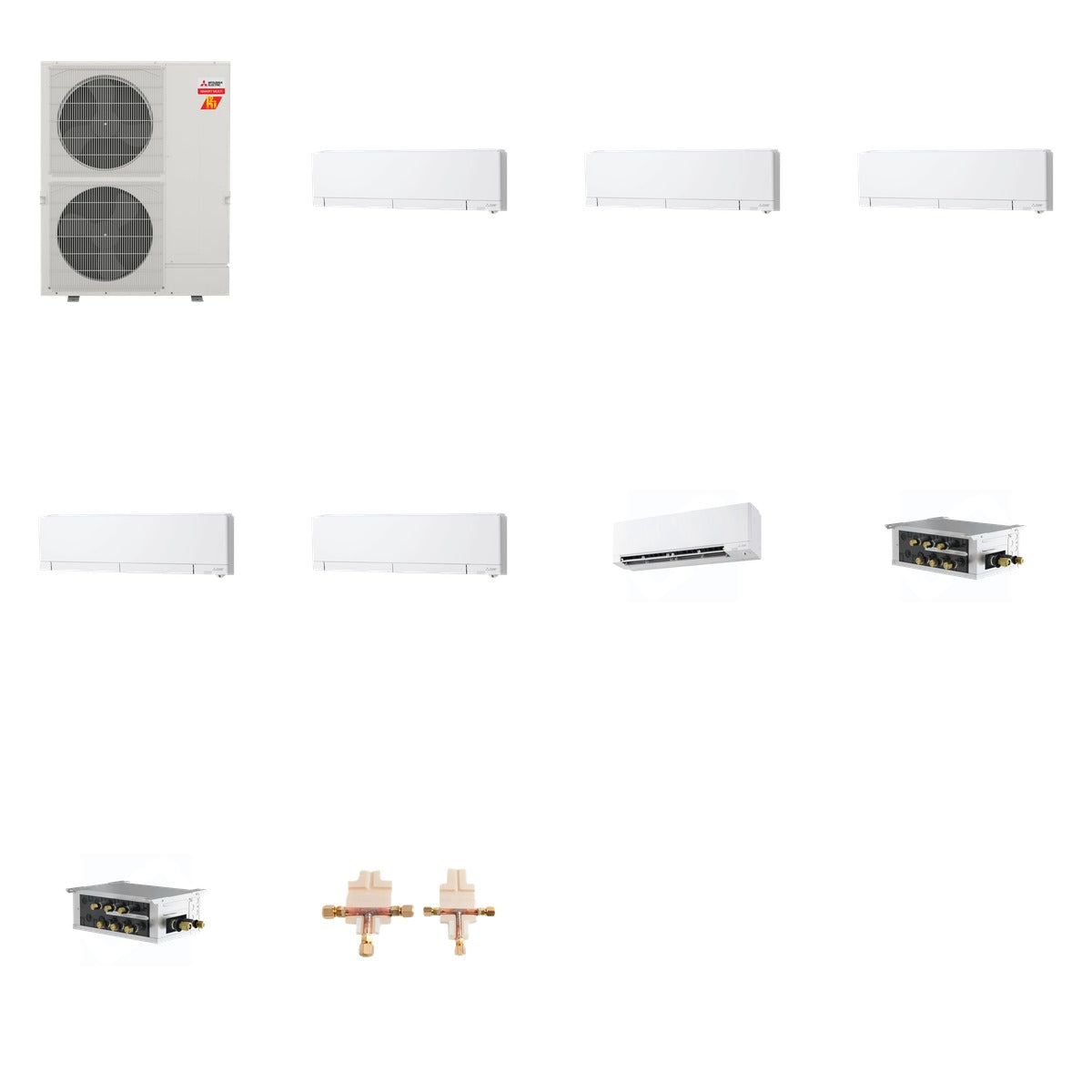

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX18NL - Mitsubishi Electric MSZ-FX18NL FX-Series Wall Mounted Unit 18k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 436.3 lb (Mitsubishi 225 lb + Mitsubishi 87 lb + Mitsubishi 72.8 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton inverter condenser
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, 208/230V, 20-42 dB(A)
• MSZ-FX12NL: 12,000 BTU, SEER2 up to 35, 208/230V, 20-44 dB(A)
• MSZ-FX18NL: 18,000 BTU, SEER up to 25.5, 208/230V, 26-46 dB(A)
• PAC-LMA50BC: 5 ports, 208/230V, 1 phase
• PAC-LMA30BC: 3 ports, 208/230V, 1 phase
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B

Use & Compatibility

This bundle is ideal for creating a multi-zone HVAC system, allowing for customized heating and cooling in various spaces. The outdoor unit is compatible with M-Series and CITY MULTI indoor units, while the wall-mounted air handlers are designed for seamless integration in both single-zone and multi-zone configurations. The branch boxes and distribution kit ensure efficient refrigerant management, making this bundle perfect for both residential and commercial applications.
