Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+12K+12K+12K

Description

This comprehensive HVAC bundle is designed to provide optimal heating and cooling solutions for both residential and commercial spaces. Featuring the Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, this bundle includes three wall-mounted air handlers (MSZ-FX06NL and MSZ-FX12NL) that ensure efficient climate control across multiple zones. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit ensures balanced performance. Together, these components create a versatile and efficient multi-zone system tailored to meet diverse heating and cooling needs.

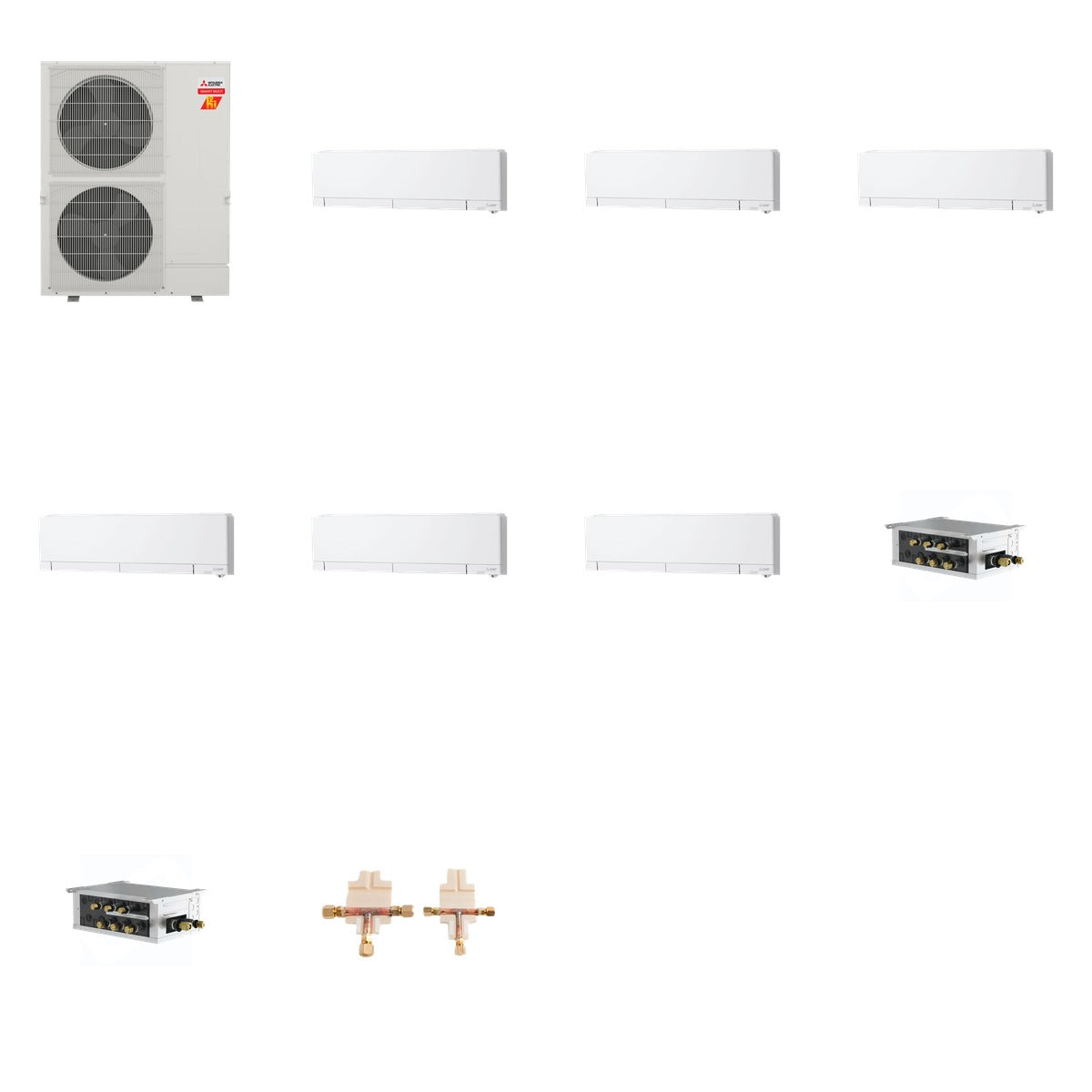

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX12NL - FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 436.3 lb (Mitsubishi 225 lb + Mitsubishi 87 lb + Mitsubishi 109.2 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• SEER2: Up to 23 (MXZ-SM60NL)
• Cooling BTU: 6,000 (MSZ-FX06NL), 12,000 (MSZ-FX12NL)
• Voltage: 208/230 Volts (all units)
• Material: Copper with thermal insulation (MSDD-50AR2-E)
• Dimensions: Varies by unit; MXZ-SM60NL - 41-11/32" W x 13" D x 52-11/16" H
• Sound Level: As low as 20 dB (MSZ-FX06NL)

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling for various indoor environments. It is compatible with M-Series, P-Series, and CITY MULTI indoor units, making it suitable for both residential and commercial applications. The included branch boxes and distribution kit enhance refrigerant management, ensuring optimal performance across all connected units.
