Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+15K+15K+15K+15K

Description

This comprehensive HVAC bundle includes essential components for setting up a multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump provides robust performance with a 60,000 BTU capacity, while the MSZ-FX06NL and MSZ-FX15NL wall-mounted air handlers deliver efficient heating and cooling for various room sizes. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant distribution to multiple indoor units, ensuring balanced temperatures throughout your space. Additionally, the MSDD-50AR2-E branch pipe distribution kit enhances system efficiency, making this bundle ideal for both residential and commercial applications.

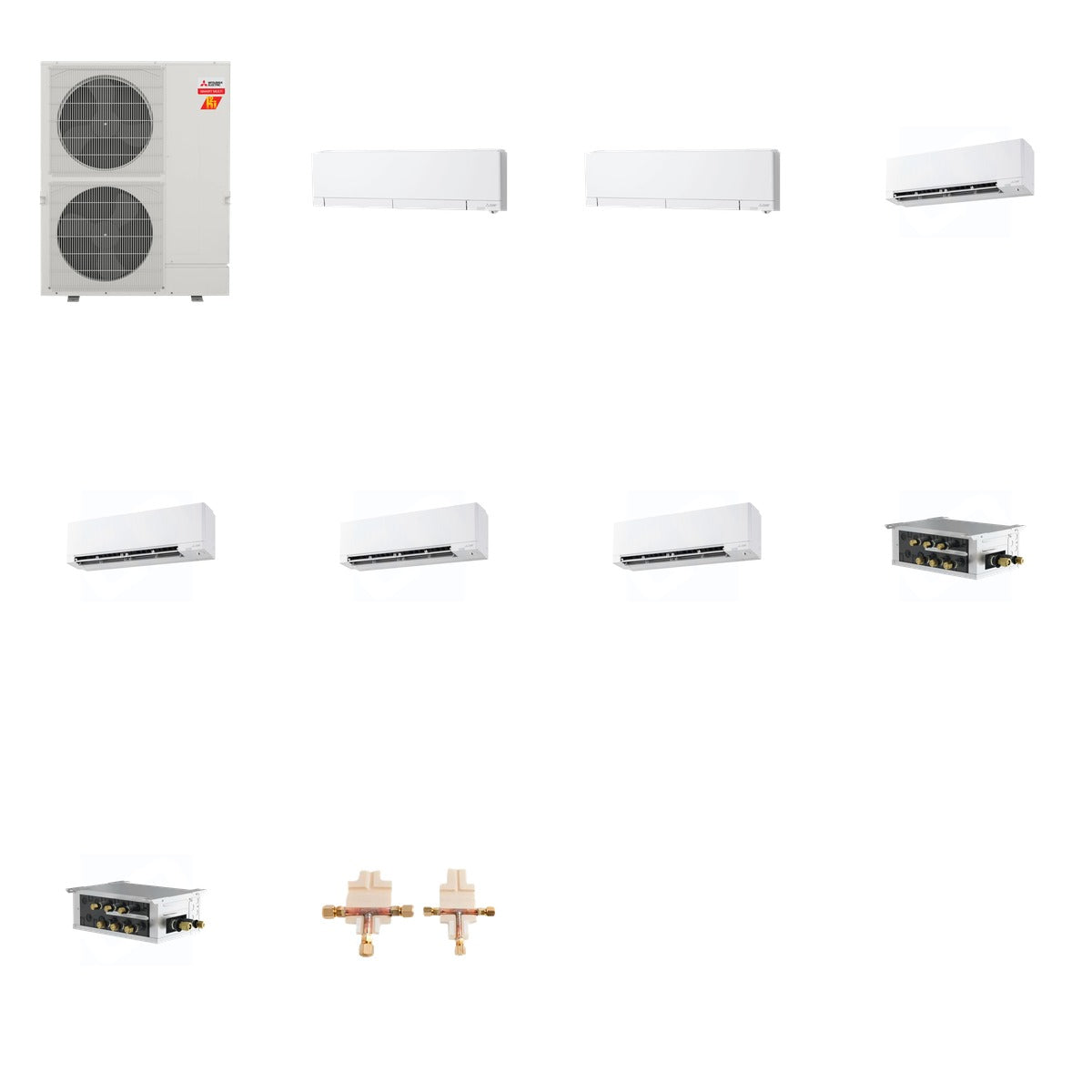

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x4)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 443.7 lb (Mitsubishi 225 lb + Mitsubishi 58 lb + Mitsubishi 145.6 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• SEER2 Rating: Up to 23 (MXZ-SM60NL)
• Indoor Unit Cooling Capacity: 6,000 BTU (MSZ-FX06NL), 15,000 BTU (MSZ-FX15NL)
• Voltage: 208/230V
• Material: Copper (MSDD-50AR2-E)
• Dimensions: Varies by unit
• Sound Level: As low as 20 dB(A) (MSZ-FX06NL)

Use & Compatibility

This bundle is designed for use in both residential and commercial HVAC systems, providing efficient heating and cooling solutions. The components are compatible with Mitsubishi Electric's M-Series and CITY MULTI indoor units, making it ideal for multi-zone applications where customized comfort is essential.
