Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+12K+15K+15K+15K

Description

This comprehensive bundle features a selection of high-performance Mitsubishi Electric HVAC components designed to create an efficient multi-zone heating and cooling system. The MXZ-SM60NL outdoor unit serves as the powerhouse, capable of connecting to multiple indoor units, ensuring optimal comfort across various spaces. The included MSZ-FX06NL, MSZ-FX12NL, and MSZ-FX15NL wall-mounted air handlers provide versatile heating and cooling options with advanced features, including smart control and superior filtration. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit ensures reliable connections. Together, these components deliver a tailored climate solution for both residential and commercial applications.

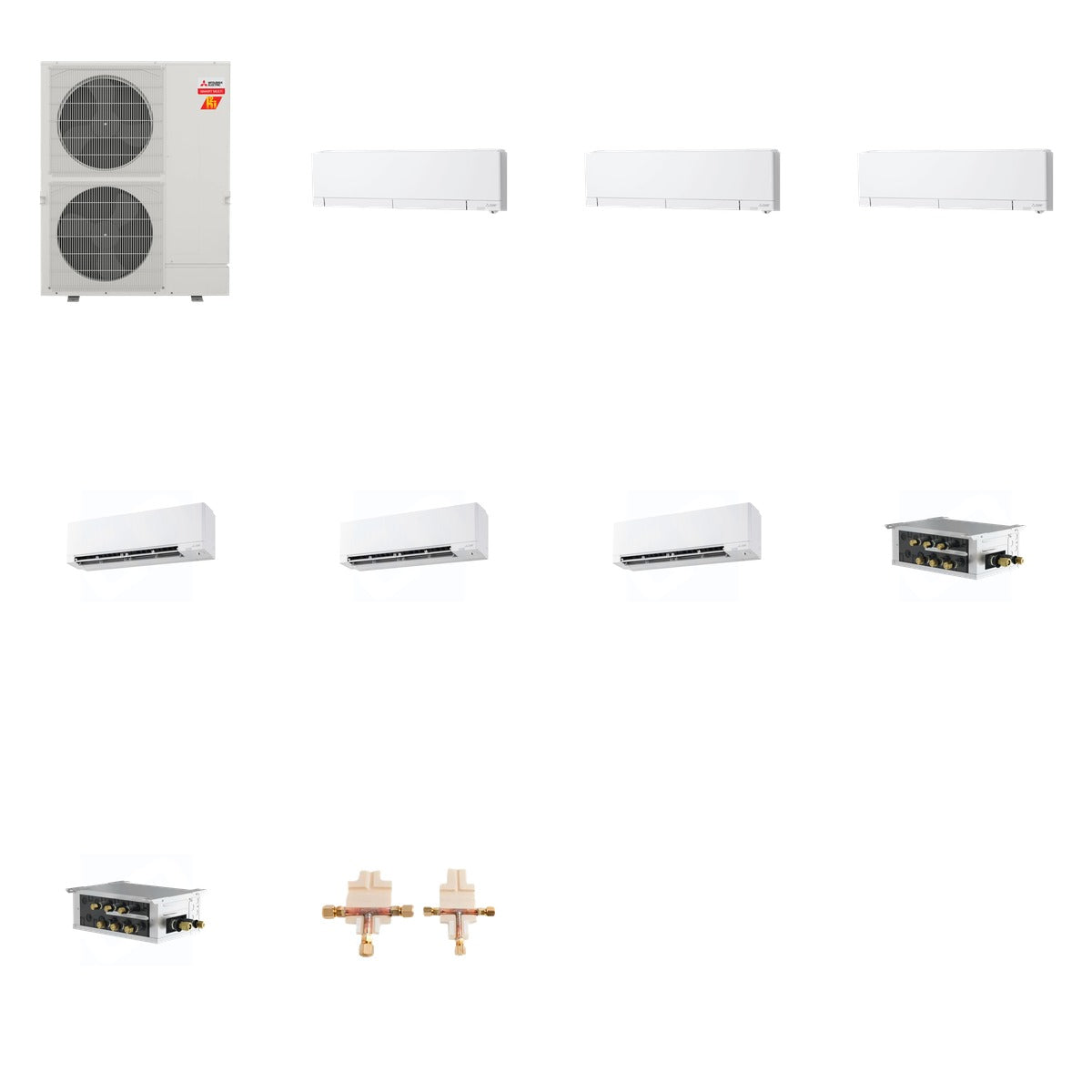

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 443.7 lb (Mitsubishi 225 lb + Mitsubishi 58 lb + Mitsubishi 36.4 lb + Mitsubishi 109.2 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-Ton capacity, R454B refrigerant
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, 208/230V, 20-42 dB(A) noise level
• MSZ-FX12NL: 12,000 BTU, SEER2 up to 35, 208/230V, 20-44 dB(A) noise level
• MSZ-FX15NL: 15,000 BTU, SEER2 up to 20, 208/230V, 26-49 dB(A) noise level
• PAC-LMA50BC: 5 ports, 208/230V, 60Hz
• PAC-LMA30BC: 3 ports, 208/230V, 60Hz
• MSDD-50AR2-E: Flare connection, R-410A/R-454B compatibility

Use & Compatibility

This bundle is ideal for creating a multi-zone heating and cooling system in residential or commercial settings. The outdoor unit can connect with various indoor air handlers, allowing for customized climate control across different areas. The branch boxes and distribution kit ensure efficient refrigerant flow, making this setup compatible with Mitsubishi Electric's M-Series and CITY MULTI systems.
