Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+12K+12K+12K+15K+15K

Description

This comprehensive HVAC bundle features top-of-the-line Mitsubishi Electric products designed to provide efficient heating and cooling solutions for both residential and commercial applications. The centerpiece is the MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, which offers exceptional flexibility by connecting to multiple indoor units. Complementing this are three wall-mounted air handlers (MSZ-FX06NL, MSZ-FX12NL, and MSZ-FX15NL) that cater to various room sizes and comfort needs. Additionally, the bundle includes essential branch boxes (PAC-LMA50BC and PAC-LMA30BC) for optimal refrigerant flow management, along with the MSDD-50AR2-E branch pipe kit to ensure seamless installation and performance. Together, these components create a powerful and versatile HVAC system that meets the demands of modern climate control.

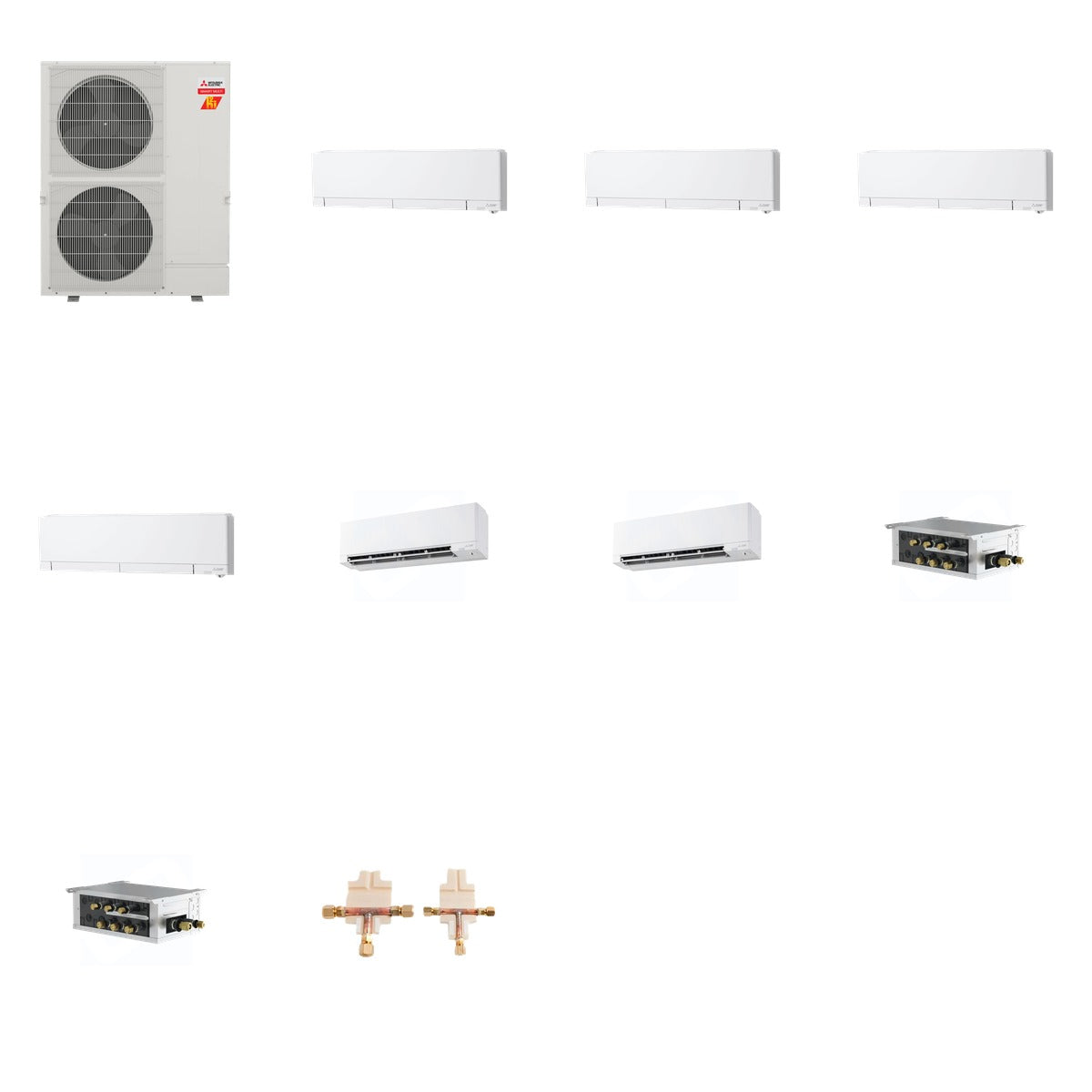

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 451.1 lb (Mitsubishi 225 lb + Mitsubishi 29 lb + Mitsubishi 109.2 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM60NL: 60,000 BTU cooling, 66,000 BTU heating, SEER2 up to 23
• MSZ-FX06NL: 6,000 BTU cooling, 9,000 BTU heating, SEER2 up to 35
• MSZ-FX12NL: 12,000 BTU cooling, 13,200 BTU heating, SEER2 up to 35
• MSZ-FX15NL: 15,000 BTU cooling, 18,000 BTU heating, SEER2 up to 20
• PAC-LMA50BC: 5 ports, compatible with MXZ model, 208/230V
• PAC-LMA30BC: 3 ports, compatible with R454B refrigerant, 208/230V
• MSDD-50AR2-E: Flare connection, compatible with R-410A and R-454B

Use & Compatibility

This bundle is ideal for creating a multi-zone heating and cooling system, perfect for both residential and commercial spaces. The outdoor unit is compatible with various indoor units, allowing for tailored climate control in different rooms. The branch boxes and distribution kit ensure efficient refrigerant management, making installation straightforward and effective.
