Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+12K+12K+12K+12K+15K

Description

This comprehensive HVAC bundle includes essential components designed to work seamlessly together, ensuring efficient heating and cooling for both residential and commercial applications. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump unit serves as the backbone of this system, providing powerful multi-zone capabilities with a capacity of 60,000 BTU. Paired with four advanced wall-mounted air handlers (MSZ-FX06NL, MSZ-FX12NL, MSZ-FX15NL), this bundle offers versatile climate control options tailored to various room sizes and layouts. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant flow, while the MSDD-50AR2-E branch pipe kit ensures efficient distribution to multiple indoor units. Together, these components create a reliable and energy-efficient solution for all your heating and cooling needs.

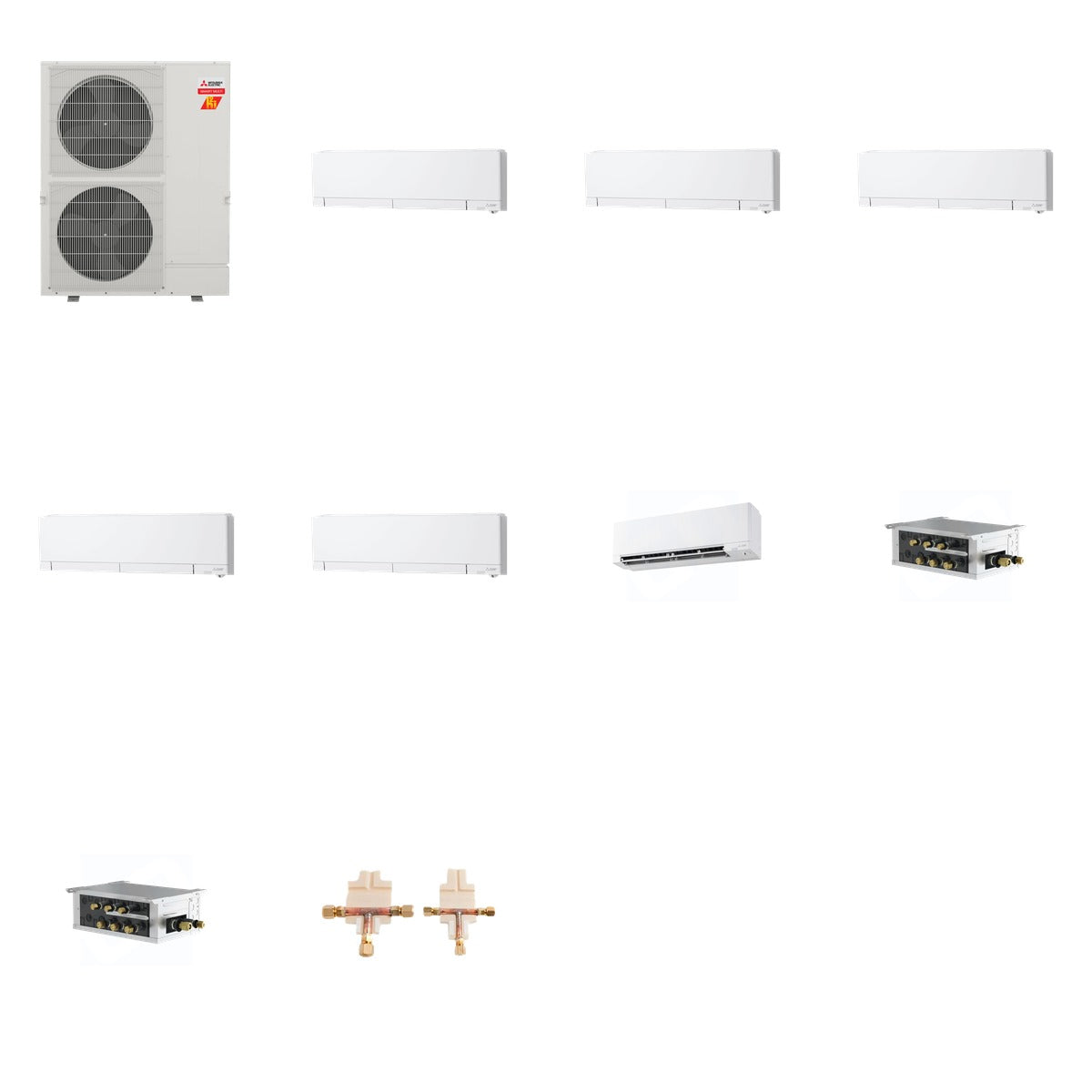

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 451.1 lb (Mitsubishi 225 lb + Mitsubishi 29 lb + Mitsubishi 145.6 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Wall Mounted Unit Capacities: 6,000 BTU (MSZ-FX06NL), 12,000 BTU (MSZ-FX12NL), 15,000 BTU (MSZ-FX15NL)
• SEER2 Ratings: Up to 23 (MXZ-SM60NL), Up to 35 (MSZ-FX06NL/MSZ-FX12NL/MSZ-FX15NL)
• Refrigerant Type: R-454B
• Voltage: 208/230 Volts
• Dimensions (MXZ-SM60NL): 41-11/32 in W x 13 in D x 52-11/16 in H
• Sound Level: As low as 20 dB(A) (MSZ-FX06NL)

Use & Compatibility

This bundle is designed for use in both residential and commercial HVAC systems, providing efficient heating and cooling solutions across multiple zones. The MXZ-SM60NL outdoor unit is compatible with various M-Series and CITY MULTI indoor units, allowing for flexible installation options. The included branch boxes and distribution kit ensure balanced refrigerant flow, making this system ideal for diverse applications and room configurations.
