Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 12K+12K+12K+12K+15K+15K

Description

This comprehensive HVAC bundle features the Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, paired with three advanced wall-mounted air handlers (MSZ-FX12NL and MSZ-FX15NL) and two essential branch boxes (PAC-LMA50BC and PAC-LMA30BC). This combination provides an efficient heating and cooling solution for both residential and commercial applications, allowing for customized climate control across multiple zones. The included distribution kit (MSDD-50AR2-E) ensures balanced refrigerant flow, enhancing system performance and longevity. With high SEER ratings and advanced filtration, this bundle not only meets but exceeds modern efficiency standards, making it an excellent choice for environmentally conscious consumers.

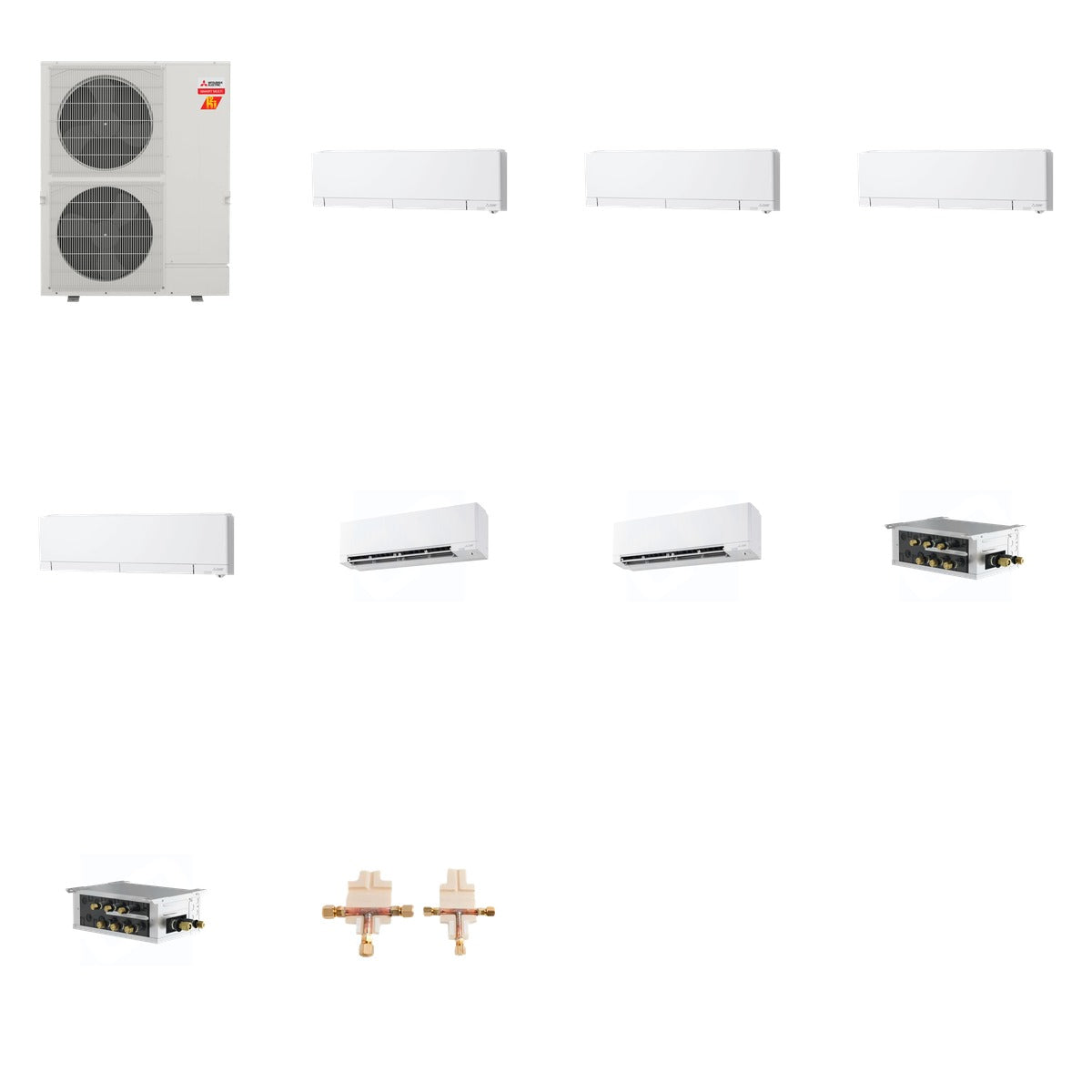

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX12NL - FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-FX15NL - FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 458.5 lb (Mitsubishi 225 lb + Mitsubishi 145.6 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• SEER2 Rating: Up to 23 (MXZ-SM60NL)
• Cooling BTU: 12,000 (MSZ-FX12NL), 15,000 (MSZ-FX15NL)
• Heating BTU: 13,200 (MSZ-FX12NL), 18,000 (MSZ-FX15NL)
• Voltage: 208/230V
• Material: Copper with insulation (MSDD-50AR2-E)
• Dimensions (MSZ-FX12NL): 39.27 in W x 9.75 in D x 12 in H
• Dimensions (MSZ-FX15NL): 39-9/32 in W x 9-3/4 in D x 12 in H

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling across various indoor spaces. The outdoor unit connects seamlessly with the included wall-mounted air handlers, while the branch boxes facilitate optimal refrigerant distribution. Compatible with R-454B refrigerant, this system meets modern environmental standards and is ideal for both residential and commercial applications.
