Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone 3'x3' Ceiling Cassette Mini Split Heat Pump System - 12K+12K+12K+12K+12K+18K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial environments. Featuring a powerful Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, this package allows for flexible climate control across multiple zones. The included PLA-AE12NL and PLA-AE18NL ceiling cassette air handlers deliver discreet, high-performance air distribution, while the PAC-LMA50BC and PAC-LMA30BC branch boxes ensure optimal refrigerant flow to connected indoor units. Completing the bundle, the MSDD-50AR2-E branch pipe distribution kit and PLP-41EAEU ceiling grille enhance installation efficiency and system performance, making this an ideal choice for anyone looking to upgrade their HVAC system.

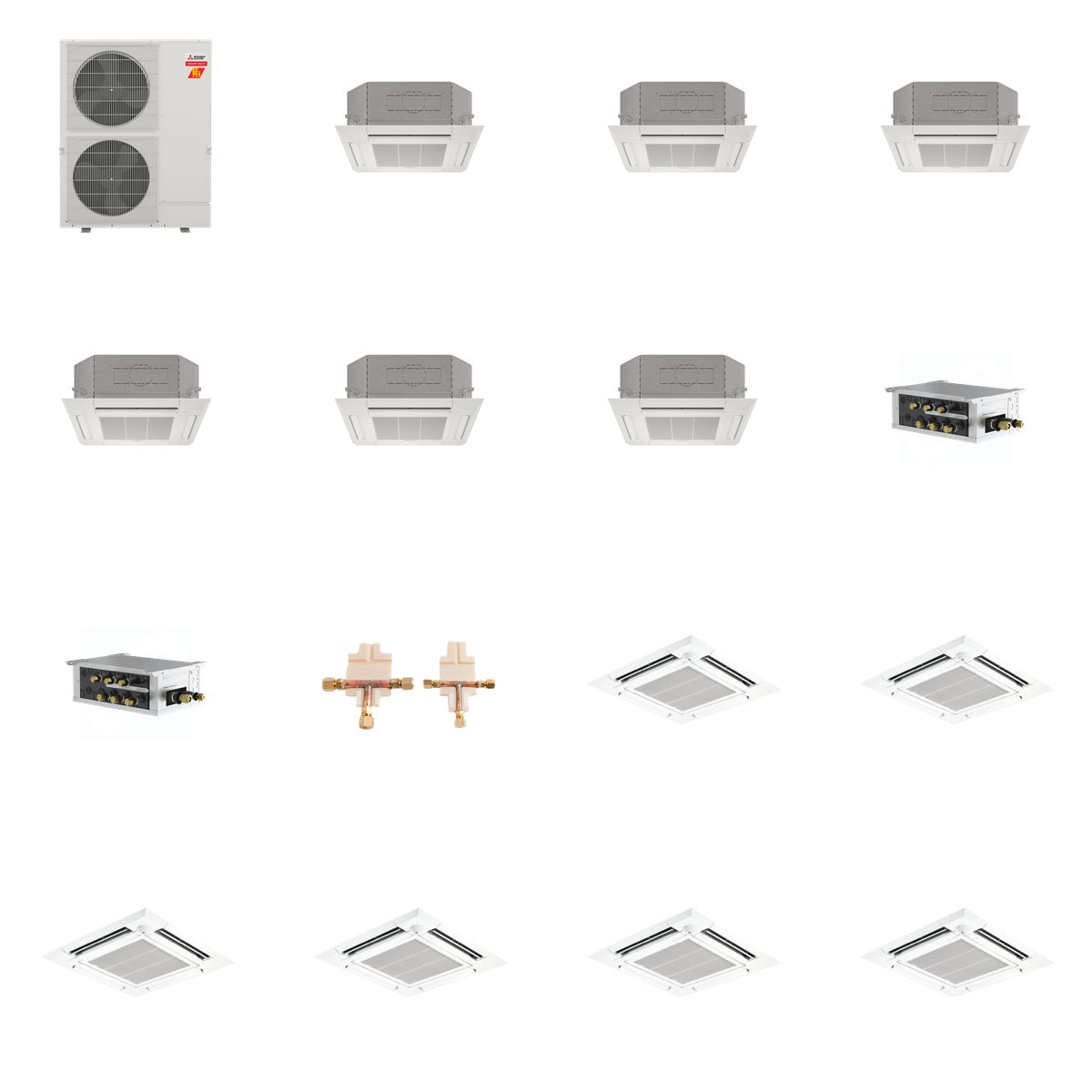

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)

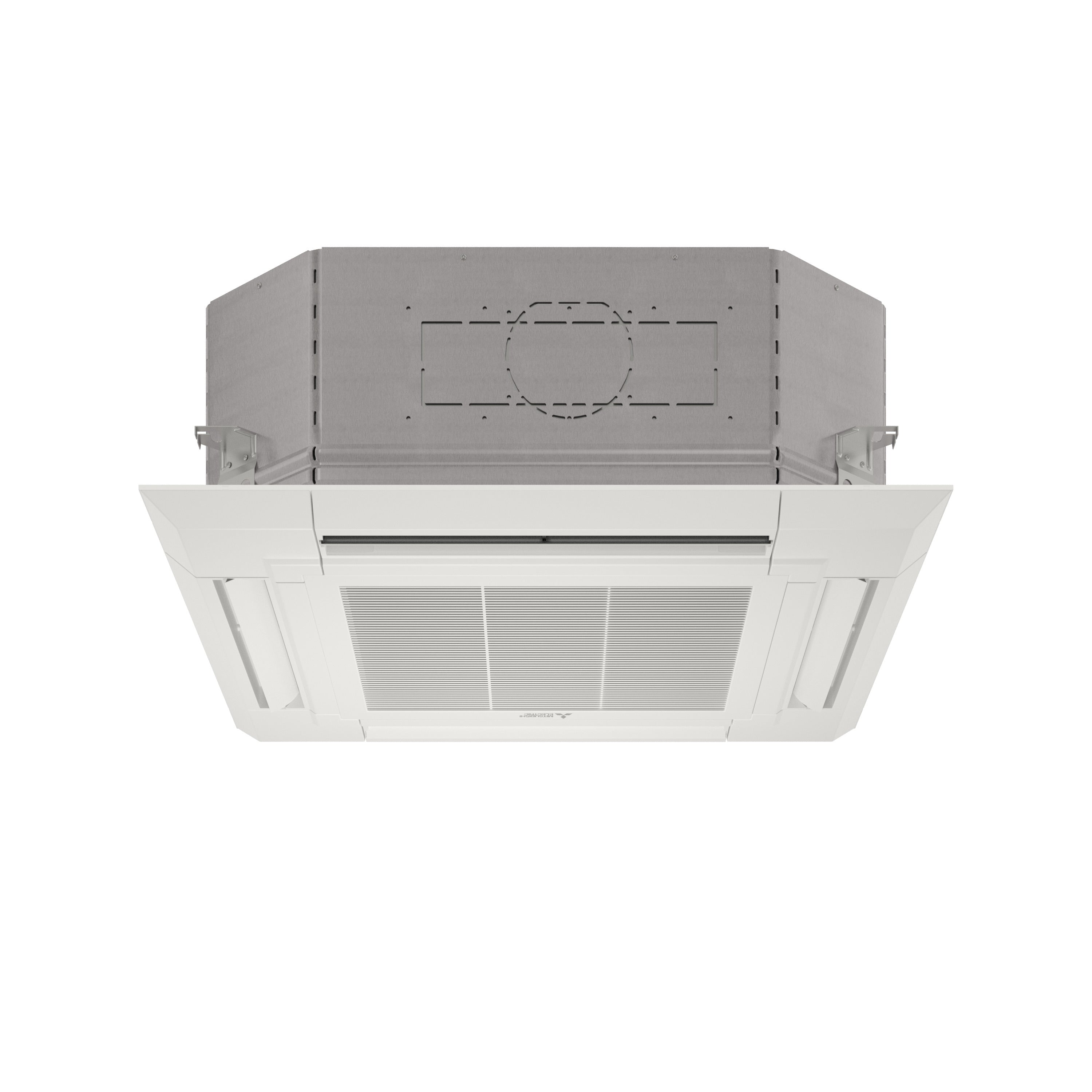

• MITSUBISHI ELECTRIC PLA-AE12NL - Mitsubishi Electric PLA-AE12NL R454B: 12,000 BTU 4-Way Cassette Air Handler (Qty x5)
• MITSUBISHI ELECTRIC PLA-AE18NL - Mitsubishi Electric PLA-AE18NL Ceiling Cassette Heating and Cooling (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)
• MITSUBISHI ELECTRIC PLP-41EAEU - Mitsubishi Electric PLP-41EAEU Ceiling Cassette Grille (Qty x6)

Key Details

• Weight of Bundle: 582.1 lb (Mitsubishi 225 lb + Mitsubishi 230 lb + Mitsubishi 46 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 66 lb)
• MXZ-SM60NL: 60,000 BTU cooling, 66,000 BTU heating, SEER2 up to 23, dimensions 41-11/32" W x 13" D x 52-11/16" H
• PLA-AE12NL: 12,000 BTU cooling, 13,500 BTU heating, SEER2 up to 21.9, dimensions 33-1/16" W x 33-1/16" D x 11-3/4" H
• PLA-AE18NL: 18,000 BTU cooling, 23,000 BTU heating, SEER2 24.7, dimensions 33-1/16" W x 33-1/16" D x 10 3/16" H
• PAC-LMA50BC: 5 ports, 208/230V, dimensions 17-3/4" W x 11-1/16" D x 6-3/4" H
• PAC-LMA30BC: 3 ports, 208/230V, dimensions 17-3/4" W x 11-1/16" D x 6-3/4" H
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B, dimensions 11.5" L x 6.2" W x 4.8" H
• PLP-41EAEU: Weight 15 lbs, designed for seamless integration with Mitsubishi Electric systems

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, compatible with Mitsubishi Electric's M-Series and P-Series indoor units. The components work seamlessly together to provide efficient climate control in various settings, ensuring optimal comfort and energy savings.
