Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+9K+9K+9K+9K+9K

Description

This comprehensive bundle features essential components for creating an efficient multi-zone HVAC system. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump unit serves as the powerhouse, delivering up to 60,000 BTU of cooling and 66,000 BTU of heating capacity. Paired with six SLZ-AF09NL indoor units, this setup ensures optimal air distribution and customizable comfort across various spaces. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant flow management, connecting multiple indoor units to the outdoor unit. Additionally, the MSDD-50AR2-E branch pipe distribution kit enhances performance by ensuring balanced refrigerant distribution, while the SLP-18FAU grille provides a sleek finish for the indoor units. Together, these components create a versatile and efficient climate control solution for both residential and commercial applications.

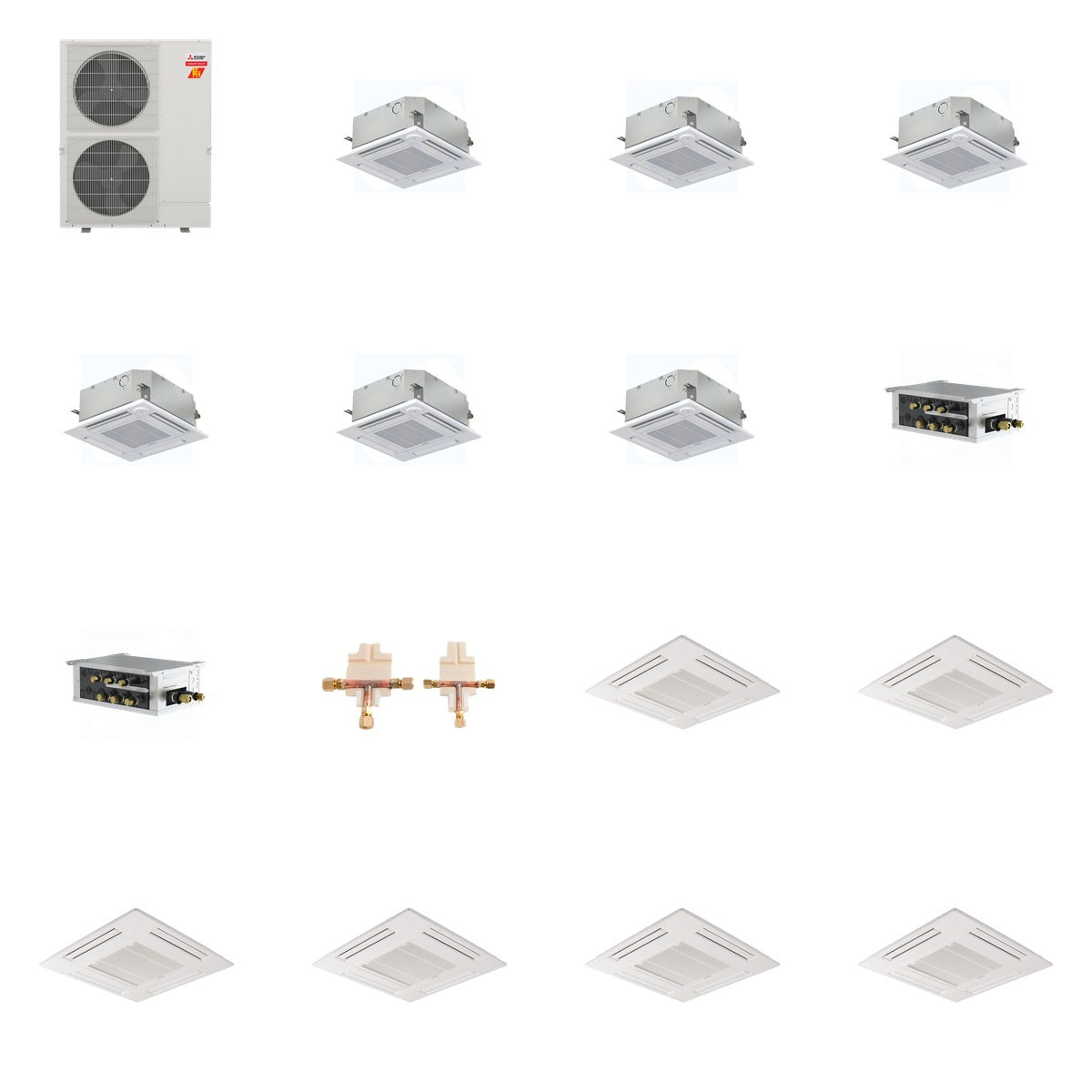

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - Mitsubishi Electric SLZ-AF09NL M-Series - Multi or Single-Zone - 9k BTU - R-454B (Qty x6)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x6)

Key Details

• Weight of Bundle: 480.1 lb (Mitsubishi 225 lb + Mitsubishi 198 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 42 lb)
• Cooling Capacity: 60,000 BTU
• Heating Capacity: 66,000 BTU
• SEER2: Up to 23
• Voltage: 208/230 Volts
• Indoor Unit BTU: 9,000 (each)
• Sound Level: As low as 25 dB(A)
• Material: Copper, Insulation: Cross-linked Polyethylene Foam
• Dimensions (Outdoor Unit): 41-11/32 in W x 13 in D x 52-11/16 in H
• Dimensions (Indoor Unit): 22 7/16 in W x 22 7/16 in D x 8 3/16 in H

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, suitable for both residential and commercial environments. The outdoor unit connects seamlessly with multiple indoor units, allowing for customized heating and cooling solutions. The branch boxes and distribution kit ensure efficient refrigerant management, making it compatible with Mitsubishi Electric's M-Series and CITY MULTI systems.
