Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+9K+9K+9K+9K+15K

Description

This comprehensive bundle features essential components for creating an efficient multi-zone HVAC system, perfect for both residential and commercial applications. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump unit serves as the powerhouse, delivering impressive heating and cooling capabilities. Paired with the SLZ-AF09NL and SLZ-AF15NL indoor units, this setup allows for customized airflow and temperature control in various zones. The PAC-LMA50BC and PAC-LMA30BC branch boxes ensure optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit enhances system performance. Completing the package, the SLP-18FAU grilles provide seamless air distribution, making this bundle a complete solution for efficient climate control.

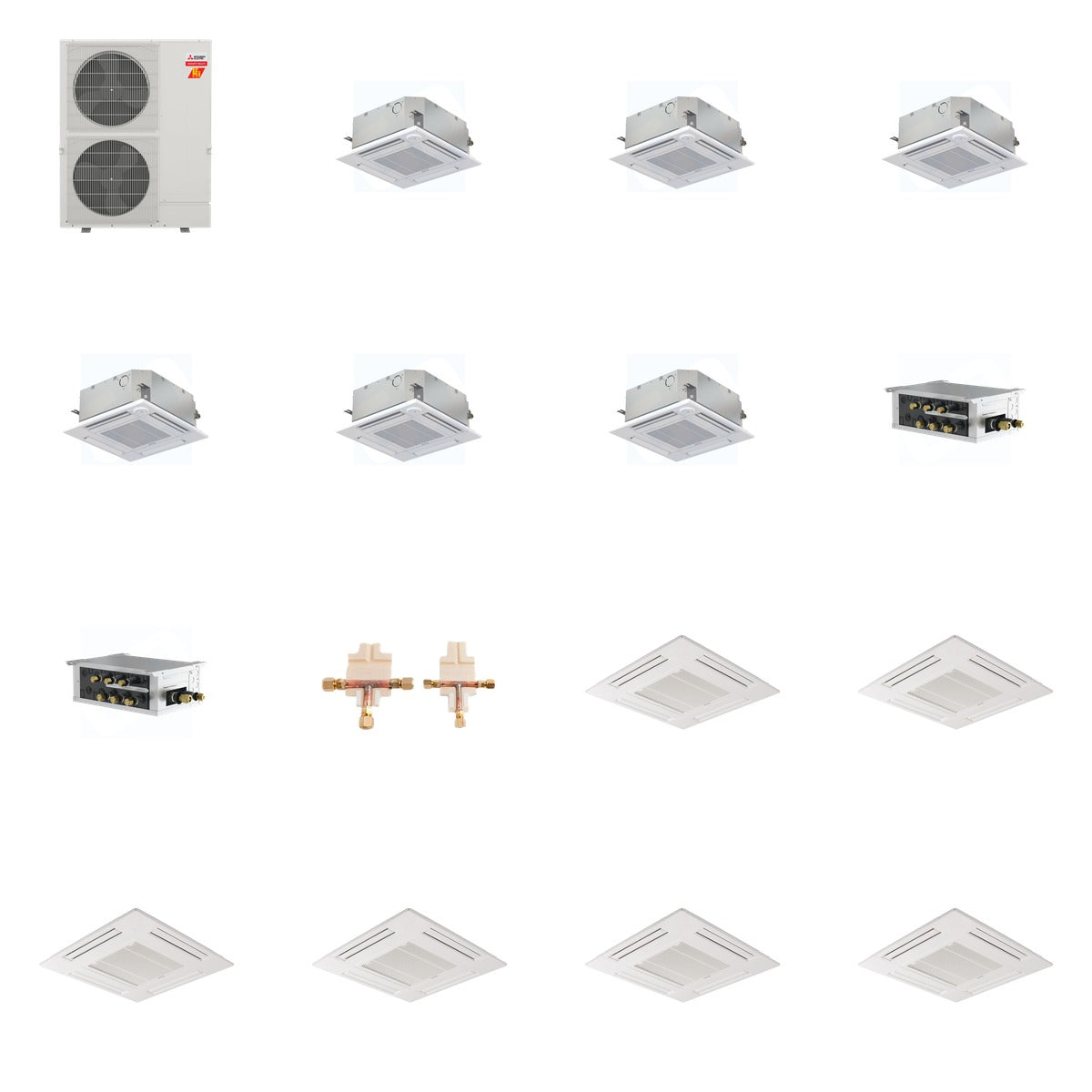

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - Mitsubishi Electric SLZ-AF09NL M-Series - Multi or Single-Zone - 9k BTU - R-454B (Qty x5)
• MITSUBISHI ELECTRIC SLZ-AF15NL - Mitsubishi Electric SLZ-AF15NL M-Series - Multi or Single-Zone - 15k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x6)

Key Details

• Weight of Bundle: 480.1 lb (Mitsubishi 225 lb + Mitsubishi 165 lb + Mitsubishi 33 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 42 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL), 9,000 BTU (SLZ-AF09NL), 15,000 BTU (SLZ-AF15NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL), 12,000 BTU (SLZ-AF09NL), 18,000 BTU (SLZ-AF15NL)
• SEER2: Up to 23 (MXZ-SM60NL)
• Voltage: 208/230 Volts
• Material: Copper (MSDD-50AR2-E), Insulated Foam (for branch pipes)
• Dimensions: Vary by unit; MXZ-SM60NL: 41-11/32 in W x 13 in D x 52-11/16 in H
• Sound Level: As low as 25 dB (SLZ-AF09NL)

Use & Compatibility

This bundle is designed for multi-zone heating and cooling applications, compatible with Mitsubishi Electric's M-Series and CITY MULTI indoor units. Ideal for both residential and commercial settings, it ensures efficient temperature control and air distribution across various spaces.
