Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+9K+9K+9K+15K+15K

Description

The Mitsubishi Electric Multi-Zone HVAC Bundle is designed to provide efficient heating and cooling solutions for both residential and commercial spaces. This comprehensive package includes a powerful outdoor heat pump unit and multiple indoor units, allowing for customizable climate control across various zones. With advanced features such as adjustable airflow patterns and built-in condensate drainage, this bundle ensures optimal performance and comfort in any environment. The included branch boxes and distribution kit facilitate seamless refrigerant management, making installation straightforward and efficient.

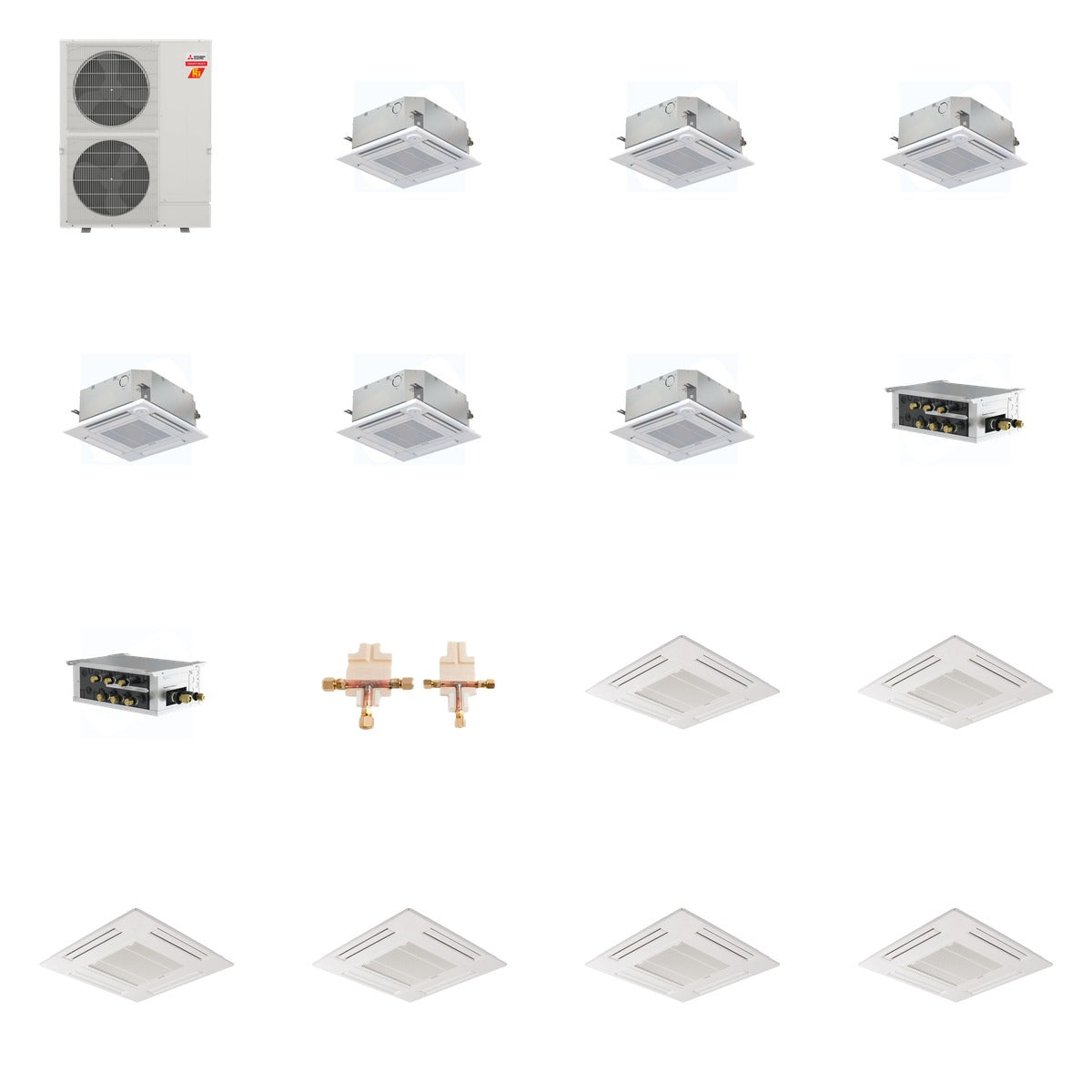

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - Mitsubishi Electric SLZ-AF09NL M-Series - Multi or Single-Zone - 9k BTU - R-454B (Qty x4)
• MITSUBISHI ELECTRIC SLZ-AF15NL - Mitsubishi Electric SLZ-AF15NL M-Series - Multi or Single-Zone - 15k BTU - R-454B (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x6)

Key Details

• Weight of Bundle: 480.1 lb (Mitsubishi 225 lb + Mitsubishi 132 lb + Mitsubishi 66 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 42 lb)
• Outdoor Unit Capacity: 60,000 BTU
• Indoor Unit Capacities: 9,000 BTU (x4), 15,000 BTU (x2)
• Refrigerant Type: R-454B
• Voltage: 208/230 Volts
• Sound Level: As low as 25 dB(A) for indoor units
• Dimensions: Outdoor unit - 41-11/32 x 13 x 52-11/16 inches
• Branch Box Ports: 3 or 5 depending on model
• Insulation Material: Cross-linked Polyethylene Foam

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing both heating and cooling capabilities. It is compatible with Mitsubishi Electric's M-Series and CITY MULTI indoor units, making it a versatile choice for various applications. The included branch boxes and distribution kit enhance the system's efficiency, ensuring balanced refrigerant flow and optimal performance across multiple indoor units.
