Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+9K+9K+9K+12K+15K

Description

This comprehensive bundle features essential components for creating an efficient multi-zone HVAC system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of connecting to multiple indoor units for tailored heating and cooling solutions. Complementing this are the SLZ-AF09NL, SLZ-AF12NL, and SLZ-AF15NL ceiling cassette units, which provide versatile air distribution and customizable airflow patterns. The PAC-LMA50BC and PAC-LMA30BC branch boxes ensure optimal refrigerant flow to the indoor units, while the MSDD-50AR2-E distribution kit enhances performance across the system. With the SLP-18FAU grille included for each indoor unit, this bundle is designed to deliver superior comfort and efficiency for both residential and commercial applications.

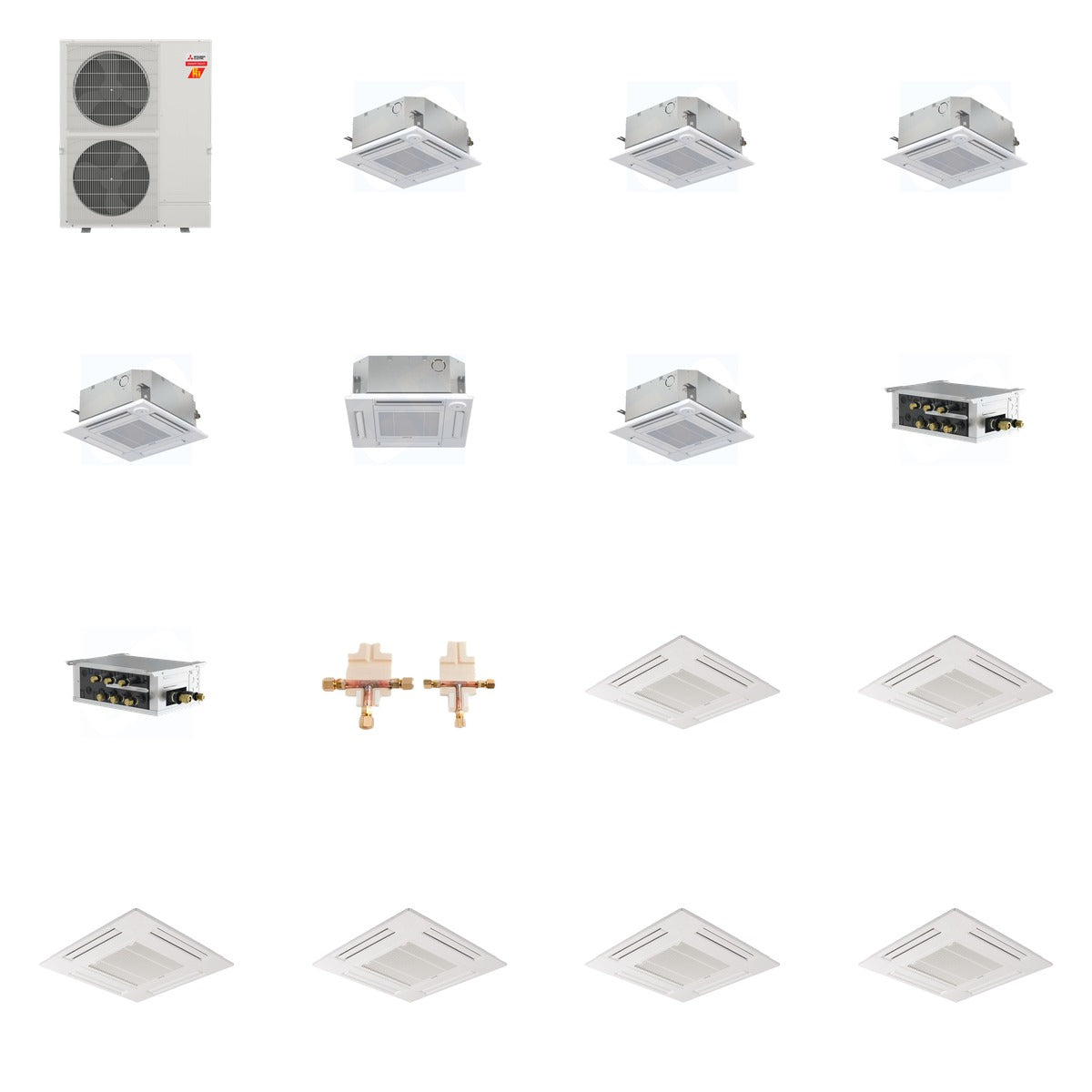

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - Mitsubishi Electric SLZ-AF09NL M-Series - Multi or Single-Zone - 9k BTU - R-454B (Qty x4)
• MITSUBISHI ELECTRIC SLZ-AF12NL - Mitsubishi Electric SLZ-AF12NL M-Series - Multi or Single-Zone - 12k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF15NL - Mitsubishi Electric SLZ-AF15NL M-Series - Multi or Single-Zone - 15k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x6)

Key Details

• Weight of Bundle: 480.1 lb (Mitsubishi 225 lb + Mitsubishi 132 lb + Mitsubishi 33 lb + Mitsubishi 33 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 42 lb)
• MXZ-SM60NL: 60,000 BTU, 5-Ton, SEER2 up to 23
• SLZ-AF09NL: 9,000 BTU cooling, 12,000 BTU heating, 208/230V
• SLZ-AF12NL: 12,000 BTU cooling, 15,000 BTU heating, 208/230V
• SLZ-AF15NL: 15,000 BTU cooling, 18,000 BTU heating, 208/230V
• PAC-LMA50BC: Connects up to 5 indoor units, 208/230V
• PAC-LMA30BC: Connects up to 3 indoor units, 208/230V
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B
• SLP-18FAU: Grille for SLZ-AF series, fits standard ceiling grids

Use & Compatibility

This bundle is designed for multi-zone HVAC installations, providing efficient heating and cooling solutions for both residential and commercial environments. The components are compatible with Mitsubishi Electric's M-Series and CITY MULTI systems, ensuring seamless integration and optimal performance.
