Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+9K+9K+15K+15K+15K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial spaces. Featuring a powerful Mitsubishi Electric MXZ-SM60NL multi-zone heat pump outdoor unit, this bundle allows for seamless integration with multiple indoor units, ensuring customized climate control. The included SLZ-AF09NL and SLZ-AF15NL ceiling cassette indoor units offer versatile installation options with adjustable airflow patterns, while the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant distribution. Completing the package, the MSDD-50AR2-E branch pipe distribution kit ensures balanced refrigerant flow, and the SLP-18FAU grilles enhance air distribution efficiency. Together, these components create a robust and flexible HVAC system tailored to meet diverse heating and cooling needs.

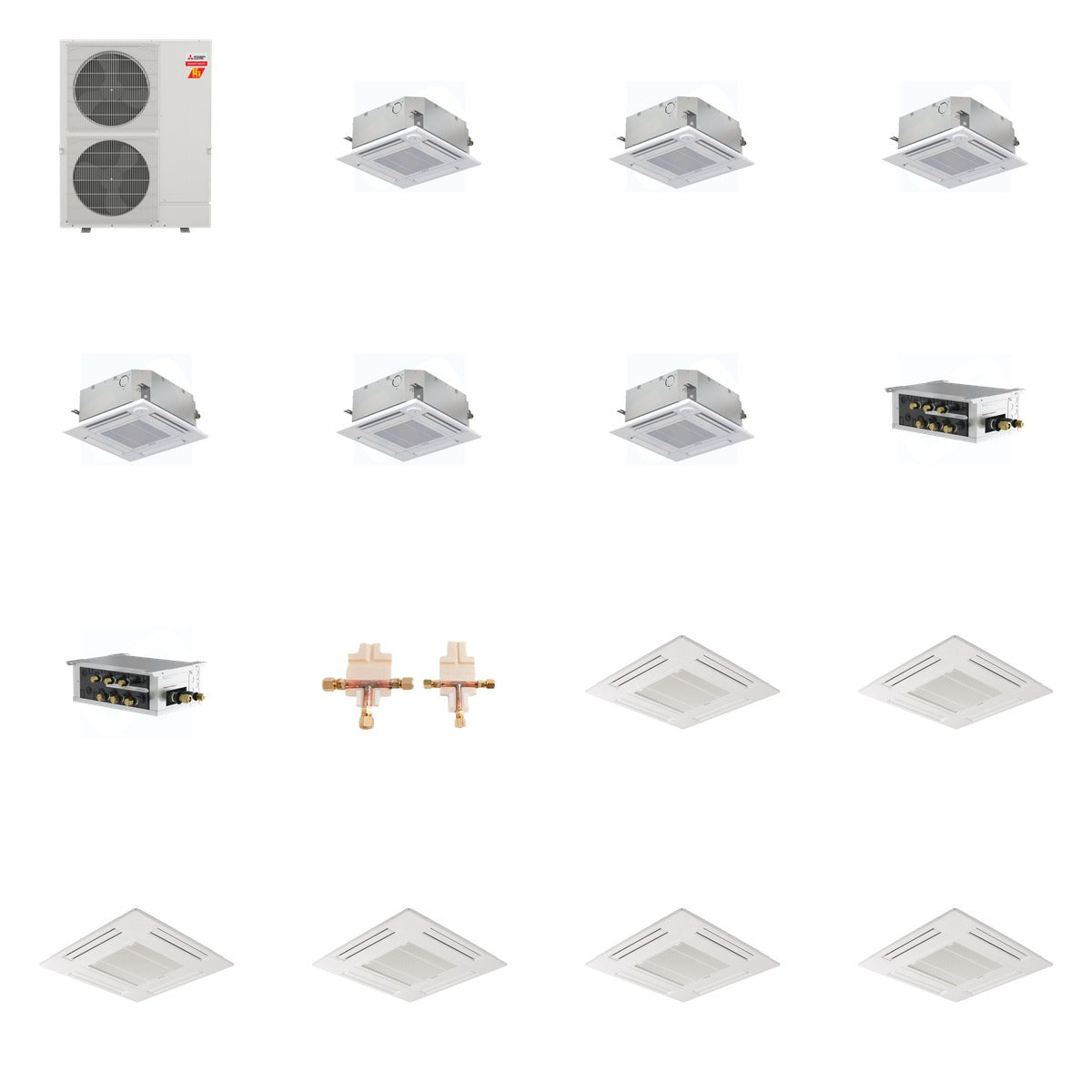

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - Mitsubishi Electric SLZ-AF09NL M-Series - Multi or Single-Zone - 9k BTU - R-454B (Qty x3)
• MITSUBISHI ELECTRIC SLZ-AF15NL - Mitsubishi Electric SLZ-AF15NL M-Series - Multi or Single-Zone - 15k BTU - R-454B (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x6)

Key Details

• Weight of Bundle: 480.1 lb (Mitsubishi 225 lb + Mitsubishi 99 lb + Mitsubishi 99 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 42 lb)
• Outdoor Unit: 60,000 BTU Cooling Capacity, 66,000 BTU Heating Capacity
• Indoor Units: SLZ-AF09NL - 9,000 BTU Cooling, 12,000 BTU Heating; SLZ-AF15NL - 15,000 BTU Cooling, 18,000 BTU Heating
• Refrigerant: R-454B
• Voltage: 208/230 Volts
• Sound Level: As low as 25 dB(A) for indoor units
• Branch Boxes: PAC-LMA50BC (5 ports), PAC-LMA30BC (3 ports)
• Material: Copper construction for branch pipes, thermal insulation included

Use & Compatibility

This bundle is ideal for multi-zone HVAC systems, providing efficient heating and cooling for various indoor environments. The components are compatible with Mitsubishi Electric's M-Series and CITY MULTI indoor units, making it suitable for both residential and commercial applications. The branch boxes and distribution kit ensure optimal refrigerant management, enhancing system performance and longevity.
