Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+9K+9K+12K+12K+12K

Description

This comprehensive HVAC bundle is designed for optimal performance in multi-zone heating and cooling applications. Featuring a powerful Mitsubishi Electric MXZ-SM60NL outdoor heat pump, this package includes multiple indoor units (SLZ-AF09NL and SLZ-AF12NL) that provide flexible installation options and customizable airflow. The bundle also comes with essential accessories such as branch boxes (PAC-LMA50BC and PAC-LMA30BC) and a distribution kit (MSDD-50AR2-E) to ensure efficient refrigerant management. Each component works seamlessly together, making this bundle perfect for both residential and commercial environments.

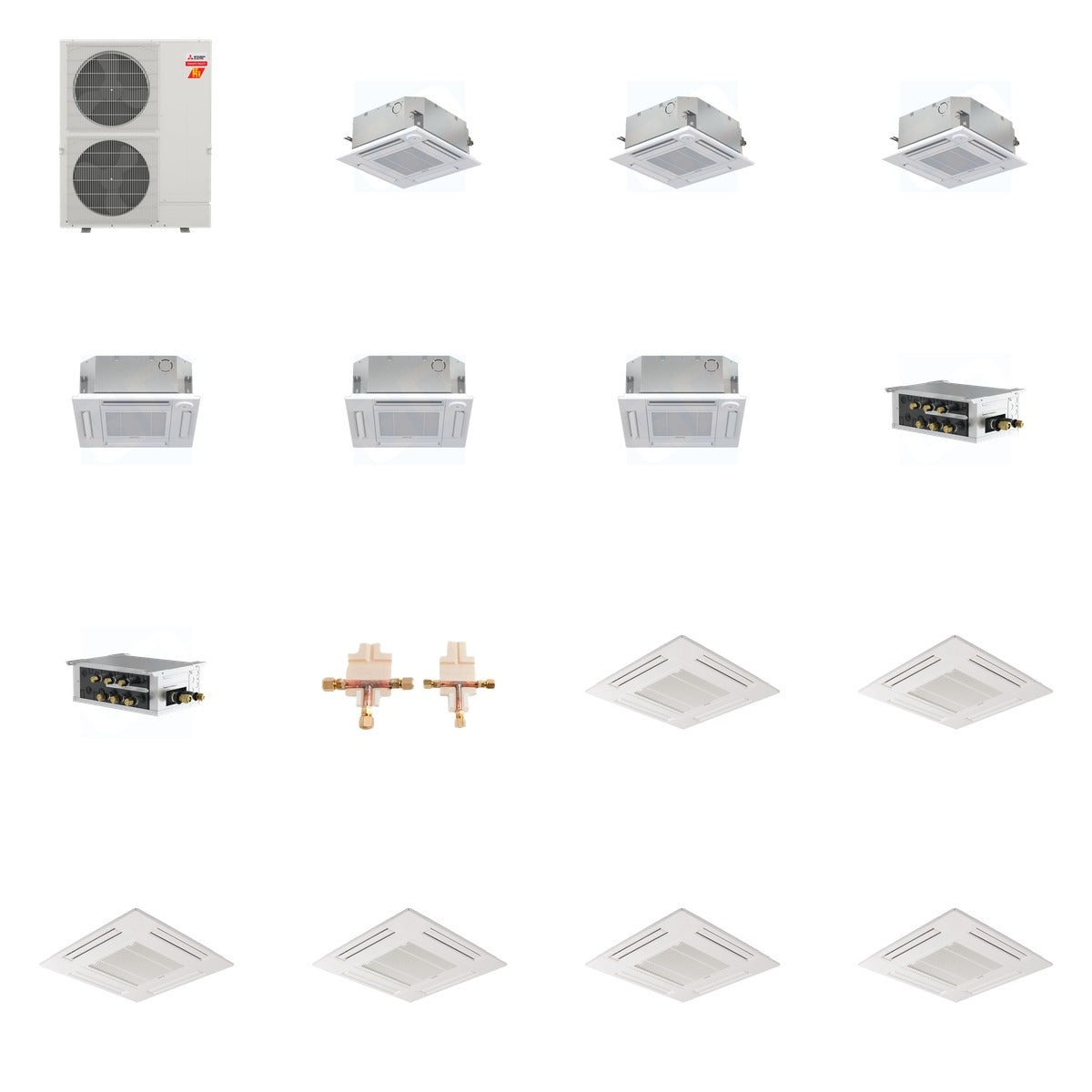

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - Mitsubishi Electric SLZ-AF09NL M-Series - Multi or Single-Zone - 9k BTU - R-454B (Qty x3)
• MITSUBISHI ELECTRIC SLZ-AF12NL - Mitsubishi Electric SLZ-AF12NL M-Series - Multi or Single-Zone - 12k BTU - R-454B (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x6)

Key Details

• Weight of Bundle: 480.1 lb (Mitsubishi 225 lb + Mitsubishi 99 lb + Mitsubishi 99 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 42 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL), 9,000 BTU (SLZ-AF09NL), 12,000 BTU (SLZ-AF12NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL), 12,000 BTU (SLZ-AF09NL), 15,000 BTU (SLZ-AF12NL)
• SEER2: Up to 23 (MXZ-SM60NL)
• Voltage: 208/230 Volts
• Material: Copper (MSDD-50AR2-E), High-grade insulation
• Sound Level: As low as 25 dB (SLZ-AF09NL)
• Dimensions: Various sizes for each component

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling systems, providing efficient temperature control for residential and commercial spaces. The outdoor unit is compatible with various Mitsubishi Electric indoor units, ensuring flexibility in installation and operation. The included branch boxes and distribution kit facilitate optimal refrigerant flow, making it suitable for complex HVAC configurations.
