Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 9K+9K+12K+12K+15K+15K

Description

This comprehensive HVAC bundle features a selection of high-quality Mitsubishi Electric components designed for efficient heating and cooling in both residential and commercial settings. The centerpiece is the MXZ-SM60NL multi-zone heat pump outdoor unit, which connects seamlessly with multiple indoor units, allowing for tailored climate control across various spaces. Complementing this outdoor unit are several indoor ceiling cassette models (SLZ-AF09NL, SLZ-AF12NL, and SLZ-AF15NL) that provide versatile airflow options and efficient temperature management. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe kit ensures balanced performance. This bundle is ideal for those looking to create a customized and efficient HVAC system.

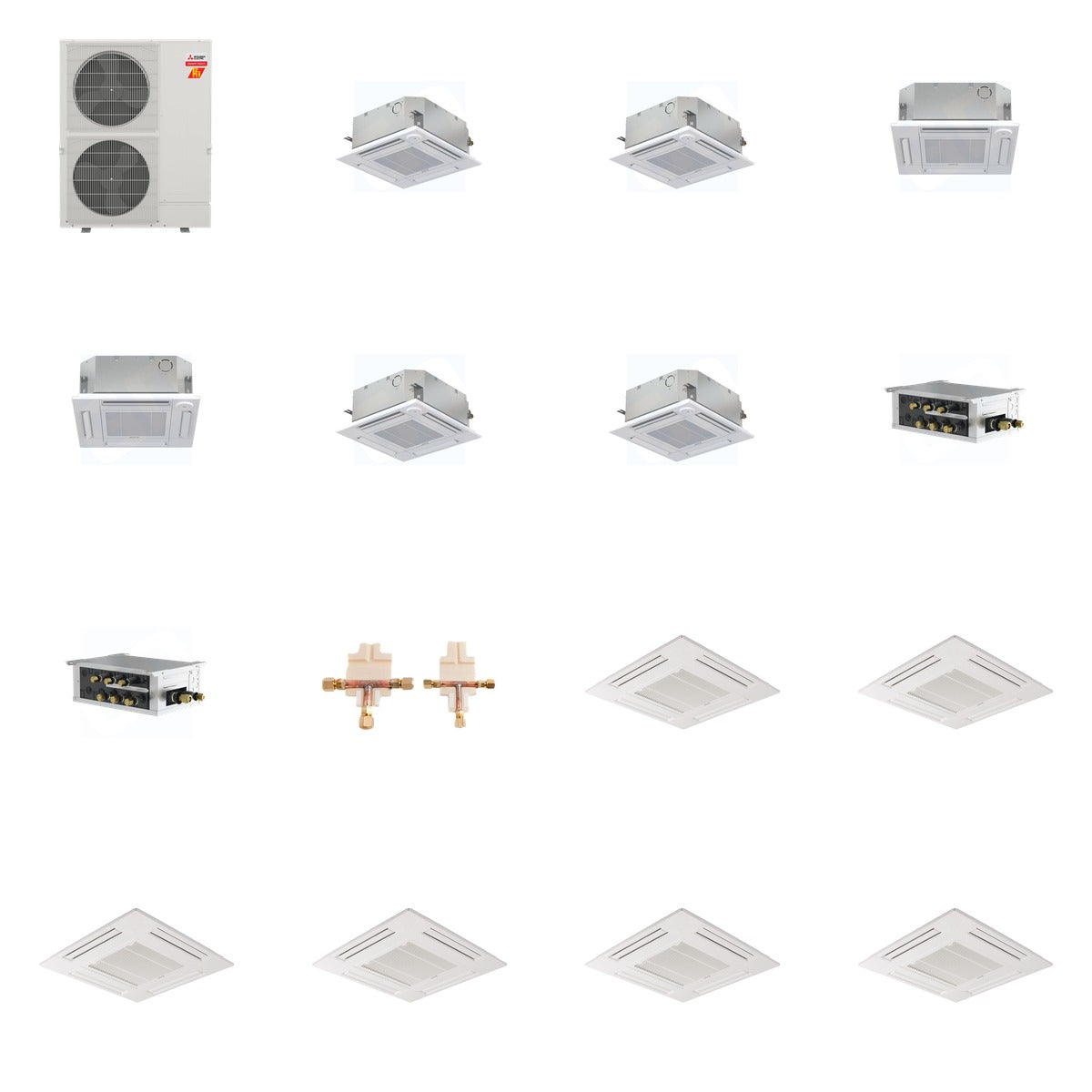

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF09NL - Mitsubishi Electric SLZ-AF09NL M-Series - Multi or Single-Zone - 9k BTU - R-454B (Qty x2)
• MITSUBISHI ELECTRIC SLZ-AF12NL - Mitsubishi Electric SLZ-AF12NL M-Series - Multi or Single-Zone - 12k BTU - R-454B (Qty x2)
• MITSUBISHI ELECTRIC SLZ-AF15NL - Mitsubishi Electric SLZ-AF15NL M-Series - Multi or Single-Zone - 15k BTU - R-454B (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x6)

Key Details

• Weight of Bundle: 480.1 lb (Mitsubishi 225 lb + Mitsubishi 66 lb + Mitsubishi 66 lb + Mitsubishi 66 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 42 lb)
• MXZ-SM60NL: 60,000 BTU Cooling, 66,000 BTU Heating, SEER2 up to 23
• SLZ-AF09NL: 9,000 BTU Cooling, 12,000 BTU Heating, 25-31 dB Sound Level
• SLZ-AF12NL: 12,000 BTU Cooling, 15,000 BTU Heating, WiFi Enabled
• SLZ-AF15NL: 15,000 BTU Cooling, 18,000 BTU Heating, 27-39 dB Sound Level
• PAC-LMA50BC: 5 ports, 208/230V, Single-phase
• PAC-LMA30BC: 3 ports, 208/230V, Single-phase
• MSDD-50AR2-E: Flare connection, Oxygen-Free Copper, R-410A/R-454B compatible
• SLP-18FAU: Grille for SLZ-AF Series, 3 lbs

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling solutions for various indoor environments. The components are compatible with Mitsubishi Electric's M-Series and CITY MULTI systems, allowing for flexible installation and optimal performance across multiple zones.
