Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 12K+12K+12K+12K+12K+15K

Description

This comprehensive bundle includes essential components for creating a highly efficient multi-zone HVAC system. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump serves as the powerhouse, providing up to 60,000 BTU of cooling and 66,000 BTU of heating capacity. Paired with five SLZ-AF12NL and one SLZ-AF15NL indoor air handlers, this setup allows for customizable climate control across different zones. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit ensures balanced refrigerant flow. Completing the package, the SLP-18FAU grilles enhance air distribution, making this bundle ideal for both residential and commercial applications.

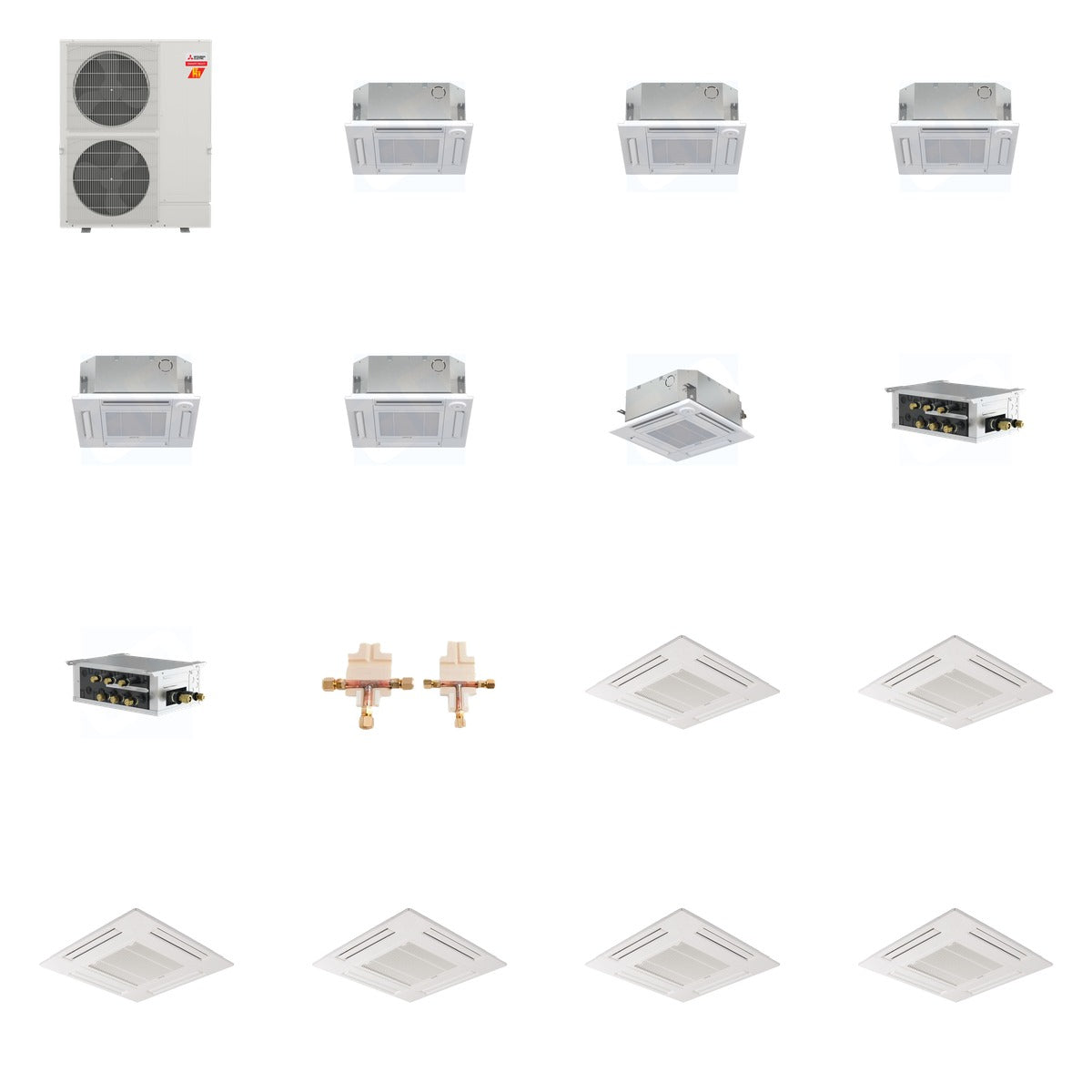

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF12NL - Mitsubishi Electric SLZ-AF12NL M-Series - Multi or Single-Zone - 12k BTU - R-454B (Qty x5)
• MITSUBISHI ELECTRIC SLZ-AF15NL - Mitsubishi Electric SLZ-AF15NL M-Series - Multi or Single-Zone - 15k BTU - R-454B (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x6)

Key Details

• Weight of Bundle: 480.1 lb (Mitsubishi 225 lb + Mitsubishi 165 lb + Mitsubishi 33 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 42 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Unit Capacity: 12,000 BTU (SLZ-AF12NL), 15,000 BTU (SLZ-AF15NL)
• Refrigerant: R-454B
• Voltage: 208/230 V
• Dimensions: 41-11/32 x 13 x 52-11/16 inches (MXZ-SM60NL)
• Sound Level: As low as 58 dB(A) (MXZ-SM60NL)
• Branch Box Ports: 5 (PAC-LMA50BC), 3 (PAC-LMA30BC)
• Material: Oxygen-Free Copper (MSDD-50AR2-E)

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling for both residential and commercial spaces. The components are compatible with Mitsubishi Electric's M-Series and CITY MULTI indoor units, ensuring seamless integration and optimal performance across various applications.
