Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 9K+9K+9K+9K+9K+9K

Description

This comprehensive HVAC bundle features essential components designed to create an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump serves as the powerhouse, providing robust heating and cooling capabilities for up to eight indoor units. Complementing this are six MLZ-KX09NL ceiling cassette indoor units, which deliver versatile air distribution in various settings. To ensure optimal refrigerant flow, the bundle includes a 5-port and a 3-port branch box (PAC-LMA50BC and PAC-LMA30BC), facilitating seamless connections between the outdoor unit and indoor units. Additionally, the MSDD-50AR2-E branch pipe distribution kit ensures balanced refrigerant distribution, while the MLP-449WU grille enhances airflow efficiency. Together, these components create a reliable and effective HVAC solution for both residential and commercial applications.

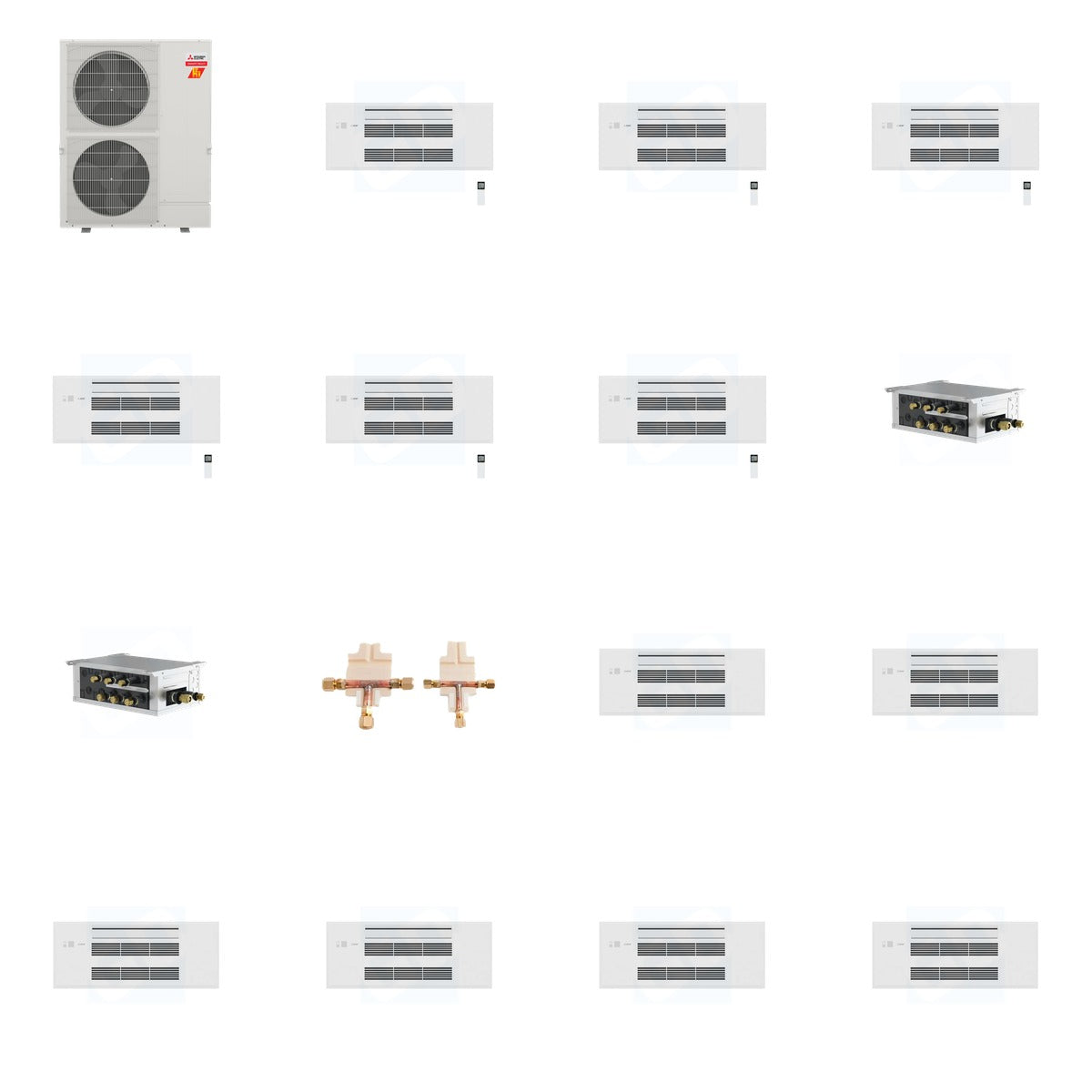

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX09NL - 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x6)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-449WU - Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x6)

Key Details

• Weight of Bundle: 320.1 lb (Mitsubishi 225 lb + Mitsubishi 20.0 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 60 lb)
• MXZ-SM60NL: 60,000 BTU Cooling, 66,000 BTU Heating, SEER2 up to 23
• MLZ-KX09NL: 9,000 BTU Cooling, 12,000 BTU Heating, Room Capacity up to 350 sq ft
• PAC-LMA50BC: 5 Ports, 208/230V, Single-phase
• PAC-LMA30BC: 3 Ports, 208/230V, Single-phase
• MSDD-50AR2-E: Flare Connection, Compatible with R-410A/R-454B
• MLP-449WU: Designed for MLZ Series Indoor Units

Use & Compatibility

This bundle is ideal for creating a multi-zone HVAC system, suitable for both residential and commercial environments. The components are designed to work seamlessly together, with the outdoor unit connecting to multiple indoor units via the branch boxes and distribution kit. The ceiling cassette units are perfect for spaces where ceiling height is limited, while the grilles ensure optimal airflow. This setup is compatible with Mitsubishi Electric's M-Series and CITY MULTI systems.
