Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 9K+9K+9K+9K+9K+18K

Description

This comprehensive bundle features essential components for creating an efficient multi-zone HVAC system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, delivering robust heating and cooling capabilities across multiple zones. Paired with five MLZ-KX09NL and one MLZ-KX18NL ceiling cassette indoor units, this setup provides versatile climate control tailored to various room sizes. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit ensures balanced performance. Completing the package, the MLP-449WU grille enhances air distribution, making this bundle ideal for both residential and commercial applications.

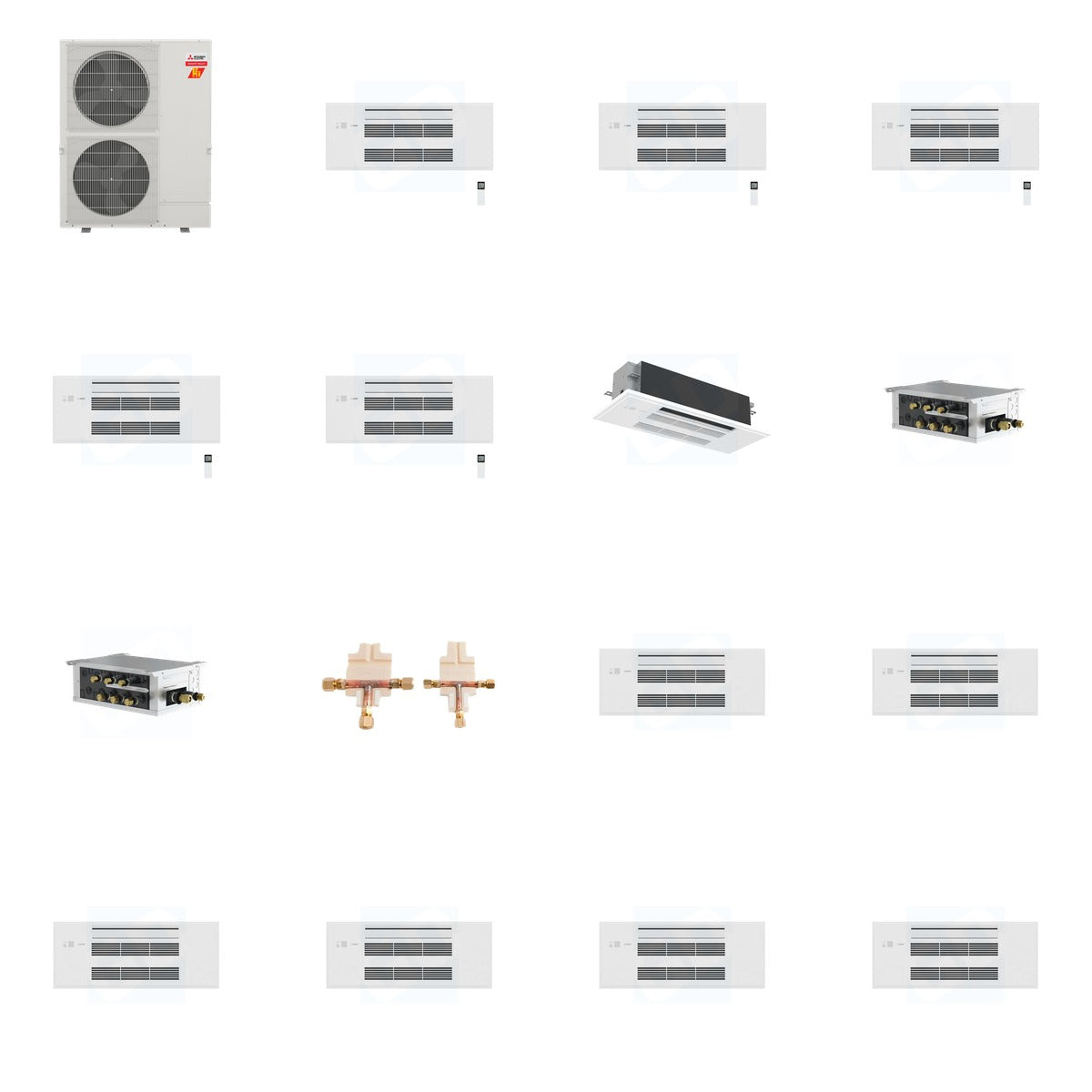

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x5)

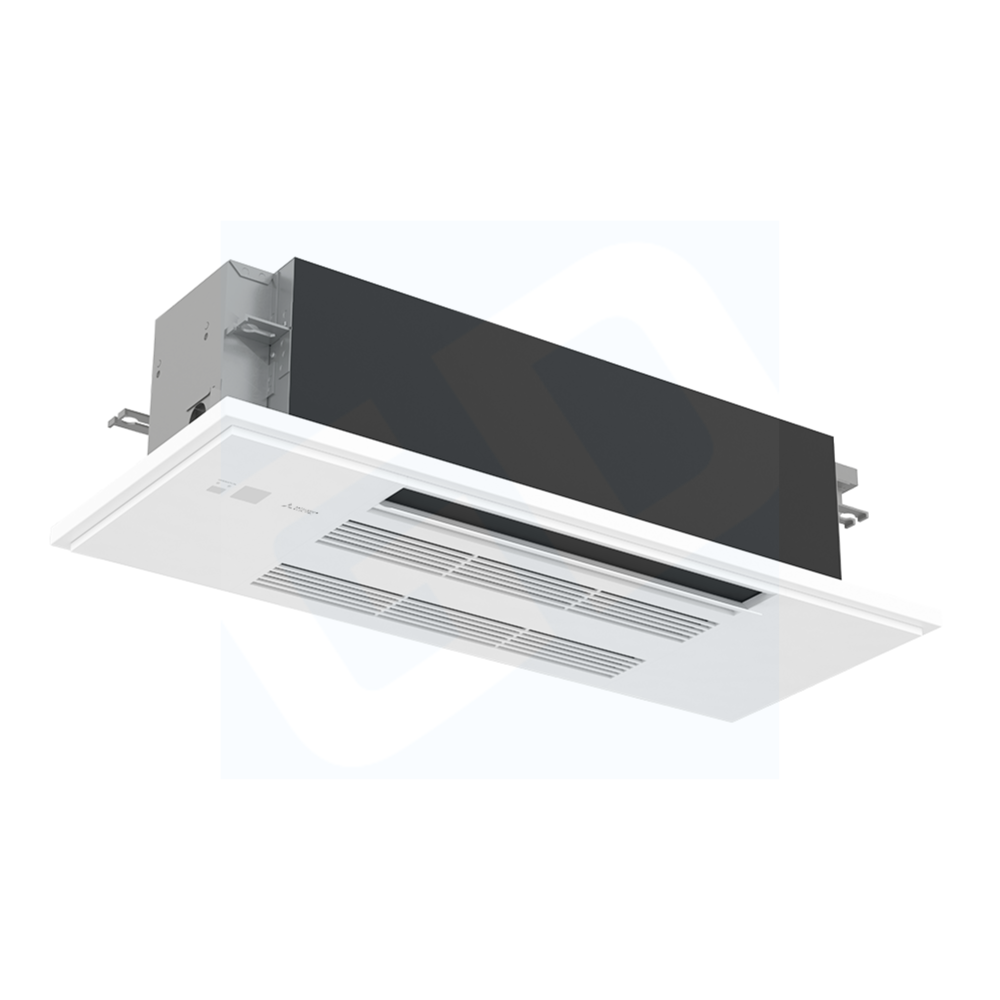

• MITSUBISHI ELECTRIC MLZ-KX18NL - Mitsubishi Electric MLZ-KX18NL 18k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x6)

Key Details

• Weight of Bundle: 320.1 lb (Mitsubishi 225 lb + Mitsubishi 16.7 lb + Mitsubishi 3.3 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 60 lb)
• Outdoor Unit Capacity: 60,000 BTU
• Indoor Unit Capacities: 9,000 BTU (x5), 18,000 BTU (x1)
• SEER2 Rating: Up to 23
• Voltage: 208/230 Volts
• Refrigerant Type: R454B
• Sound Level: As low as 26 dB(A) for indoor units
• Dimensions (Outdoor Unit): 41-11/32 in W x 13 in D x 52-11/16 in H
• Dimensions (Indoor Units): 43-3/8 in W x 14-3/16 in D x 7-5/16 in H
• Branch Boxes: 5-Port and 3-Port options for flexible installation
• Material: High-quality copper and insulation for durability

Use & Compatibility

This bundle is designed for multi-zone HVAC systems, providing efficient heating and cooling for residential and commercial spaces. The outdoor unit is compatible with various indoor units, ensuring flexibility in installation. The branch boxes and distribution kit enhance refrigerant management, making it suitable for both new installations and upgrades.
