Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 9K+9K+9K+12K+12K+12K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial spaces. Featuring the Mitsubishi Electric MXZ-SM60NL outdoor unit, this package supports multiple indoor units, ensuring customized comfort across various zones. The included ceiling cassette indoor units (MLZ-KX09NL and MLZ-KX12NL) offer versatile installation options and advanced features like Wi-Fi control and adjustable airflow. Additionally, the bundle includes essential components such as branch boxes (PAC-LMA50BC and PAC-LMA30BC) and a branch pipe distribution kit (MSDD-50AR2-E), all engineered to optimize refrigerant flow and enhance system performance. The MLP-449WU grille completes the setup, ensuring efficient air distribution. Together, these products form a cohesive system that maximizes comfort and efficiency.

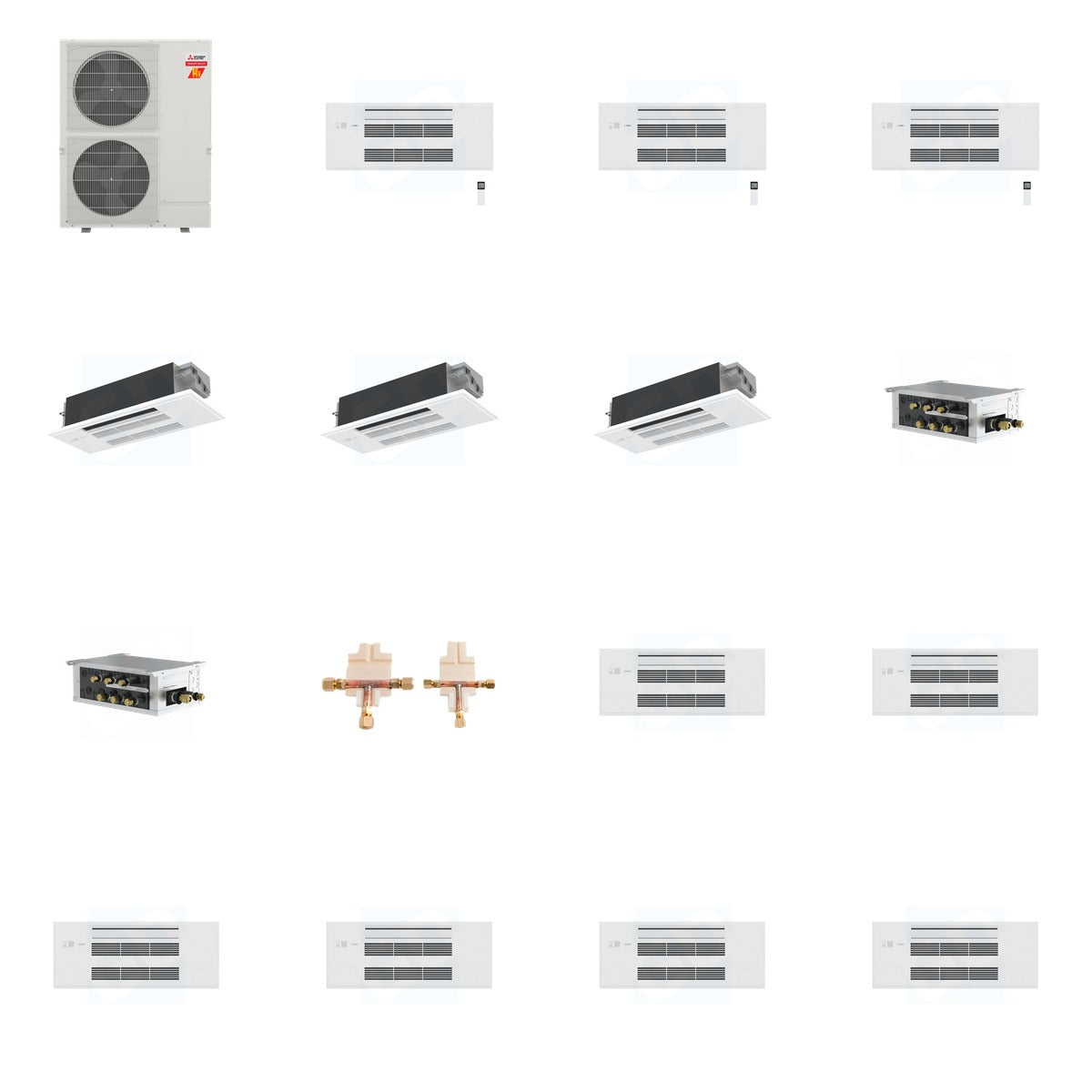

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x6)

Key Details

• Weight of Bundle: 412.1 lb (Mitsubishi 225 lb + Mitsubishi 10.0 lb + Mitsubishi 102 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 60 lb)
• MXZ-SM60NL: 60,000 BTU Cooling, 66,000 BTU Heating, SEER2 up to 23
• MLZ-KX09NL: 9,000 BTU Cooling, 12,000 BTU Heating, 208/230V
• MLZ-KX12NL: 12,000 BTU Cooling, 15,400 BTU Heating, 208/230V
• PAC-LMA50BC: 5 Ports, 208/230V, Compatible with MXZ model
• PAC-LMA30BC: 3 Ports, 208/230V, R454B refrigerant compatible
• MSDD-50AR2-E: Flare connection, Oxygen-Free Copper, R-410A/R-454B compatible

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling across various indoor environments. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, while the branch boxes and distribution kit ensure optimal refrigerant management. Ideal for both residential and commercial applications, this comprehensive package meets diverse climate control needs.
