Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 9K+9K+12K+12K+12K+12K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial environments. Featuring the Mitsubishi Electric MXZ-SM60NL multi-zone heat pump outdoor unit, this package allows for the connection of multiple indoor units, ensuring customized comfort across various spaces. The included MLZ-KX09NL and MLZ-KX12NL ceiling cassette indoor units deliver versatile air distribution with adjustable fan speeds, while the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant flow. Completing the bundle, the MSDD-50AR2-E branch pipe distribution kit ensures balanced pressure and performance, and the MLP-449WU grille enhances airflow for the MLZ series. Together, these components create a powerful and efficient climate control system.

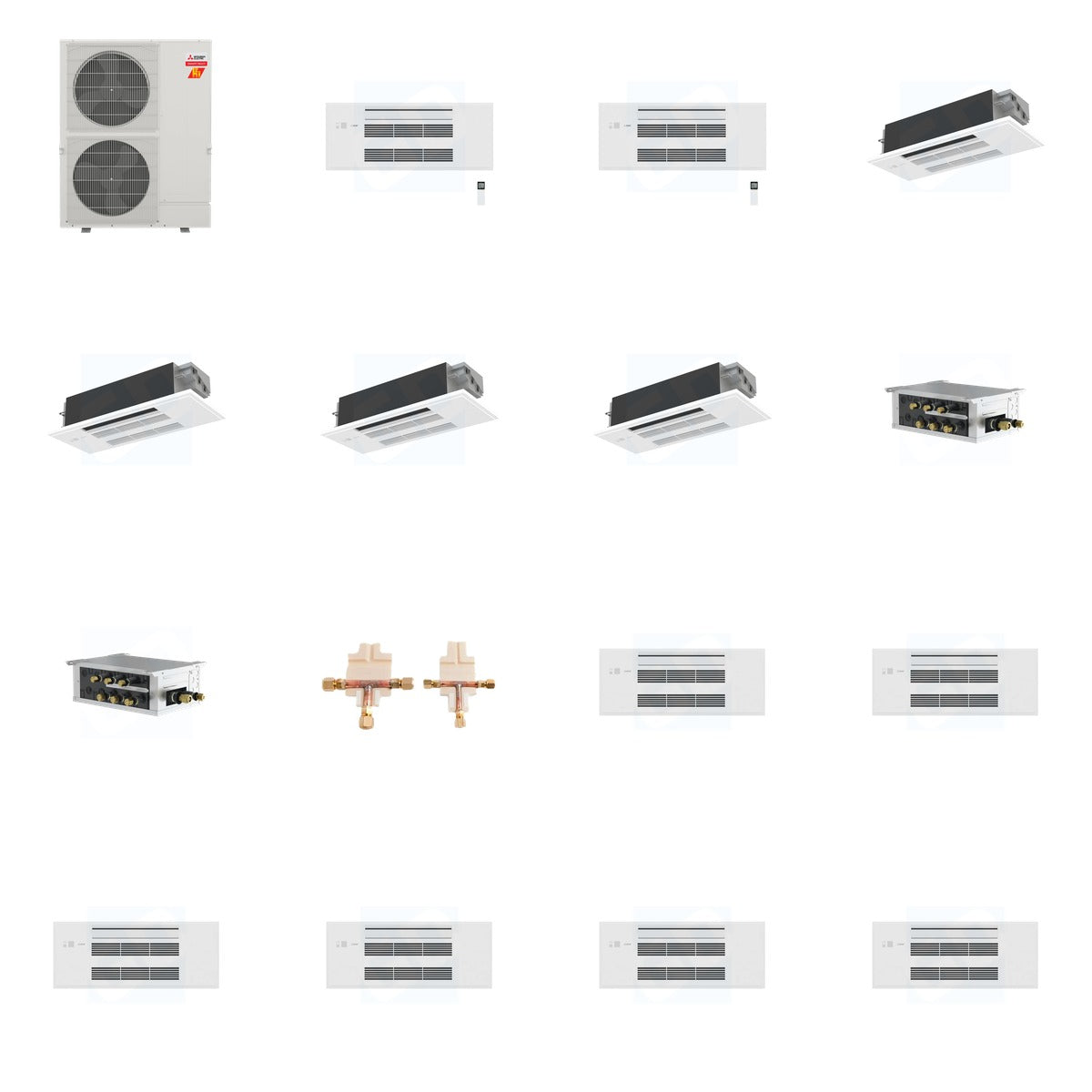

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x4)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x6)

Key Details

• Weight of Bundle: 442.8 lb (Mitsubishi 225 lb + Mitsubishi 6.7 lb + Mitsubishi 136 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 60 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton inverter condenser
• MLZ-KX09NL: 9,000 BTU cooling, 12,000 BTU heating, 208/230V
• MLZ-KX12NL: 12,000 BTU cooling, 15,400 BTU heating, 208/230V
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ model
• PAC-LMA30BC: 3 ports, 208/230V, R454B refrigerant
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B
• MLP-449WU: Designed for MLZ Series, optimizes air distribution

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, compatible with Mitsubishi Electric's M-Series and CITY MULTI systems. The outdoor unit connects seamlessly with the indoor units, ensuring efficient temperature control across various rooms. The branch boxes and distribution kit further enhance system performance, making this bundle suitable for both residential and commercial installations.
