Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 9K+12K+12K+12K+12K+12K

Description

This comprehensive HVAC bundle features essential components designed to create an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of supporting up to eight indoor units. Paired with the MLZ-KX09NL and MLZ-KX12NL ceiling cassette indoor units, this bundle provides versatile temperature control across various spaces. The included PAC-LMA50BC and PAC-LMA30BC branch boxes ensure optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit enhances system performance. Completing the setup, the MLP-449WU grille guarantees efficient airflow, making this bundle ideal for both residential and commercial applications.

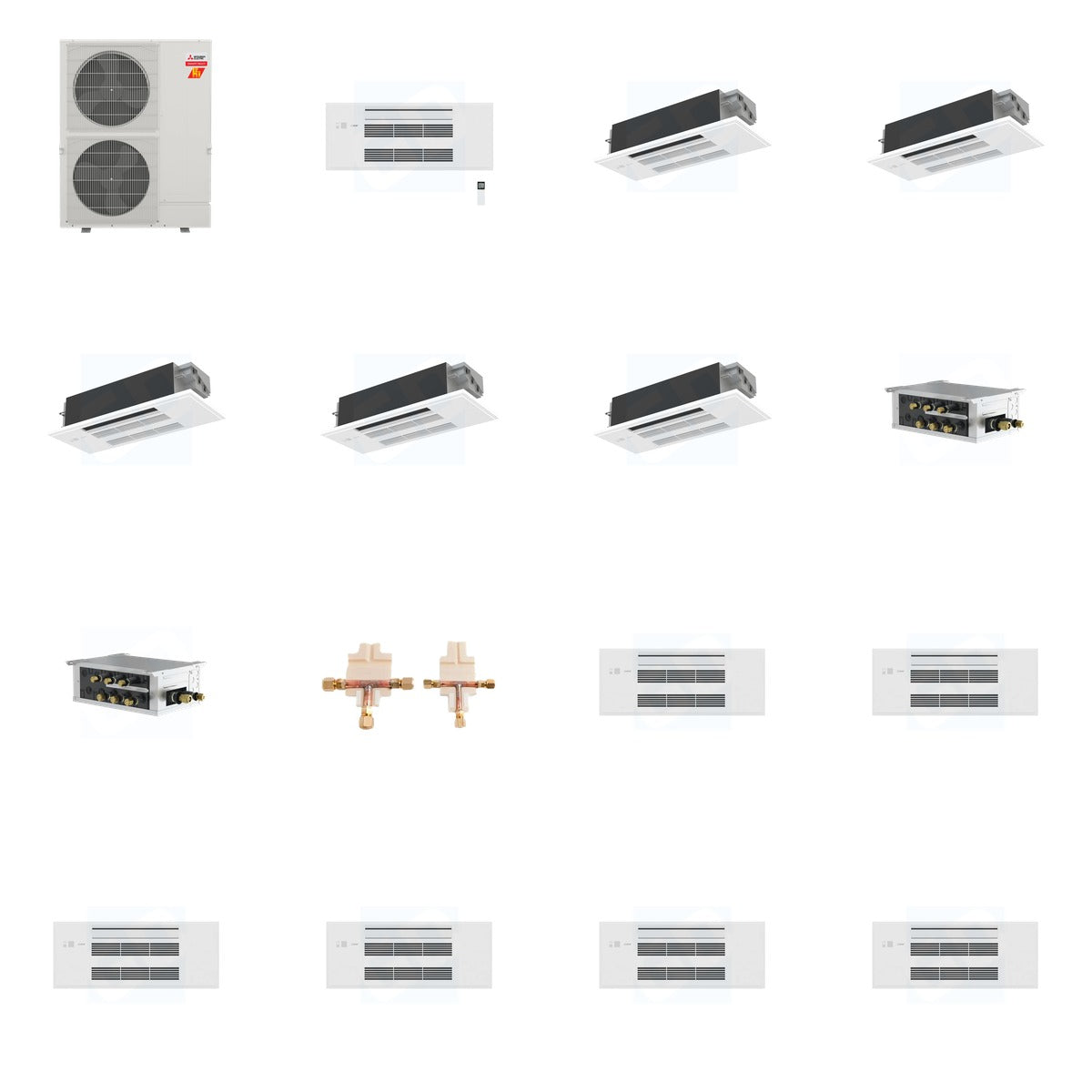

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x5)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x6)

Key Details

• Weight of Bundle: 473.4 lb (Mitsubishi 225 lb + Mitsubishi 3.3 lb + Mitsubishi 170 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 60 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Unit Capacity: 9,000 BTU (MLZ-KX09NL), 12,000 BTU (MLZ-KX12NL)
• SEER2 Rating: Up to 23 (MXZ-SM60NL)
• Voltage: 208/230V
• Dimensions: 41-11/32 x 13 x 52-11/16 inches (MXZ-SM60NL)
• Noise Level: As low as 26 dB(A) (MLZ-KX12NL)
• Refrigerant Type: R-454B
• Weight: 34 lbs (MLZ-KX09NL, MLZ-KX12NL)

Use & Compatibility

This bundle is intended for use in multi-zone heating and cooling applications, making it suitable for both residential and commercial environments. The components are compatible with Mitsubishi Electric's M-Series and CITY MULTI systems, ensuring seamless integration and optimal performance across various indoor units.
