Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+9K+9K+9K+9K+9K

Description

This comprehensive HVAC bundle features essential components designed to create a highly efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump serves as the powerhouse, capable of supporting multiple indoor units. Paired with the MLZ-KX06NL and MLZ-KX09NL ceiling cassette units, this setup allows for tailored climate control in various spaces. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe kit ensures balanced performance across all units. Completing the package, the MLP-448WU and MLP-449WU grilles enhance airflow and system efficiency. Together, these products provide a versatile solution for both residential and commercial applications.

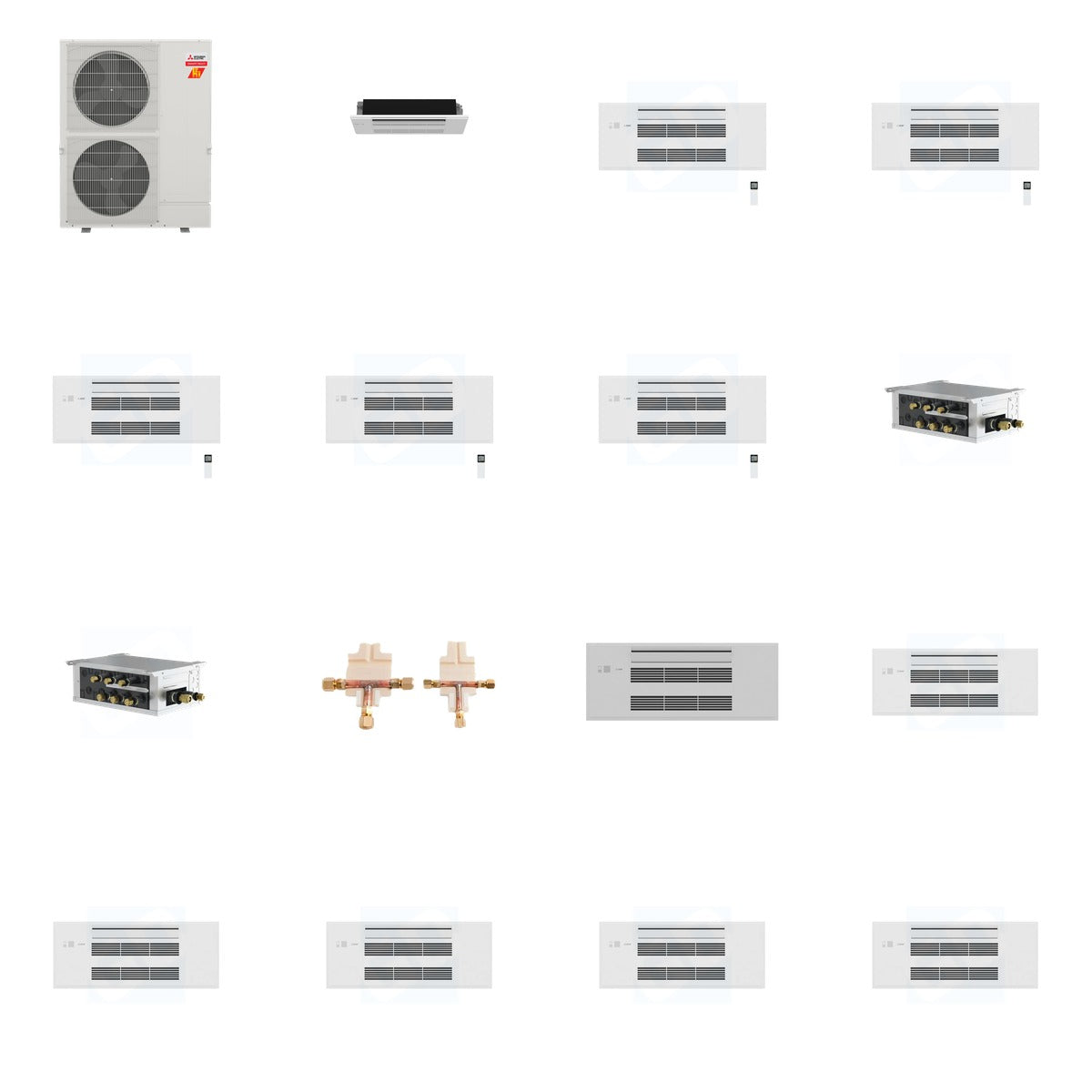

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x5)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x1)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x5)

Key Details

• Weight of Bundle: 347.8 lb (Mitsubishi 225 lb + Mitsubishi 34 lb + Mitsubishi 16.7 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 7 lb + Mitsubishi 50 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Unit Capacity: 6,000 BTU (MLZ-KX06NL), 9,000 BTU (MLZ-KX09NL)
• SEER2: Up to 23 (MXZ-SM60NL)
• Voltage: 208/230 Volts (all units)
• Dimensions: Varies by unit; MXZ-SM60NL: 41-11/32 x 13 x 52-11/16 inches
• Material: Copper (MSDD-50AR2-E), Durable Plastic (Grilles)

Use & Compatibility

This bundle is ideal for creating a multi-zone climate control system in residential and commercial settings. The outdoor unit is compatible with various indoor units, including the MLZ-KX series, and is designed to work seamlessly with R454B refrigerant. The included branch boxes and distribution kit ensure efficient refrigerant management, while the grilles optimize airflow for enhanced performance.
