Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+9K+9K+9K+12K+18K

Description

This comprehensive bundle is designed for those looking to create an efficient and versatile multi-zone HVAC system. Featuring a powerful Mitsubishi Electric MXZ-SM60NL outdoor heat pump, this bundle includes multiple one-way ceiling cassette indoor units (MLZ-KX06NL, MLZ-KX09NL, MLZ-KX12NL, MLZ-KX18NL) that provide both heating and cooling capabilities. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) ensure optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe kit enhances system performance. With the addition of essential grilles (MLP-449WU and MLP-448WU), this bundle offers a complete solution for maintaining comfort in residential and commercial spaces.

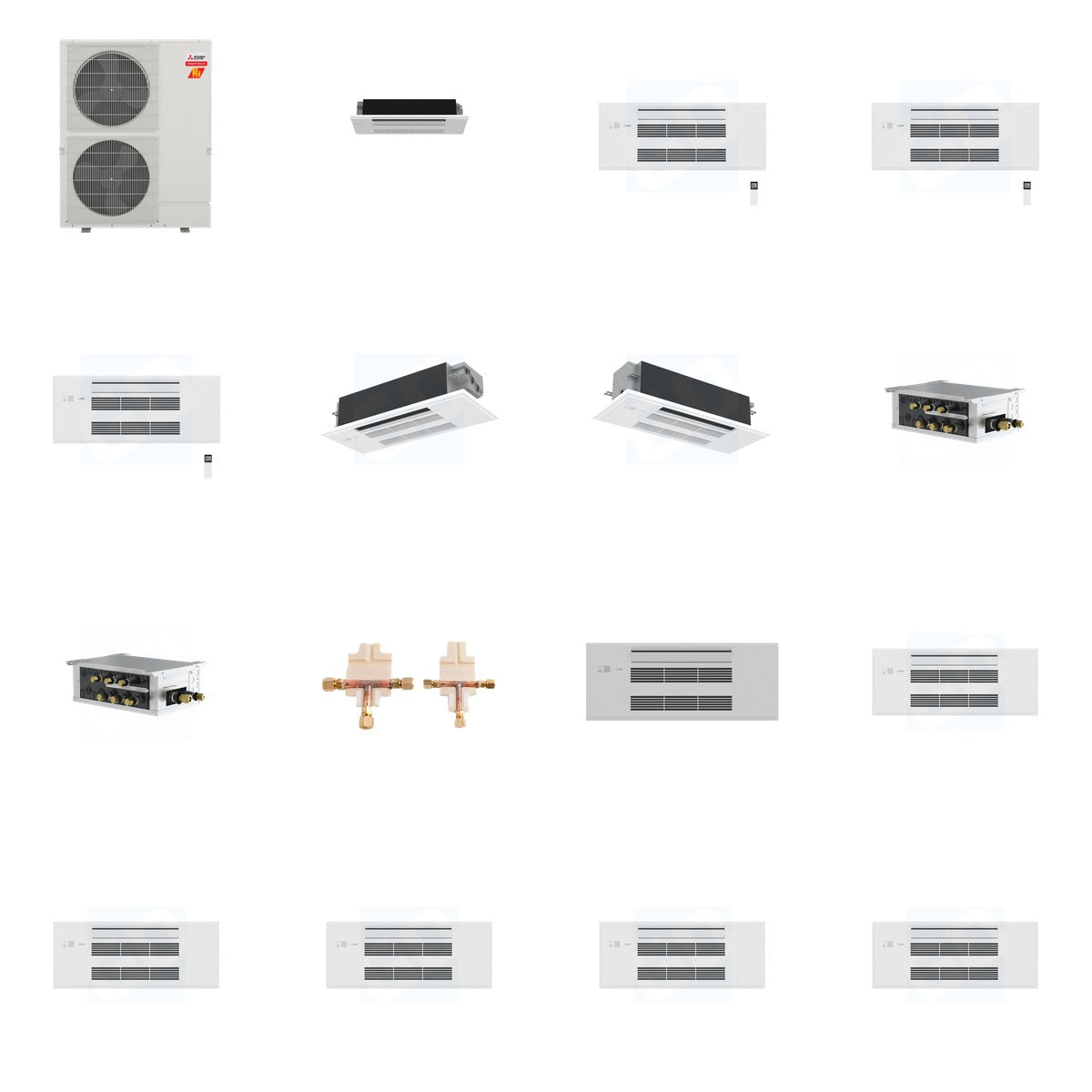

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX18NL - Mitsubishi Electric MLZ-KX18NL 18k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x1)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x5)

Key Details

• Weight of Bundle: 378.4 lb (Mitsubishi 225 lb + Mitsubishi 34 lb + Mitsubishi 10.0 lb + Mitsubishi 34 lb + Mitsubishi 3.3 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 7 lb + Mitsubishi 50 lb)
• MXZ-SM60NL: 60,000 BTU Cooling, 66,000 BTU Heating, SEER2 up to 23
• MLZ-KX06NL: 6,000 BTU Cooling, 7,200 BTU Heating, Wi-Fi Enabled
• MLZ-KX09NL: 9,000 BTU Cooling, 12,000 BTU Heating, Wi-Fi Enabled
• MLZ-KX12NL: 12,000 BTU Cooling, 15,400 BTU Heating, Wi-Fi Enabled
• MLZ-KX18NL: 18,000 BTU Cooling, 19,000 BTU Heating, Wi-Fi Enabled
• PAC-LMA50BC: 5 Ports, 208/230 Volts
• PAC-LMA30BC: 3 Ports, 208/230 Volts
• MSDD-50AR2-E: Flare Connection, Compatible with R-410A/R-454B
• MLP-448WU: Dimensions 16.5 x 38.5 x 4.25 inches
• MLP-449WU: Dimensions 43-3/8 x 14-3/16 x 7-5/16 inches

Use & Compatibility

This bundle is ideal for creating a multi-zone HVAC system suitable for both residential and commercial applications. The outdoor unit connects seamlessly with the indoor units, allowing for customized heating and cooling solutions. The branch boxes and distribution kit ensure efficient refrigerant management, while the grilles facilitate optimal airflow, enhancing overall system performance.
