Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+9K+9K+9K+9K

Description

This comprehensive HVAC bundle features essential components designed to create an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, connecting seamlessly with multiple indoor units, including the MLZ-KX06NL and MLZ-KX09NL ceiling cassettes. These indoor units are perfect for various room sizes, providing both heating and cooling capabilities. Additionally, the bundle includes branch boxes and distribution kits to ensure optimal refrigerant flow, while the grilles enhance air distribution for maximum comfort. This combination of products is ideal for both residential and commercial applications, delivering reliable performance and energy efficiency.

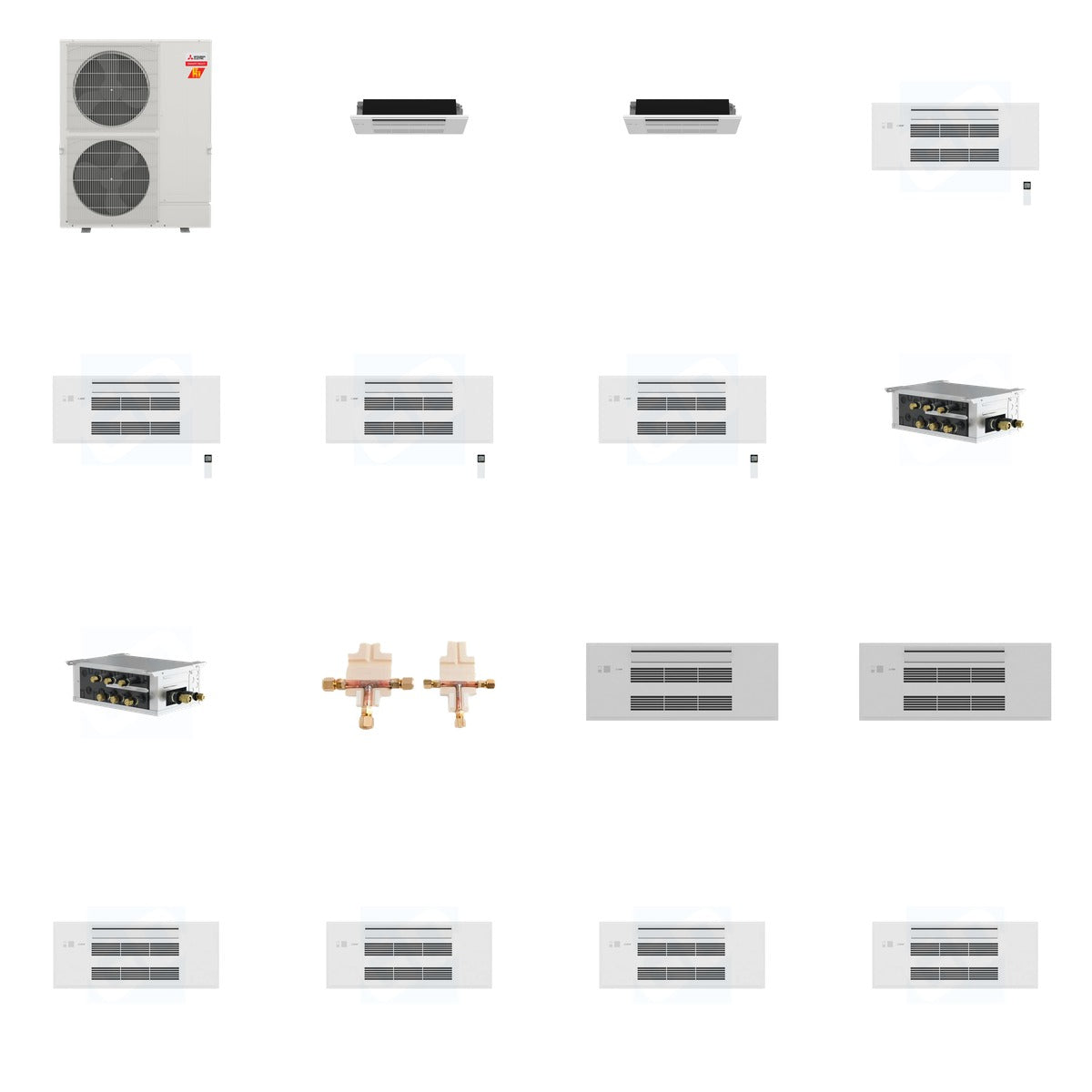

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x4)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x2)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x4)

Key Details

• Weight of Bundle: 375.4 lb (Mitsubishi 225 lb + Mitsubishi 68 lb + Mitsubishi 13.3 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 14 lb + Mitsubishi 40 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton inverter condenser
• MLZ-KX06NL: 6,000 BTU, suitable for up to 200 sq ft, Wi-Fi enabled
• MLZ-KX09NL: 9,000 BTU, suitable for up to 350 sq ft, Wi-Fi enabled
• PAC-LMA50BC: 5 ports, 208/230V, electronic LEVs for refrigerant flow
• PAC-LMA30BC: 3 ports, 208/230V, ensures balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B
• MLP-448WU: Grille dimensions 16.5 x 38.5 x 4.25 inches
• MLP-449WU: Grille dimensions compatible with MLZ Series

Use & Compatibility

This bundle is designed for multi-zone HVAC systems, providing efficient heating and cooling for residential and commercial spaces. The components are compatible with Mitsubishi Electric's M-Series and CITY MULTI systems, ensuring optimal performance and flexibility in installation.
