Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+9K+9K+9K+18K

Description

This comprehensive HVAC bundle includes a selection of high-performance Mitsubishi Electric products designed for efficient heating and cooling in both residential and commercial settings. The centerpiece is the MXZ-SM60NL multi-zone heat pump outdoor unit, which connects to multiple indoor units, providing customizable climate control. Complementing this are various ceiling cassette indoor units (MLZ-KX06NL, MLZ-KX09NL, and MLZ-KX18NL) that fit seamlessly into standard ceiling joists, ensuring optimal air distribution. Additionally, the bundle features essential branch boxes (PAC-LMA50BC and PAC-LMA30BC) for effective refrigerant management, along with high-quality branch pipe kits (MSDD-50AR2-E) for reliable installation. Grilles (MLP-448WU and MLP-449WU) are included to enhance airflow and system performance, making this bundle a complete solution for any multi-zone HVAC installation.

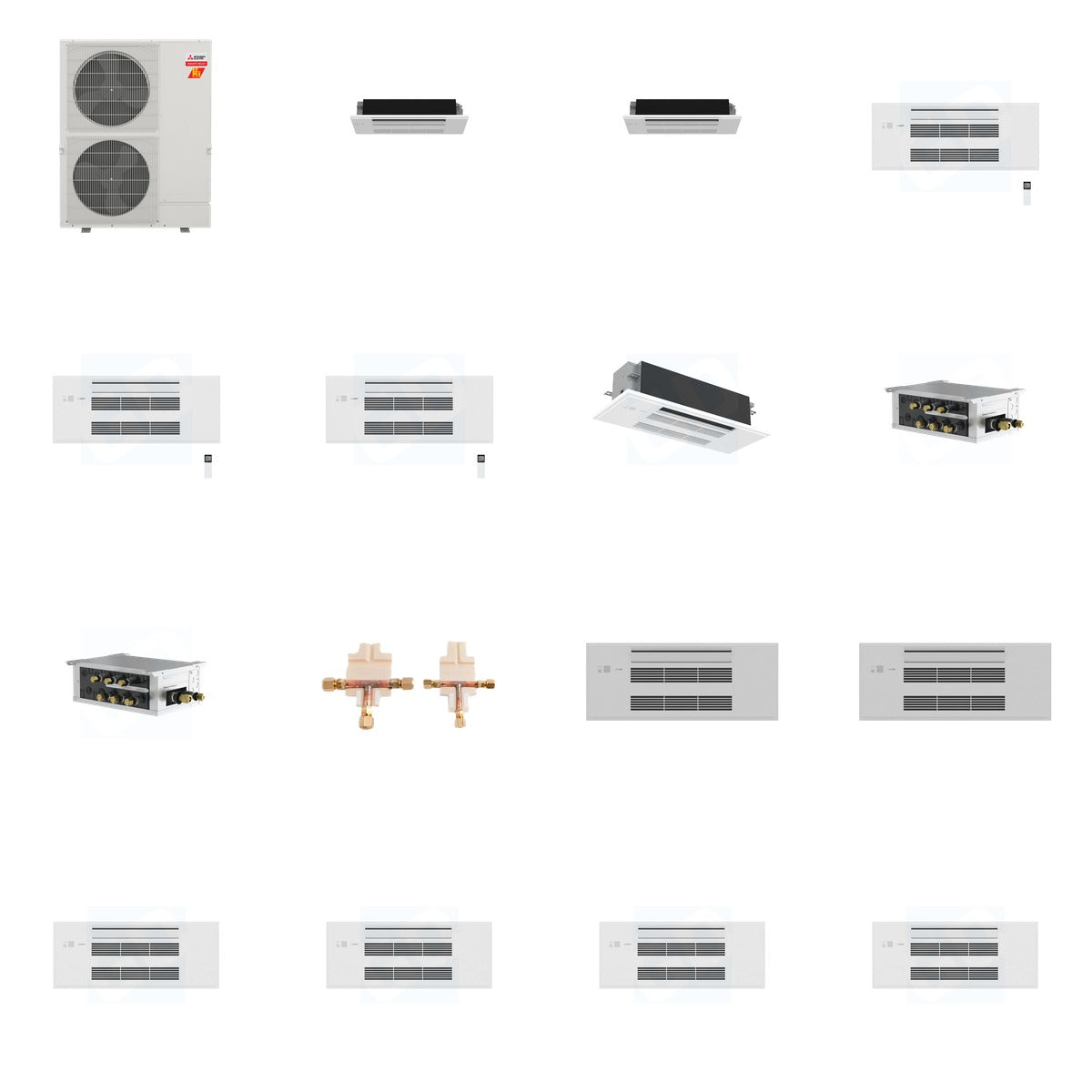

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX09NL - 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC MLZ-KX18NL - 18k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Grille for MLZ-KY Series (Qty x2)
• MITSUBISHI ELECTRIC MLP-449WU - Grille for MLZ Series Indoor Unit Ceiling Cassette (Qty x4)

Key Details

• Weight of Bundle: 375.4 lb (Mitsubishi 225 lb + Mitsubishi 68 lb + Mitsubishi 10.0 lb + Mitsubishi 3.3 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 14 lb + Mitsubishi 40 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton inverter condenser
• MLZ-KX06NL: 6,000 BTU, 200 sq ft coverage, Wi-Fi enabled
• MLZ-KX09NL: 9,000 BTU, 350 sq ft coverage, Wi-Fi enabled
• MLZ-KX18NL: 18,000 BTU, 417 CFM airflow, Wi-Fi enabled
• PAC-LMA50BC: 5 ports, 208/230 Volts, electronic LEVs
• PAC-LMA30BC: 3 ports, 208/230 Volts, ensures balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B
• MLP-448WU: 16.5 x 38.5 x 4.25 inches, 7.9 lbs
• MLP-449WU: Compatible with MLZ Series, simple installation

Use & Compatibility

This bundle is designed for multi-zone HVAC systems, ideal for both residential and commercial applications. The outdoor unit connects to various indoor units for customized climate control, while the branch boxes and distribution kits ensure efficient refrigerant management. The included grilles optimize airflow, enhancing overall system performance.
