Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+9K+9K+9K+12K

Description

This comprehensive HVAC bundle includes essential components designed to create an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of connecting to multiple indoor units for customized climate control. The included ceiling cassette units (MLZ-KX06NL, MLZ-KX09NL, and MLZ-KX12NL) provide flexible installation options and effective air distribution, making them ideal for both residential and commercial applications. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant flow to the indoor units, while the MSDD-50AR2-E branch pipe distribution kit ensures balanced pressure across the system. Completing the bundle are the MLP-448WU and MLP-449WU grilles, which enhance airflow and system performance.

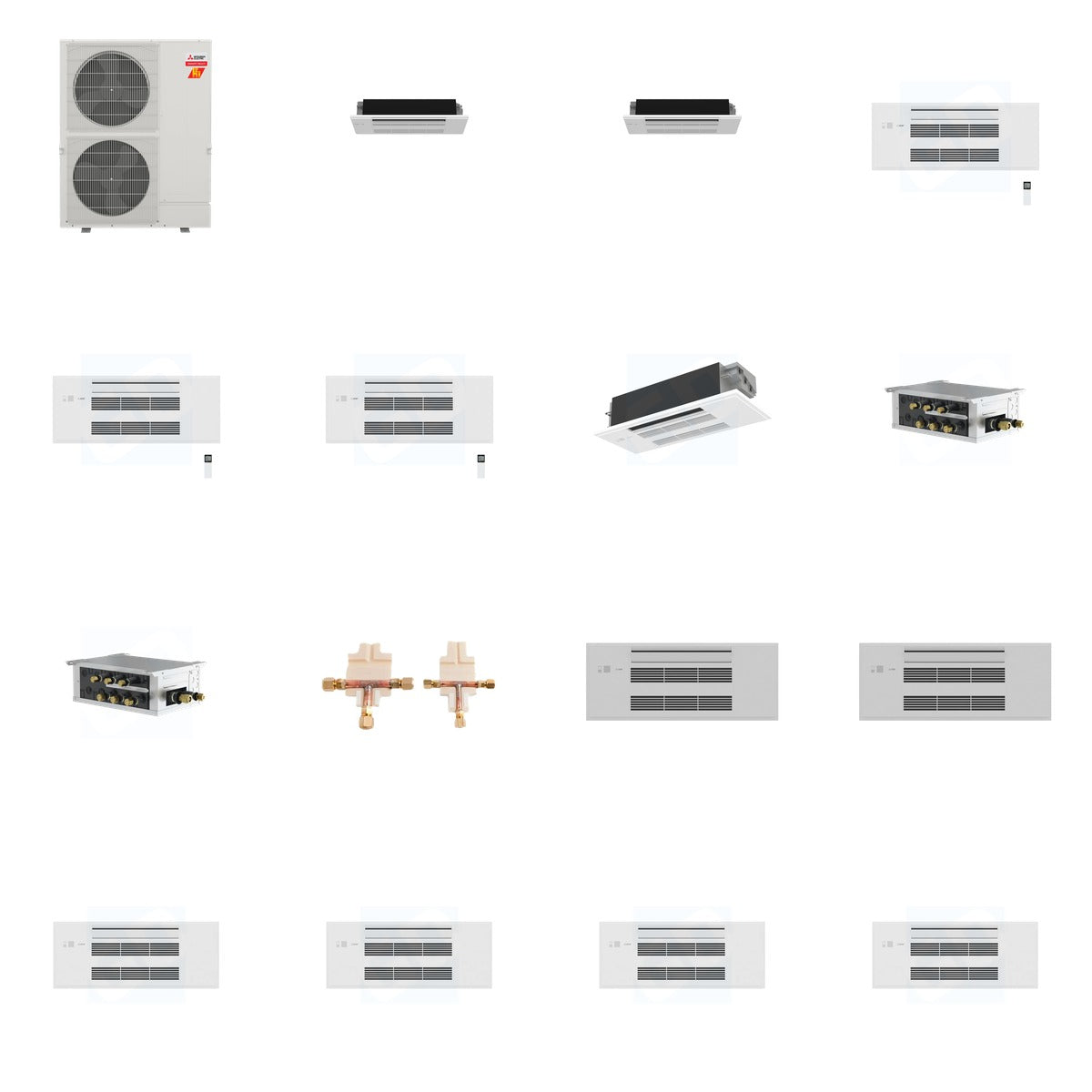

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x2)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x4)

Key Details

• Weight of Bundle: 406.1 lb (Mitsubishi 225 lb + Mitsubishi 68 lb + Mitsubishi 10.0 lb + Mitsubishi 34 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 14 lb + Mitsubishi 40 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Unit Capacities: 6,000 BTU (MLZ-KX06NL), 9,000 BTU (MLZ-KX09NL), 12,000 BTU (MLZ-KX12NL)
• Refrigerant Type: R-454B
• Voltage: 208/230 Volts
• Noise Levels: As low as 26 dB(A) (MLZ-KX09NL)
• Dimensions: Various (see individual units)
• Wi-Fi Enabled: Yes (selected units)

Use & Compatibility

This bundle is intended for use in residential and commercial HVAC systems, providing efficient heating and cooling solutions across multiple zones. The components are compatible with Mitsubishi Electric's M-Series and CITY MULTI systems, ensuring seamless integration and optimal performance.
