Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+9K+9K+9K

Description

This comprehensive HVAC bundle is designed to provide optimal heating and cooling solutions for both residential and commercial environments. Featuring the Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, this package allows for seamless integration with multiple indoor units, ensuring customized comfort across various spaces. The included MLZ-KX06NL and MLZ-KX09NL ceiling cassette units deliver efficient heating and cooling for rooms up to 350 square feet, while the PAC-LMA30BC and PAC-LMA50BC branch boxes facilitate effective refrigerant distribution. With additional components like the MSDD-50AR2-E branch pipe kit and MLP-448WU and MLP-449WU grilles, this bundle ensures enhanced system performance and air distribution, making it an ideal choice for any multi-zone HVAC setup.

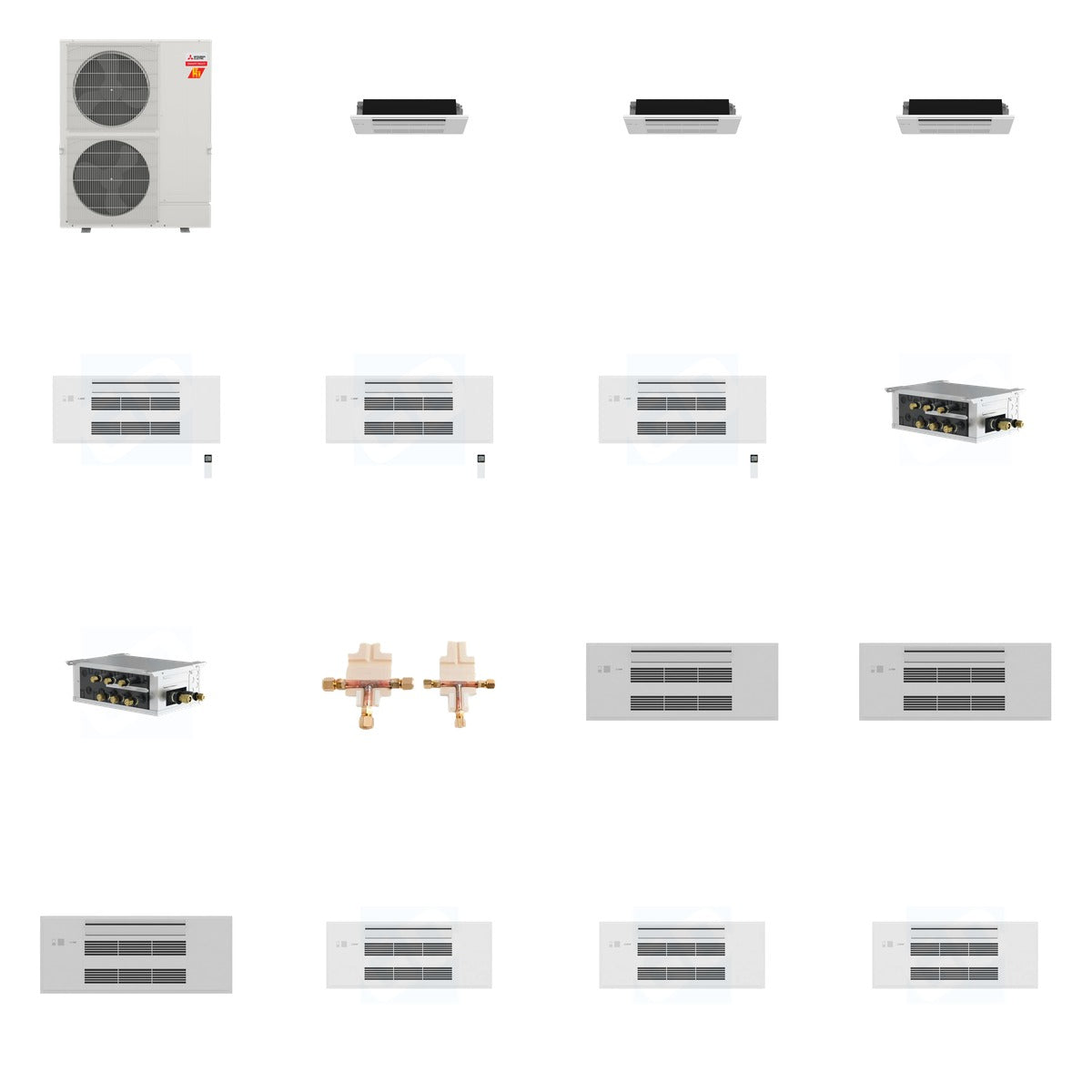

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x3)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x3)

Key Details

• Weight of Bundle: 403.1 lb (Mitsubishi 225 lb + Mitsubishi 102 lb + Mitsubishi 10.0 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 21 lb + Mitsubishi 30 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• SEER2: Up to 23 (MXZ-SM60NL)
• Voltage: 208/230 Volts (all units)
• Indoor Unit Capacity: 6,000 BTU (MLZ-KX06NL), 9,000 BTU (MLZ-KX09NL)
• Airflow: 152-311 CFM (varies by model)
• Noise Level: 26-58 dB(A) (varies by model)
• Dimensions: Varies by model (e.g., MXZ-SM60NL: 41-11/32 x 13 x 52-11/16 inches)
• Material: Copper (MSDD-50AR2-E), Plastic (grilles)

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling across various indoor environments. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, while the ceiling cassettes fit seamlessly between standard ceiling joists. The branch boxes and distribution kit ensure optimal refrigerant flow, making this package suitable for both residential and commercial applications.
