Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+9K+9K+18K

Description

This comprehensive HVAC bundle features a selection of high-quality Mitsubishi Electric products designed to provide efficient heating and cooling solutions for both residential and commercial environments. The centerpiece of this bundle is the Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, which connects to multiple indoor units for customized climate control. Complementing this outdoor unit are several one-way ceiling cassette indoor units (MLZ-KX06NL, MLZ-KX09NL, and MLZ-KX18NL) that fit seamlessly into standard ceiling joists, ensuring unobtrusive installation and optimal airflow. Additionally, the bundle includes essential branch boxes (PAC-LMA50BC and PAC-LMA30BC) for managing refrigerant flow, along with a branch pipe distribution kit (MSDD-50AR2-E) for efficient refrigerant distribution. With this bundle, you can achieve a versatile and effective multi-zone heating and cooling system.

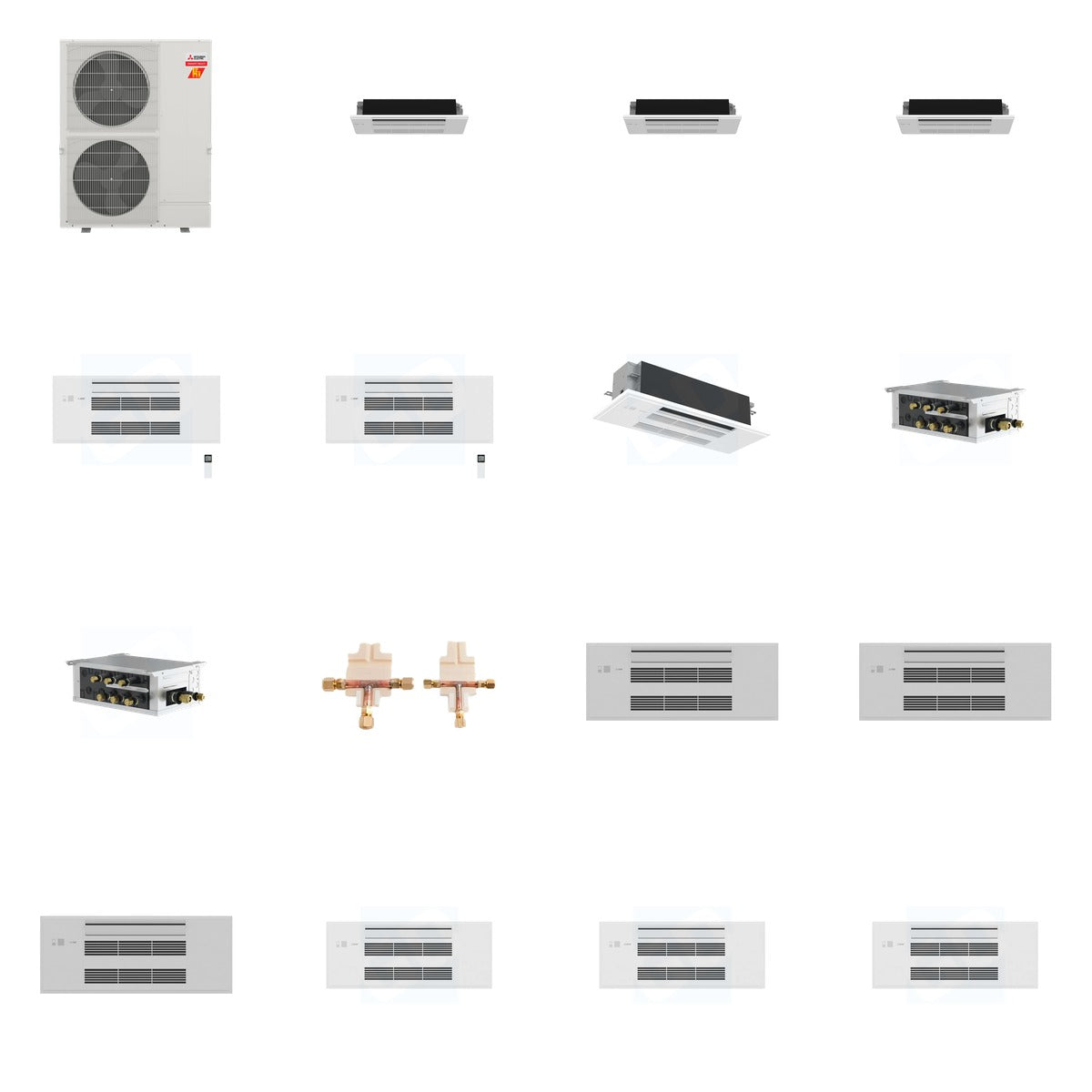

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC MLZ-KX09NL - 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX18NL - 18k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Grille for MLZ-KY Series (Qty x3)
• MITSUBISHI ELECTRIC MLP-449WU - Grille for MLZ Series Indoor Unit Ceiling Cassette (Qty x3)

Key Details

• Weight of Bundle: 403.1 lb (Mitsubishi 225 lb + Mitsubishi 102 lb + Mitsubishi 6.7 lb + Mitsubishi 3.3 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 21 lb + Mitsubishi 30 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-ton inverter condenser, ENERGY STAR rated
• MLZ-KX06NL: 6,000 BTU, suitable for up to 200 sq ft, Wi-Fi enabled, noise level 29-37 dB(A)
• MLZ-KX09NL: 9,000 BTU, suitable for up to 350 sq ft, Wi-Fi enabled, noise level 26-38 dB(A)
• MLZ-KX18NL: 18,000 BTU, cooling capacity 16,400 BTU, noise level 26-48 dB(A)
• PAC-LMA50BC: 5 ports, 208/230V, electronic LEVs for refrigerant flow management
• PAC-LMA30BC: 3 ports, 208/230V, ensures balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R-410A/R-454B
• MLP-448WU: Grille dimensions 16.5 x 38.5 x 4.25 inches, weight 7.9 lbs
• MLP-449WU: Grille dimensions compatible with MLZ Series, weight 7.9 lbs

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling across various indoor environments. The outdoor unit is compatible with multiple indoor units, allowing for flexible installation in residential and commercial spaces. The included branch boxes and distribution kit ensure optimal refrigerant management, making this bundle ideal for both new installations and upgrades to existing systems.
