Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+9K+18K

Description

This comprehensive bundle features essential components for a multi-zone HVAC system, designed specifically for optimal heating and cooling performance in both residential and commercial environments. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump unit serves as the powerhouse, capable of connecting to multiple indoor units for customized climate control. Complementing this are four ceiling cassette indoor units (MLZ-KX06NL, MLZ-KX09NL, MLZ-KX18NL) that provide versatile installation options and efficient airflow. Additionally, the bundle includes branch boxes (PAC-LMA50BC, PAC-LMA30BC) for effective refrigerant management, along with necessary distribution kits and grilles to ensure seamless operation and air circulation throughout the system.

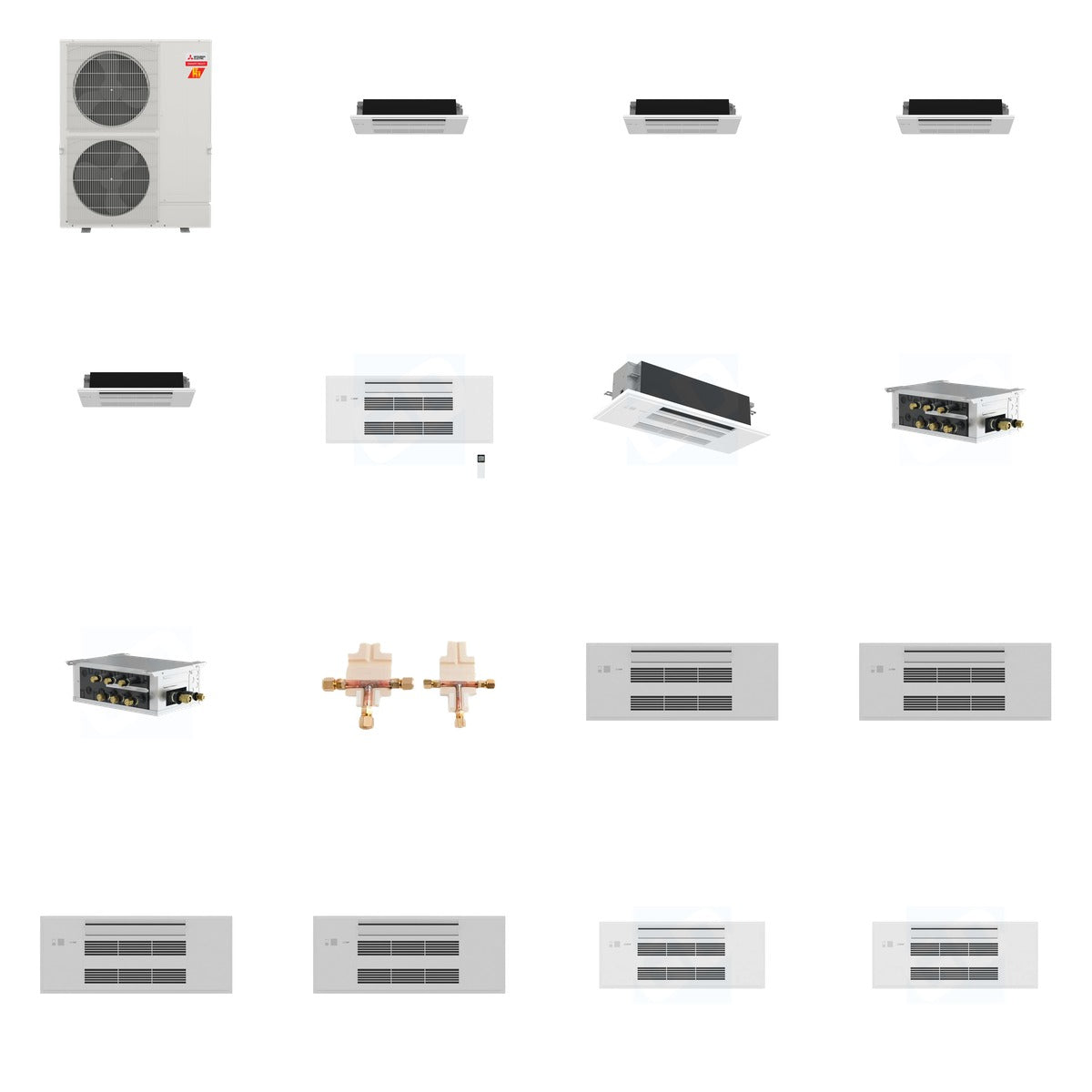

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x4)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX18NL - Mitsubishi Electric MLZ-KX18NL 18k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x4)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x2)

Key Details

• Weight of Bundle: 430.8 lb (Mitsubishi 225 lb + Mitsubishi 136 lb + Mitsubishi 3.3 lb + Mitsubishi 3.3 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 28 lb + Mitsubishi 20 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Unit Capacity: 6,000 BTU to 18,000 BTU (MLZ-KX Series)
• SEER2 Rating: Up to 23 (MXZ-SM60NL)
• Voltage: 208/230 Volts (All Units)
• Noise Level: As low as 26 dB(A) (MLZ-KX Series)
• Dimensions: Various sizes; MXZ-SM60NL: 41-11/32" W x 13" D x 52-11/16" H
• Material: High-quality copper and durable plastics (Branch Pipes)

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling across various indoor environments. The outdoor unit connects seamlessly with multiple indoor units, while the branch boxes and distribution kit ensure optimal refrigerant flow and temperature control. Ideal for both residential and commercial applications, this system is compatible with Mitsubishi Electric's M-Series and CITY MULTI indoor units.
