Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+12K+12K

Description

This comprehensive HVAC bundle is designed to provide optimal heating and cooling solutions for both residential and commercial spaces. Featuring the Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, this package allows for customized climate control with its ability to connect to multiple indoor units. Included are two one-way ceiling cassette indoor units (MLZ-KX12NL and MLZ-KX06NL) that fit seamlessly into various environments, along with essential branch boxes (PAC-LMA50BC and PAC-LMA30BC) to manage refrigerant flow efficiently. The bundle also includes high-quality branch pipe distribution kits (MSDD-50AR2-E) and grilles (MLP-448WU and MLP-449WU) to ensure proper air distribution and system performance. Together, these components create a versatile and efficient HVAC system tailored to meet diverse heating and cooling needs.

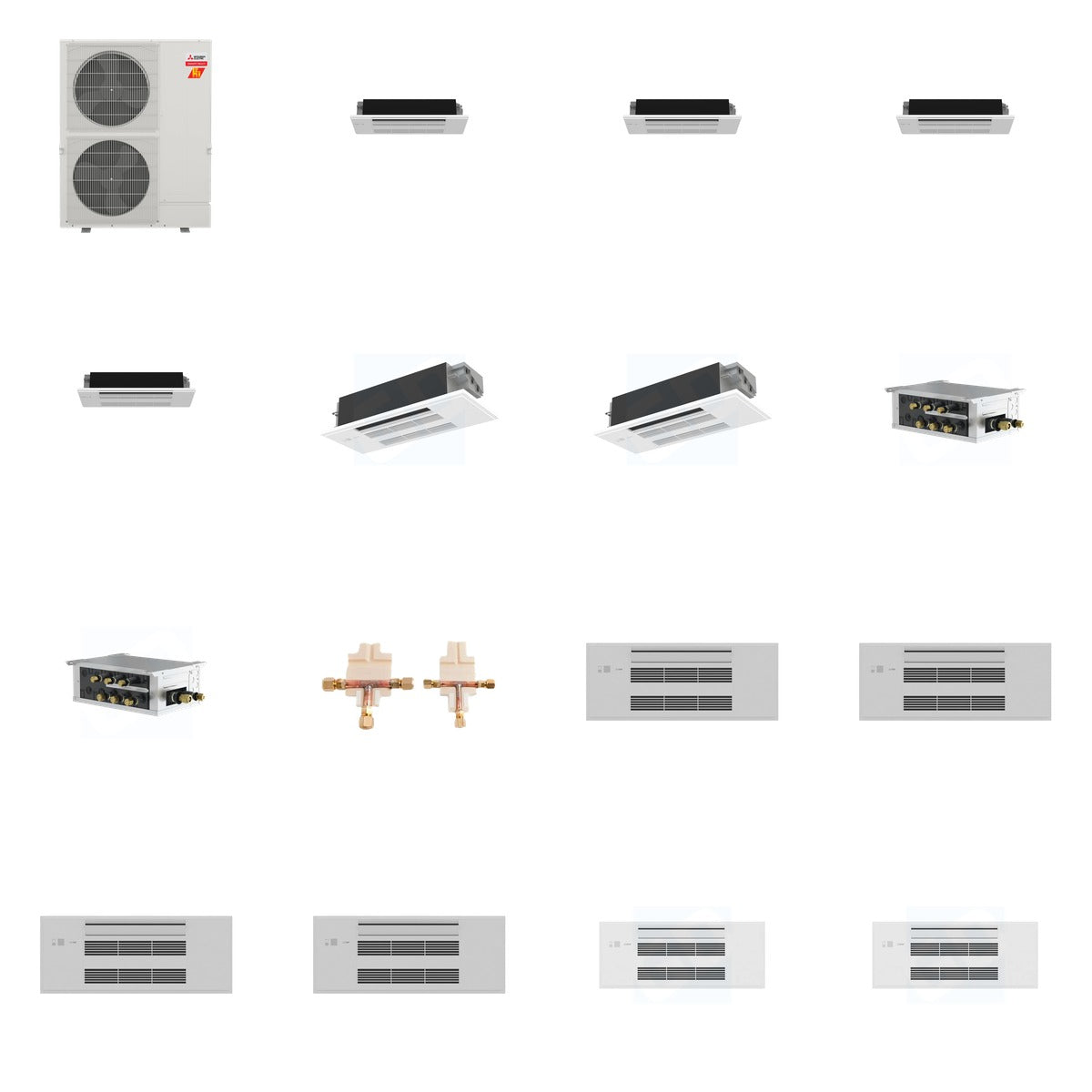

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x4)
• MITSUBISHI ELECTRIC MLZ-KX12NL - 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Grille for MLZ-KY Series (Qty x4)
• MITSUBISHI ELECTRIC MLP-449WU - Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x2)

Key Details

• Weight of Bundle: 492.1 lb (Mitsubishi 225 lb + Mitsubishi 136 lb + Mitsubishi 68 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 28 lb + Mitsubishi 20 lb)
• MXZ-SM60NL: 60,000 BTU Cooling, 66,000 BTU Heating, SEER2 up to 23
• MLZ-KX06NL: 6,000 BTU Cooling, 7,200 BTU Heating, Wi-Fi Enabled
• MLZ-KX12NL: 12,000 BTU Cooling, 15,400 BTU Heating, Wi-Fi Enabled
• PAC-LMA50BC: 5 Ports, 208/230 Volts
• PAC-LMA30BC: 3 Ports, 208/230 Volts
• MSDD-50AR2-E: Flare Connection, Oxygen-Free Copper
• MLP-448WU: Dimensions 16.5" x 38.5" x 4.25"
• MLP-449WU: Designed for MLZ Series, Dimensions 16.5" x 38.5" x 4.25"

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling across various spaces. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, while the ceiling cassettes fit seamlessly into standard ceiling joists. The branch boxes and distribution kits ensure optimal refrigerant management, making this bundle suitable for both residential and commercial applications.
