Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+12K+12K+12K

Description

This comprehensive bundle features essential components for creating an efficient multi-zone HVAC system. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump serves as the backbone, providing robust heating and cooling capabilities for up to eight indoor units. Paired with three MLZ-KX06NL and three MLZ-KX12NL ceiling cassette units, this setup ensures optimal climate control across various spaces, making it ideal for both residential and commercial applications. The included PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit ensures balanced performance. Completing the bundle, the MLP-448WU and MLP-449WU grilles enhance air circulation, ensuring maximum efficiency and comfort throughout your environment.

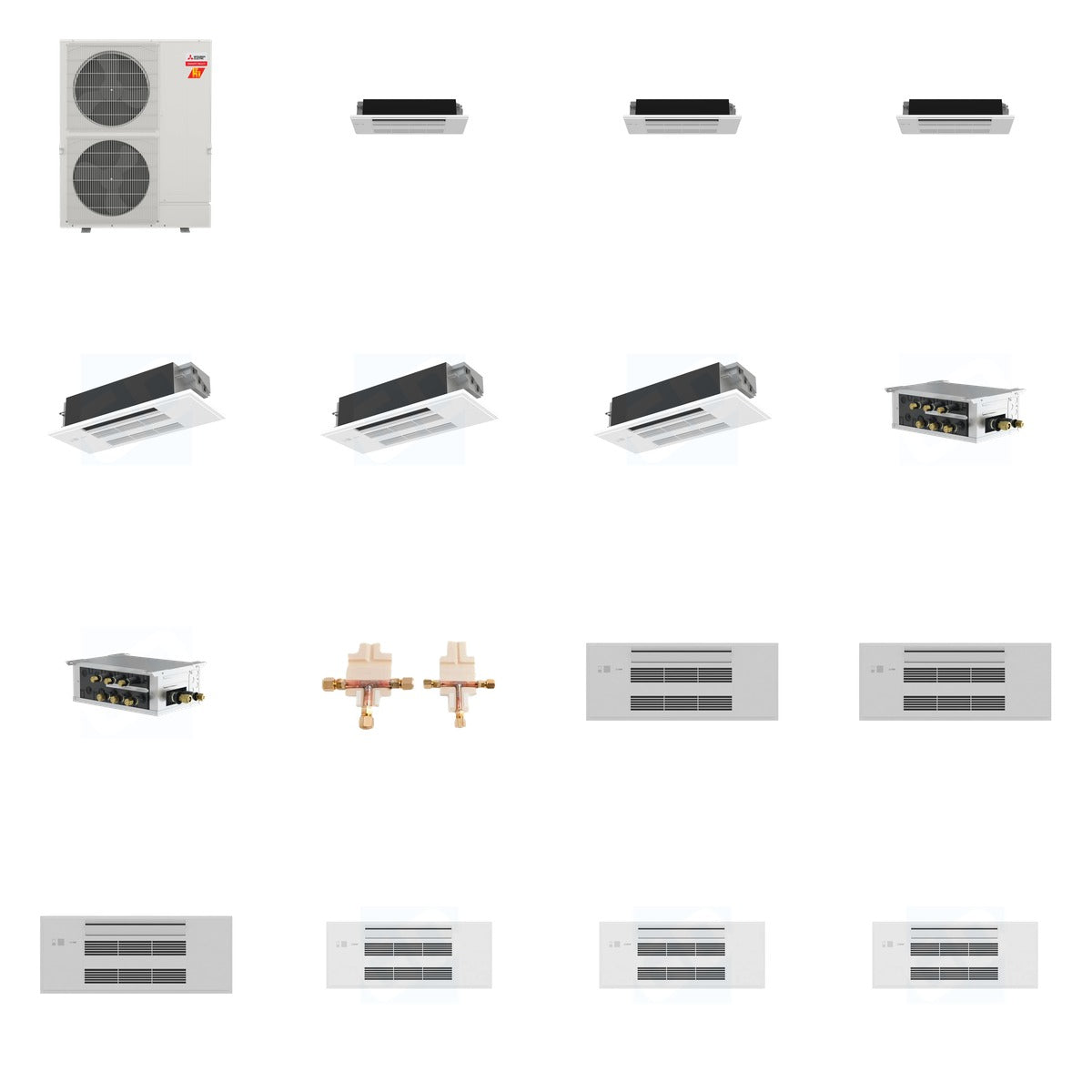

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x3)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x3)

Key Details

• Weight of Bundle: 495.1 lb (Mitsubishi 225 lb + Mitsubishi 102 lb + Mitsubishi 102 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 21 lb + Mitsubishi 30 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL), 6,000 BTU (MLZ-KX06NL), 12,000 BTU (MLZ-KX12NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL), 7,200 BTU (MLZ-KX06NL), 15,400 BTU (MLZ-KX12NL)
• SEER2: Up to 23 (MXZ-SM60NL)
• Voltage: 208/230 Volts
• Dimensions: MXZ-SM60NL - 41-11/32" W x 13" D x 52-11/16" H; MLZ-KX06NL - 33-3/16" W x 11-7/8" D x 7-11/16" H; MLZ-KX12NL - 43-3/8" W x 14-3/16" D x 7-5/16" H
• Weight: MXZ-SM60NL - 150 lbs; MLZ-KX06NL - 25 lbs; MLZ-KX12NL - 34 lbs
• Material: Copper (MSDD-50AR2-E), Durable Plastic (Grilles)

Use & Compatibility

This bundle is designed for multi-zone HVAC systems, providing efficient heating and cooling for various indoor spaces. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, while the ceiling cassettes are ideal for installation in residential and commercial environments. The branch boxes and distribution kit ensure optimal refrigerant flow, making this bundle a complete solution for effective climate control.
