Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+12K+12K+12K+12K

Description

This comprehensive HVAC bundle is designed to provide optimal heating and cooling solutions for both residential and commercial environments. Featuring the Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, this bundle allows for versatile climate control with the ability to connect multiple indoor units. Complementing the outdoor unit are the MLZ-KX06NL and MLZ-KX12NL one-way ceiling cassette indoor units, perfect for efficient air distribution in various settings. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes ensure effective refrigerant management, while the MSDD-50AR2-E distribution kit enhances system performance. With the inclusion of essential grilles, this bundle offers everything needed for a complete and efficient HVAC installation.

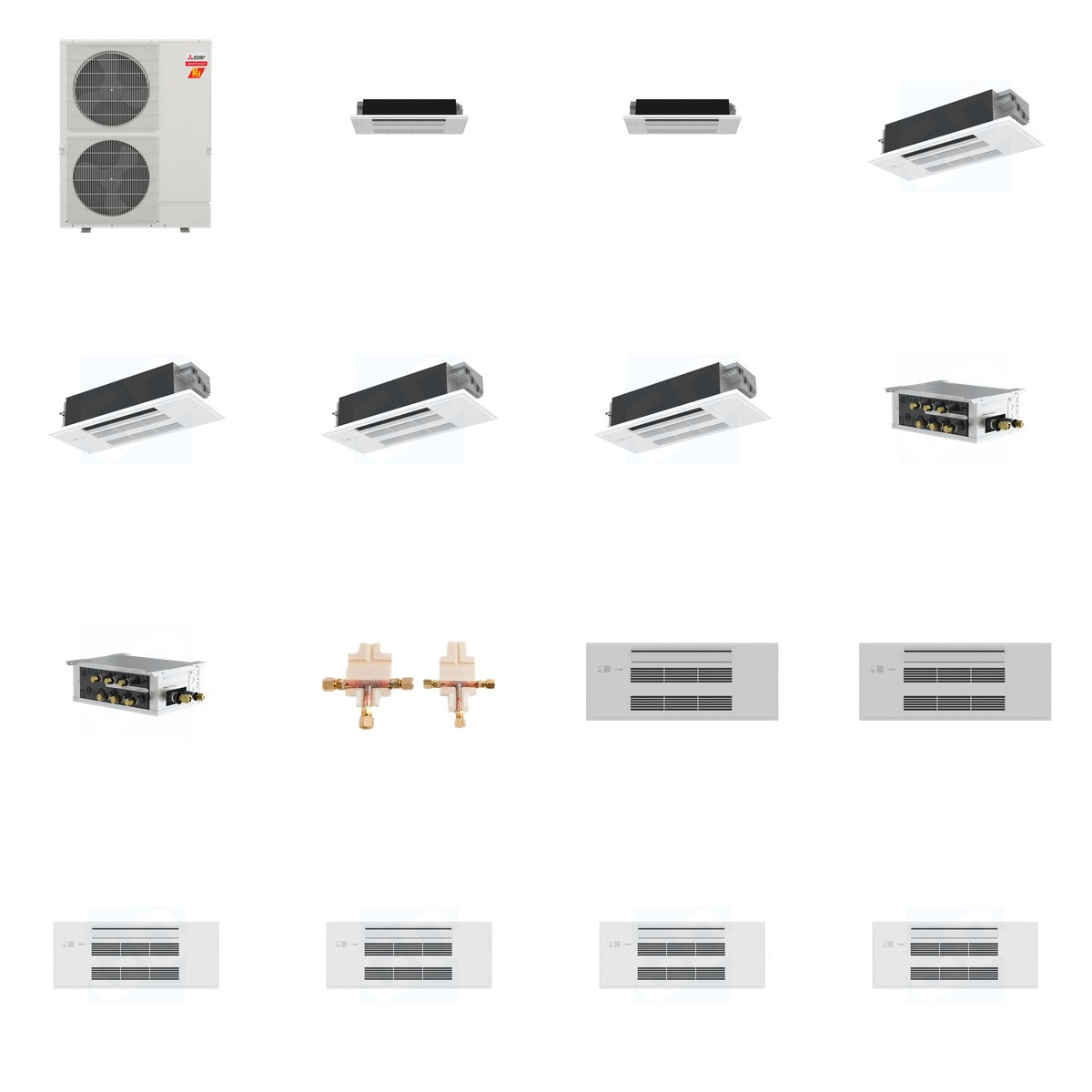

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX12NL - 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x4)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Grille for MLZ-KY Series (Qty x2)
• MITSUBISHI ELECTRIC MLP-449WU - Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x4)

Key Details

• Weight of Bundle: 498.1 lb (Mitsubishi 225 lb + Mitsubishi 68 lb + Mitsubishi 136 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 14 lb + Mitsubishi 40 lb)
• MXZ-SM60NL: 60,000 BTU, SEER2 up to 23, 5-Ton capacity, dimensions 41-11/32" W x 13" D x 52-11/16" H
• MLZ-KX06NL: 6,000 BTU, dimensions 33-3/16" W x 11-7/8" D x 7-11/16" H, Wi-Fi enabled
• MLZ-KX12NL: 12,000 BTU, dimensions 43-3/8" W x 14-3/16" D x 7-5/16" H, Wi-Fi enabled
• PAC-LMA50BC: 5 ports, 208/230 Volts, dimensions 17-3/4" W x 11-1/16" D x 6-3/4" H
• PAC-LMA30BC: 3 ports, 208/230 Volts, dimensions 17-3/4" W x 11-1/16" D x 6-3/4" H
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B, dimensions 11.5" L x 6.2" W x 4.8" H
• MLP-448WU: dimensions 16.5" W x 38.5" L x 4.25" H
• MLP-449WU: dimensions 16.5" W x 38.5" L x 4.25" H

Use & Compatibility

This bundle is ideal for multi-zone HVAC systems, providing both heating and cooling capabilities. The outdoor unit is compatible with various Mitsubishi Electric indoor units, including the MLZ-KX series, ensuring efficient climate control across different spaces. The included branch boxes and distribution kit facilitate optimal refrigerant flow, enhancing system performance and reliability.
