Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 6-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+12K+12K+12K+12K+12K

Description

This comprehensive HVAC bundle includes essential components for creating an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, delivering up to 60,000 BTU of cooling capacity. It connects seamlessly with five ceiling cassette indoor units (MLZ-KX06NL and MLZ-KX12NL), providing customizable comfort in various spaces. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitate optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit ensures balanced performance across all units. Additionally, the grilles (MLP-448WU and MLP-449WU) enhance airflow efficiency, making this bundle a perfect solution for both residential and commercial applications.

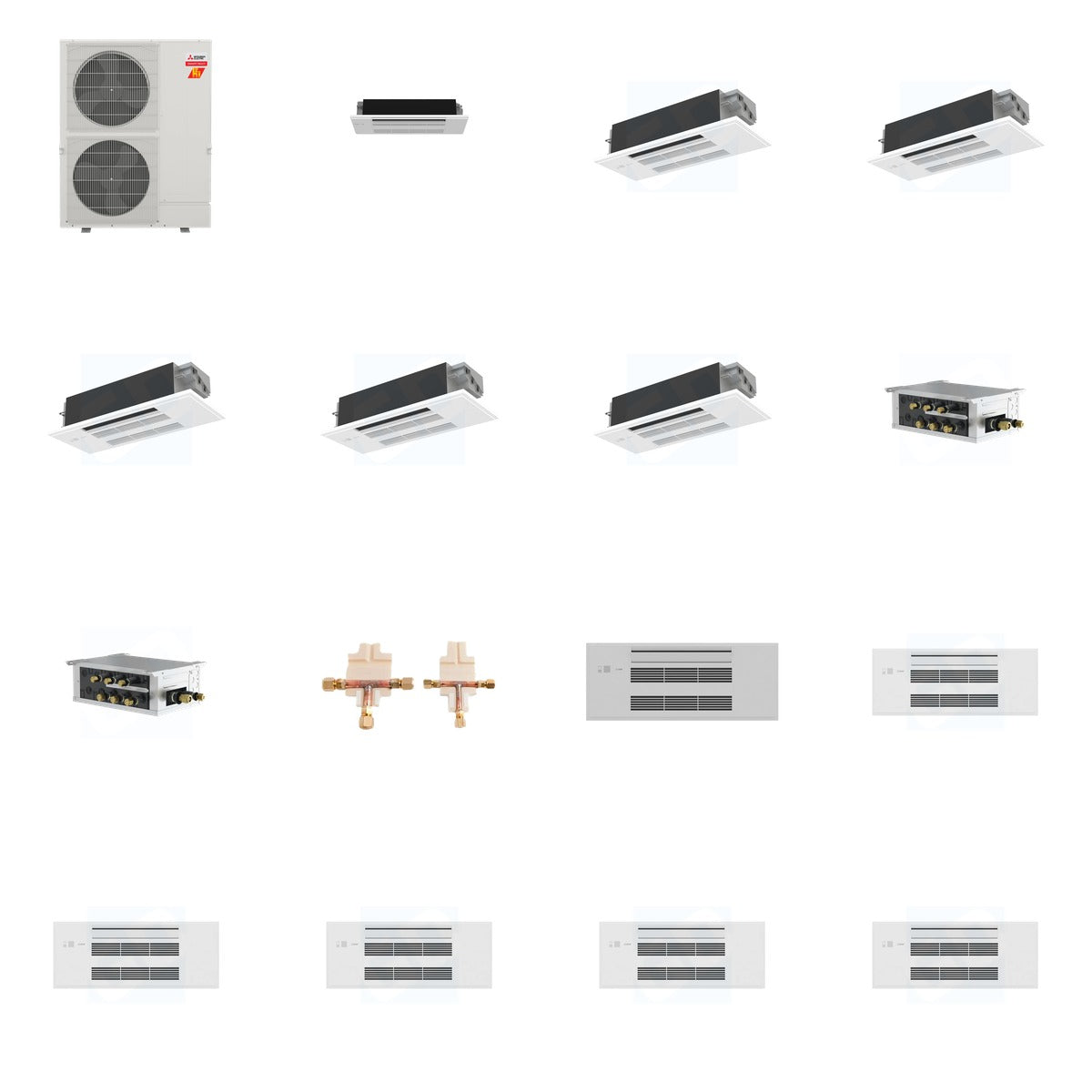

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x5)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x1)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x5)

Key Details

• Weight of Bundle: 501.1 lb (Mitsubishi 225 lb + Mitsubishi 34 lb + Mitsubishi 170 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 7 lb + Mitsubishi 50 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Unit Capacity: 6,000 BTU (MLZ-KX06NL), 12,000 BTU (MLZ-KX12NL)
• SEER2: Up to 23 (MXZ-SM60NL)
• Voltage: 208/230V (All Units)
• Dimensions: Vary by unit; MXZ-SM60NL: 41-11/32 x 13 x 52-11/16 inches
• Material: High-grade copper (MSDD-50AR2-E)

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, ideal for both residential and commercial applications. The outdoor unit is compatible with various indoor units, allowing for customized heating and cooling solutions. The branch boxes and distribution kit ensure efficient refrigerant flow, while the grilles optimize air distribution, enhancing overall system performance.
