Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 5-Zone Wall-Mounted Mini Split Heat Pump System - 9K+12K+12K+12K+15K

Description

This comprehensive bundle features the Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, paired with three advanced wall-mounted air handlers (MSZ-GX09NL, MSZ-GX12NL, and MSZ-GX15NL) and a 5-port branch box (PAC-LMA50BC). Together, these components create a highly efficient multi-zone heating and cooling system suitable for both residential and commercial applications. The outdoor unit connects seamlessly to the indoor air handlers, allowing for customized temperature control across different zones. With built-in Wi-Fi and advanced filtration systems, this bundle not only ensures comfort but also promotes energy efficiency and air quality.

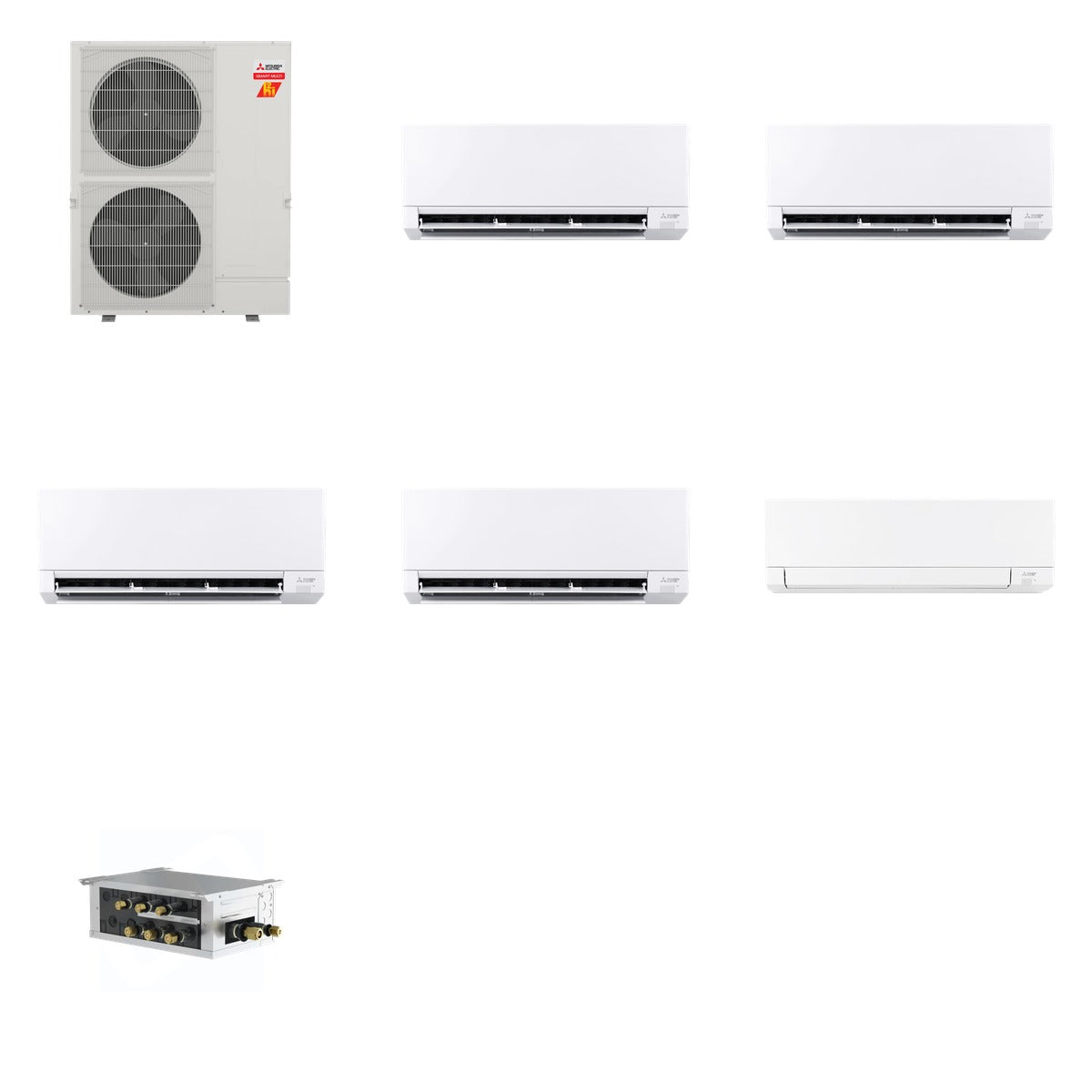

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - 9k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX12NL - 12k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX15NL - 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 342 lb (Mitsubishi 225 lb + Mitsubishi 22 lb + Mitsubishi 66 lb + Mitsubishi 22 lb + Mitsubishi 7 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• Indoor Units: 9,000 BTU (GX09NL), 12,000 BTU (GX12NL), 15,000 BTU (GX15NL)
• SEER2 Ratings: Up to 23 (MXZ-SM60NL), Up to 28.4 (GX09NL, GX12NL)
• Refrigerant Type: R454B
• Voltage: 208/230 Volts
• Sound Level: As low as 19 dB(A) (GX09NL, GX12NL)
• Dimensions: Vary by unit, with the outdoor unit measuring 41-11/32 in W x 13 in D x 52-11/16 in H

Use & Compatibility

This bundle is designed for use in multi-zone heating and cooling applications, making it ideal for both residential and commercial environments. The outdoor unit is compatible with various Mitsubishi Electric indoor units, allowing for flexible configurations to meet specific climate control needs.
