Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 5-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 12K+12K+15K+15K+15K

Description

This comprehensive bundle features essential components for creating an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, delivering up to 60,000 BTU of cooling and 66,000 BTU of heating. Paired with two SLZ-AF12NL and one SLZ-AF15NL air handlers, this setup allows for optimal temperature control across various zones. The PAC-LMA50BC branch box ensures seamless refrigerant flow management, while the SLP-18FAU grilles provide the finishing touch for air distribution. Together, these products create a versatile and effective climate control solution for both residential and commercial applications.

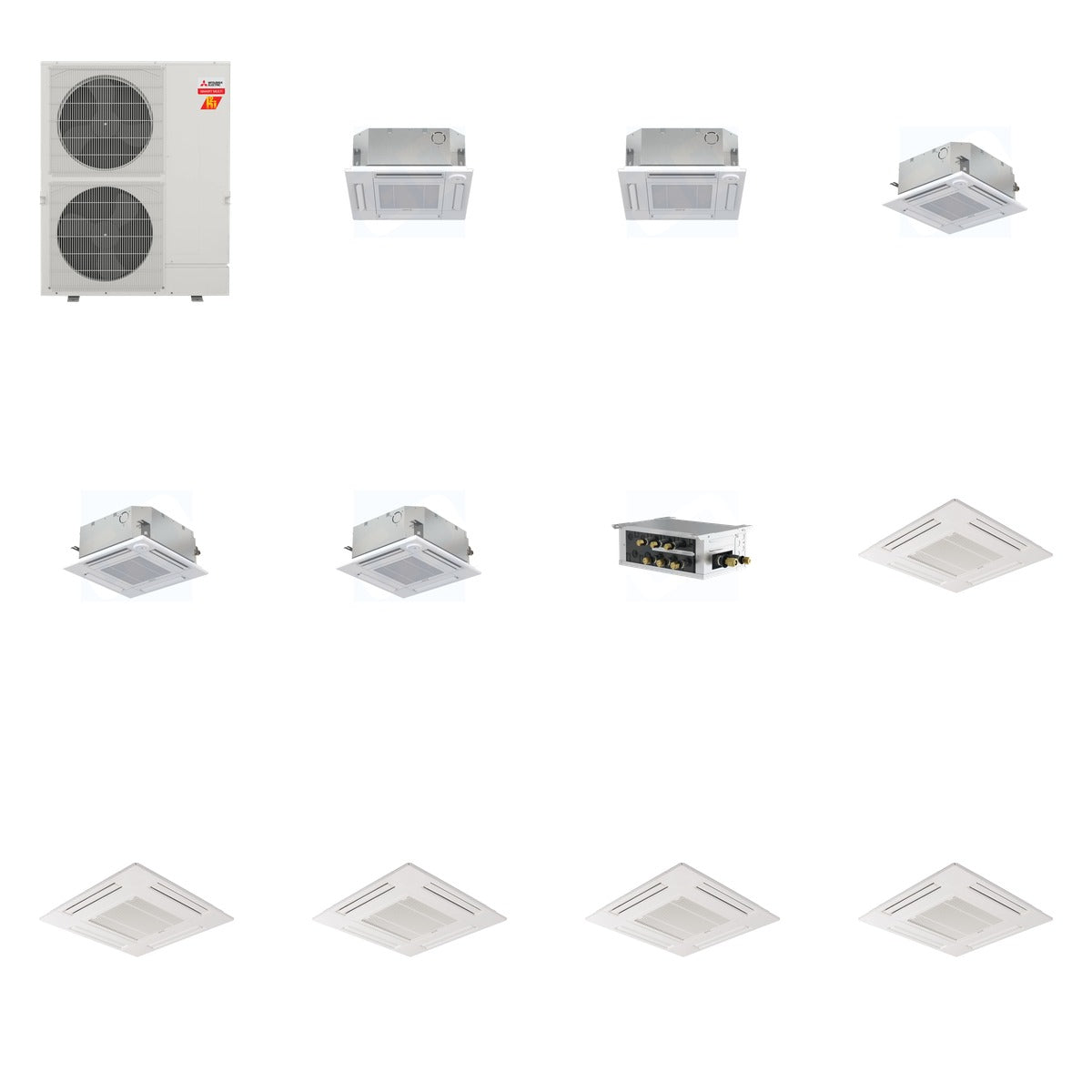

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF12NL - Mitsubishi Electric SLZ-AF12NL M-Series - Multi or Single-Zone - 12k BTU - R-454B (Qty x2)
• MITSUBISHI ELECTRIC SLZ-AF15NL - Mitsubishi Electric SLZ-AF15NL M-Series - Multi or Single-Zone - 15k BTU - R-454B (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x5)

Key Details

• Weight of Bundle: 432 lb (Mitsubishi 225 lb + Mitsubishi 66 lb + Mitsubishi 99 lb + Mitsubishi 7 lb + Mitsubishi 35 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• SEER2 Rating: Up to 23 (MXZ-SM60NL)
• Voltage: 208/230 V (All units)
• Airflow: 230-335 CFM (SLZ-AF12NL and SLZ-AF15NL)
• Dimensions: 41-11/32 x 13 x 52-11/16 inches (MXZ-SM60NL)
• Sound Level: As low as 27 dB(A) (SLZ-AF15NL)

Use & Compatibility

This bundle is designed for residential and commercial applications, providing efficient heating and cooling across multiple zones. The MXZ-SM60NL outdoor unit is compatible with various indoor units, including the SLZ-AF12NL and SLZ-AF15NL air handlers, making it a versatile choice for diverse environments. The included branch box and grilles ensure optimal refrigerant flow and air distribution, enhancing overall system performance.
