Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 4-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 9K+9K+9K+15K

Description

This comprehensive bundle features essential components for creating an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor heat pump unit serves as the backbone, providing powerful 60,000 BTU capacity to support multiple indoor units. Paired with three wall-mounted air handlers, the MSZ-FX09NL and MSZ-FX15NL, this setup ensures optimal comfort in various room sizes with advanced filtration and smart technology. The PAC-LMA50BC branch box facilitates seamless refrigerant flow management, making it an ideal choice for residential and commercial applications.

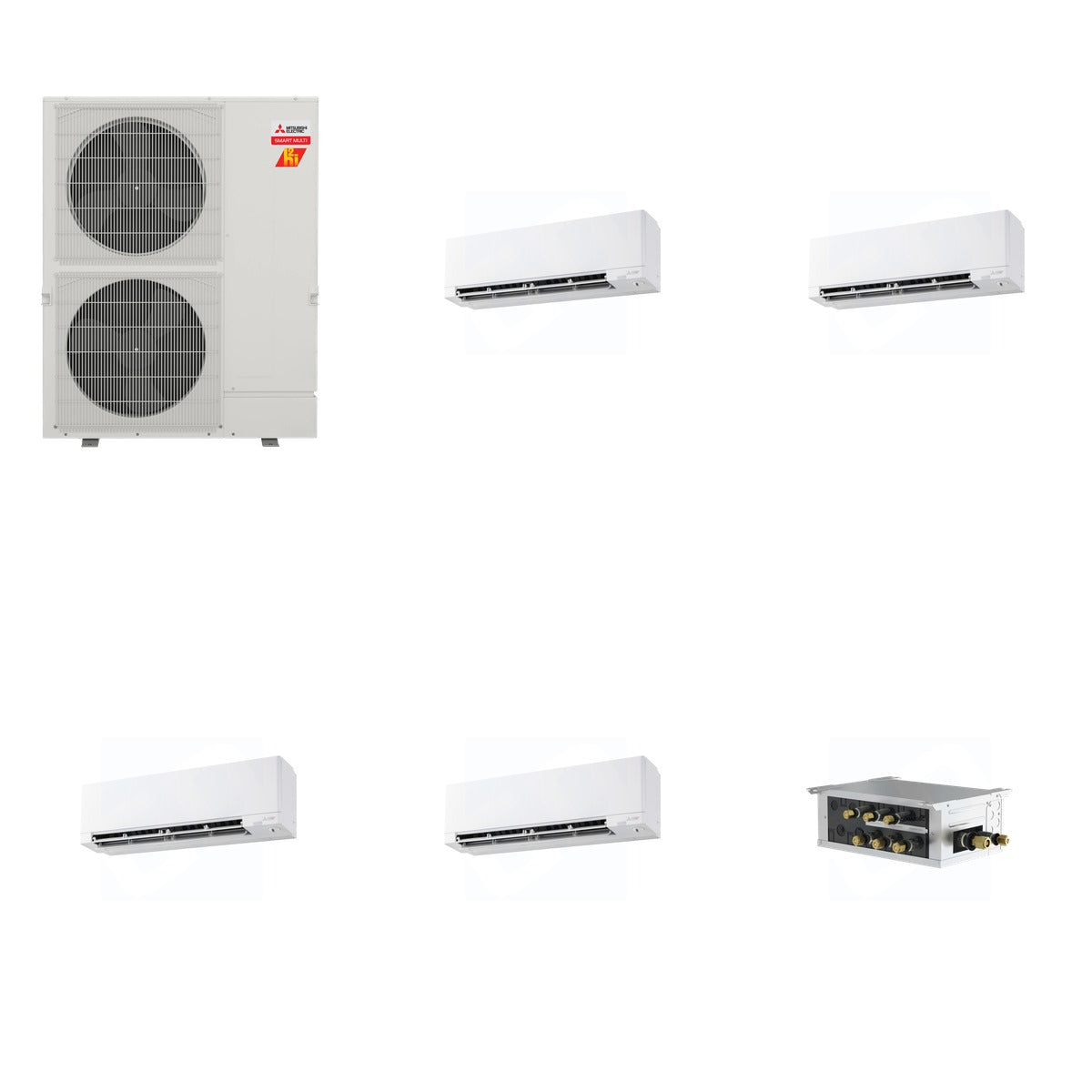

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 377.6 lb (Mitsubishi 225 lb + Mitsubishi 109.2 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL), 9,000 BTU (MSZ-FX09NL), 15,000 BTU (MSZ-FX15NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL), 12,000 BTU (MSZ-FX09NL), 18,000 BTU (MSZ-FX15NL)
• SEER2 Rating: Up to 23 (MXZ-SM60NL), Up to 20.0 (MSZ-FX15NL)
• Refrigerant Type: R-454B
• Voltage: 208/230 Volts
• Dimensions: 41-11/32" W x 13" D x 52-11/16" H (MXZ-SM60NL), 39.27" W x 9.75" D x 12" H (MSZ-FX09NL/MSZ-FX15NL)
• Sound Level: As low as 20 dB(A) (MSZ-FX09NL), 49 dB(A) (MSZ-FX15NL)
• Branch Box Ports: 5 (PAC-LMA50BC)

Use & Compatibility

This bundle is designed for use in multi-zone heating and cooling systems, making it suitable for both residential and commercial environments. The outdoor unit connects seamlessly with the wall-mounted air handlers, providing customizable climate control. The branch box efficiently manages refrigerant flow to up to five indoor units, ensuring optimal performance across various spaces.
