Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 4-Zone 3'x3' Ceiling Cassette Mini Split Heat Pump System - 12K+12K+12K+36K

Description

This comprehensive HVAC bundle features high-performance equipment from Mitsubishi Electric, designed to deliver efficient heating and cooling for both residential and commercial applications. The MXZ-SM60NL multi-zone heat pump outdoor unit serves as the backbone, connecting up to eight indoor units for customized climate control. Complementing this are three advanced 4-way cassette air handlers (PLA-AE12NL and PLA-AE36NL), which provide discreet and effective temperature modulation. The PAC-LMA50BC branch box ensures optimal refrigerant flow management, while the PLP-41EAEU grille enhances airflow and system performance. Together, these components create a robust and flexible heating and cooling solution tailored to diverse environments.

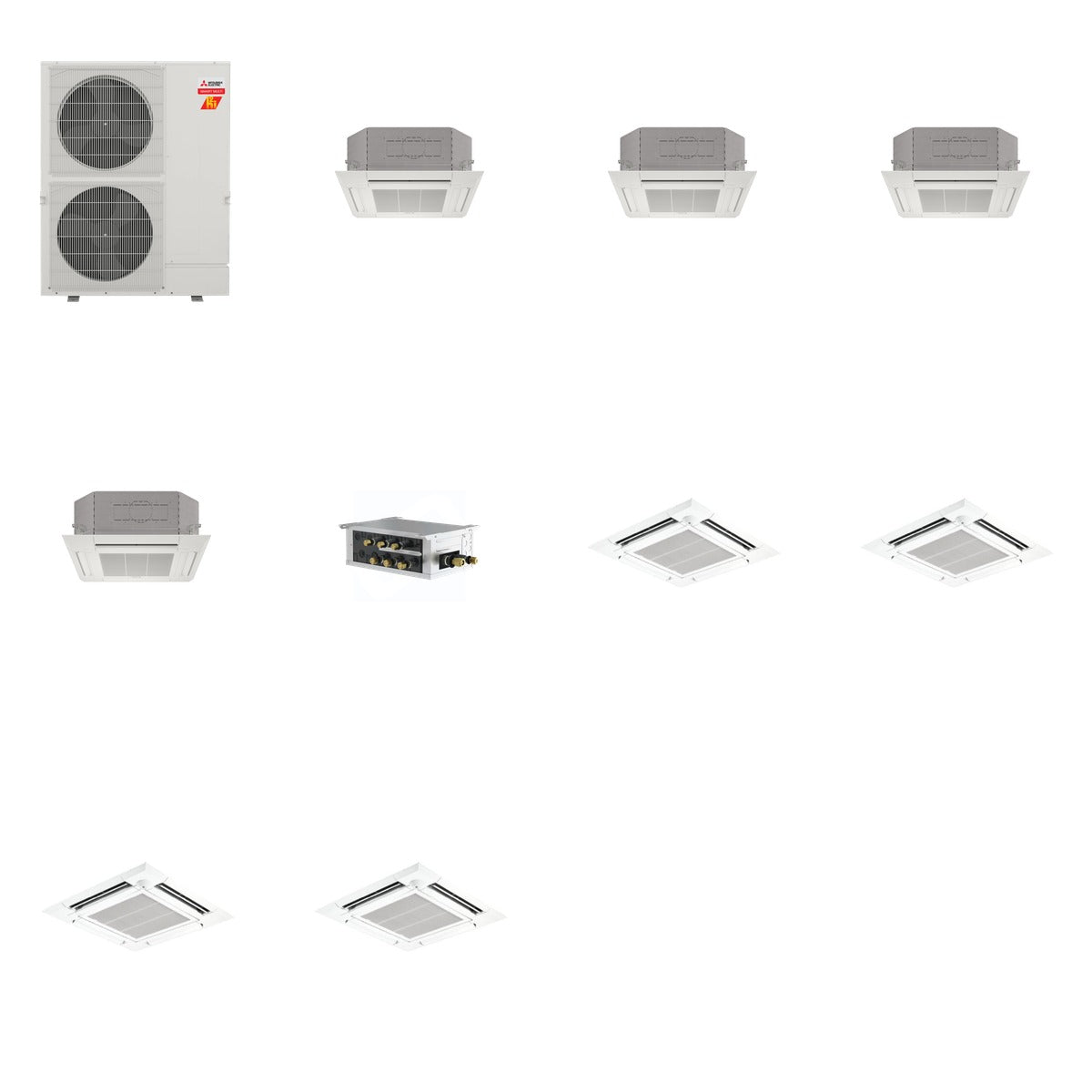

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)

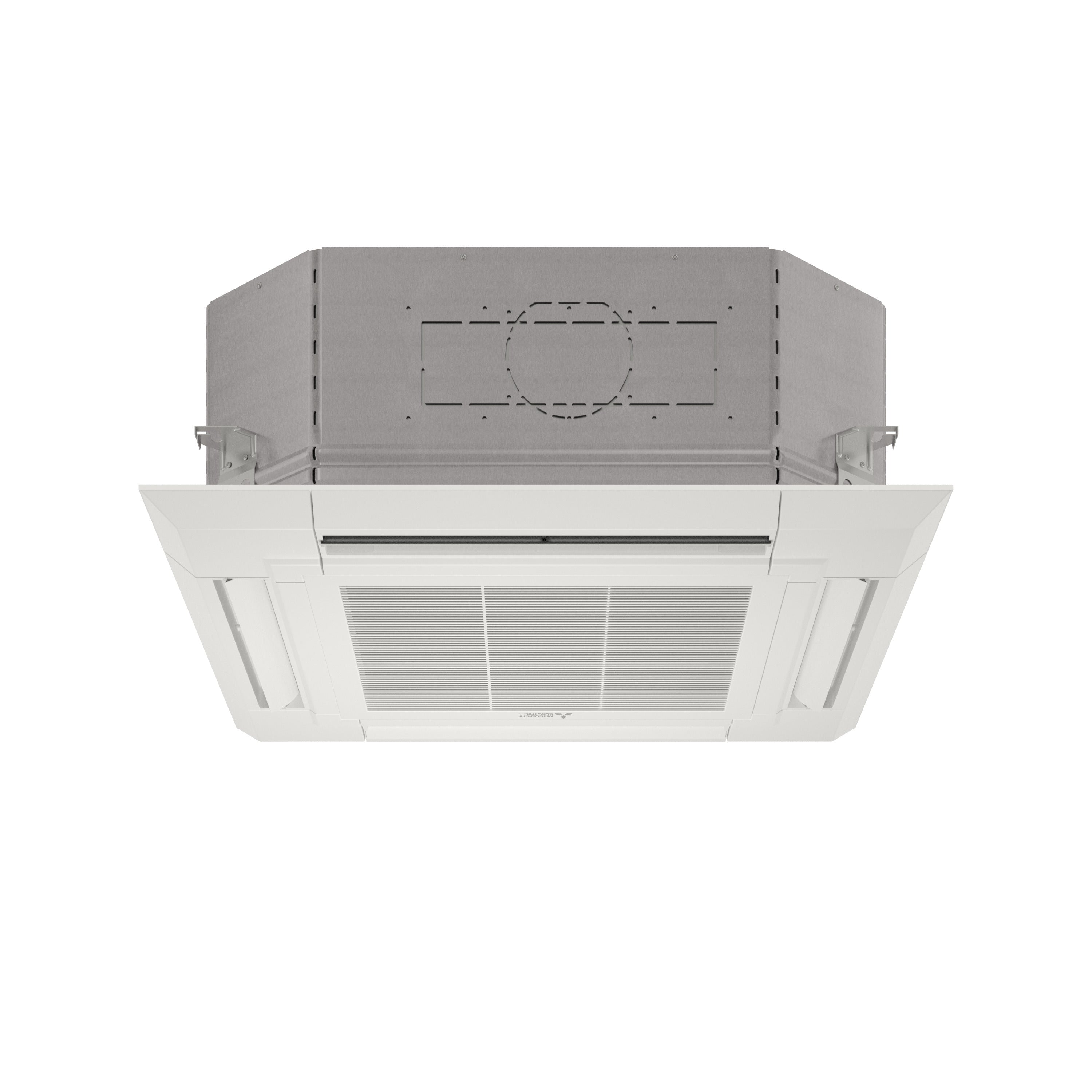

• MITSUBISHI ELECTRIC PLA-AE12NL - Mitsubishi Electric PLA-AE12NL R454B: 12,000 BTU 4-Way Cassette Air Handler (Qty x3)
• MITSUBISHI ELECTRIC PLA-AE36NL - Mitsubishi Electric PLA-AE36NL R454B: 36,000 BTU 4-Way Cassette Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PLP-41EAEU - Mitsubishi Electric PLP-41EAEU Ceiling Cassette Grille (Qty x4)

Key Details

• Weight of Bundle: 467 lb (Mitsubishi 225 lb + Mitsubishi 138 lb + Mitsubishi 53 lb + Mitsubishi 7 lb + Mitsubishi 44 lb)
• MXZ-SM60NL: 60,000 BTU cooling capacity, 66,000 BTU heating capacity, SEER2 up to 23, dimensions 41-11/32" W x 13" D x 52-11/16" H
• PLA-AE12NL: 12,000 BTU cooling, 13,500 BTU heating, SEER2 up to 21.9, sound level as low as 28 dB(A), dimensions 33-1/16" W x 33-1/16" D x 11-3/4" H
• PLA-AE36NL: 36,000 BTU cooling, 40,000 BTU heating, SEER2 23.3, sound level up to 44 dB(A), dimensions 33-1/16" W x 33-1/16" D x 11-3/4" H
• PAC-LMA50BC: 5 ports, compatible with MXZ units, dimensions 17-3/4" W x 11-1/16" D x 6-3/4" H
• PLP-41EAEU: Weight 15 lbs, designed for ceiling cassette systems

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, suitable for both residential and commercial spaces. The outdoor unit connects seamlessly with the cassette air handlers and branch box, ensuring efficient operation and optimal comfort across various environments. The included grille is specifically designed for use with Mitsubishi Electric systems, enhancing overall performance.
