Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 3-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+9K+9K

Description

This comprehensive HVAC bundle is designed for those seeking efficient heating and cooling solutions in both residential and commercial settings. The Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit serves as the powerhouse of the system, capable of supporting up to eight indoor units. Complementing this outdoor unit are two wall-mounted air handlers, the MSZ-FX06NL and MSZ-FX09NL, which provide flexible temperature control in individual rooms. The PAC-LMA30BC 3-Port Branch Box ensures optimal refrigerant distribution, allowing for seamless integration of the indoor units. Together, these components create a versatile and energy-efficient climate control system tailored to your needs.

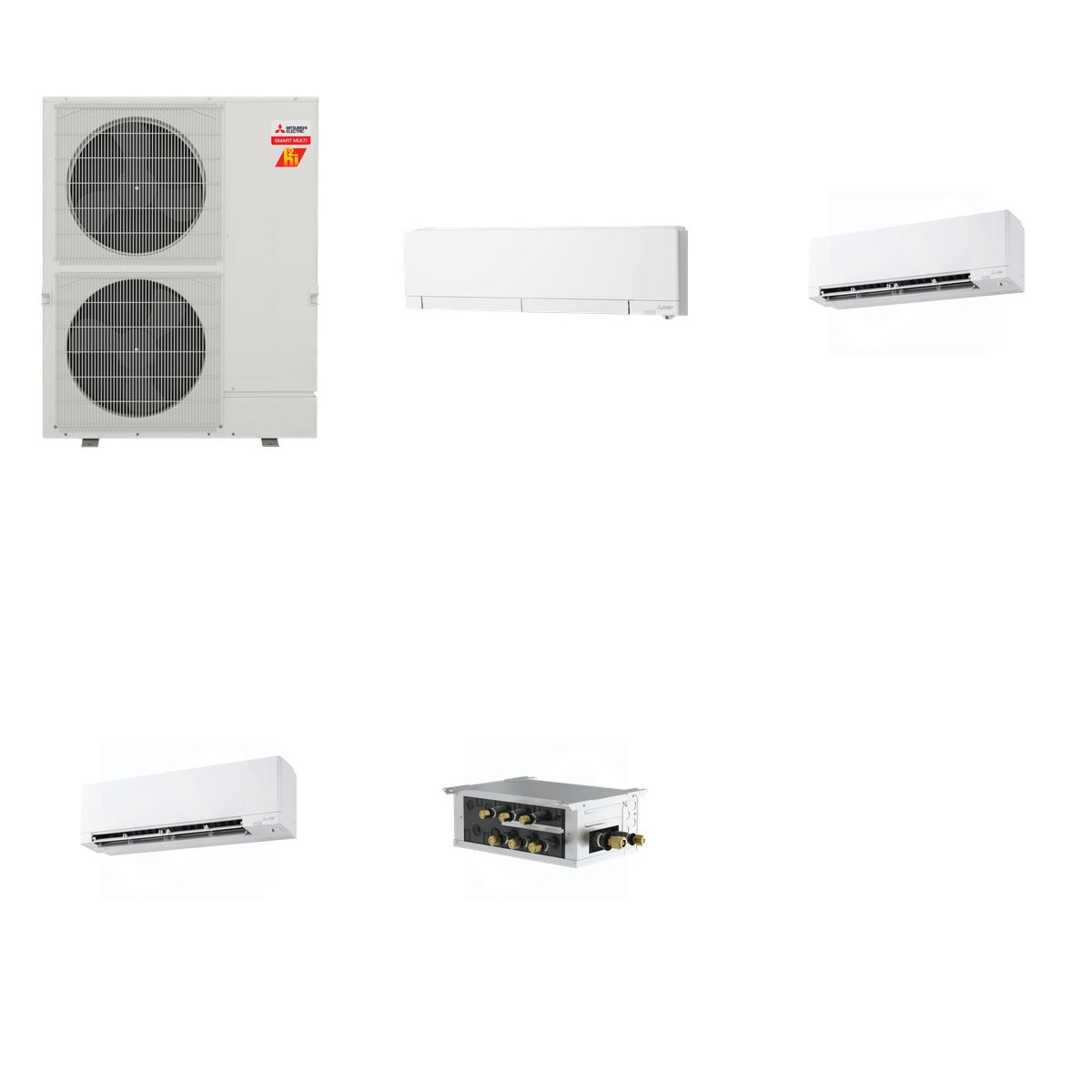

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 331.8 lb (Mitsubishi 225 lb + Mitsubishi 29 lb + Mitsubishi 72.8 lb + Mitsubishi 5 lb)
• Outdoor Unit Capacity: 60,000 BTU
• Indoor Unit Capacities: 6,000 BTU (MSZ-FX06NL), 9,000 BTU (MSZ-FX09NL)
• SEER2 Ratings: Up to 23 (MXZ-SM60NL), Up to 35 (MSZ-FX06NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL), 9,000 BTU (MSZ-FX06NL), 12,000 BTU (MSZ-FX09NL)
• Voltage: 208/230 Volts
• Dimensions: MXZ-SM60NL - 41-11/32 in W x 13 in D x 52-11/16 in H; MSZ-FX06NL & MSZ-FX09NL - 39.27 in W x 12 in H x 9.75 in D
• Sound Level: MXZ-SM60NL - as low as 58 dB(A); MSZ-FX06NL - 20-42 dB; MSZ-FX09NL - 20-44 dB
• Refrigerant Type: R454B

Use & Compatibility

This HVAC bundle is ideal for both residential and commercial applications, providing efficient heating and cooling across multiple zones. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, while the wall-mounted air handlers are designed for easy installation and operation in single or multi-zone configurations.
