Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 3-Zone 3'x3' Ceiling Cassette Mini Split Heat Pump System - 12K+24K+36K

Description

This comprehensive bundle includes everything you need for an efficient and effective multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM60NL outdoor unit serves as the powerhouse, capable of connecting to multiple indoor units for customized climate control. Complementing this unit are the PLA-AE12NL, PLA-AE24NL, and PLA-AE36NL ceiling cassette air handlers, each designed for discreet installation and optimal performance in various settings. The PAC-LMA30BC branch box ensures balanced refrigerant flow among the indoor units, while the PLP-41EAEU grilles enhance airflow and system efficiency. Together, these components create a cohesive and high-performing HVAC solution suitable for both residential and commercial applications.

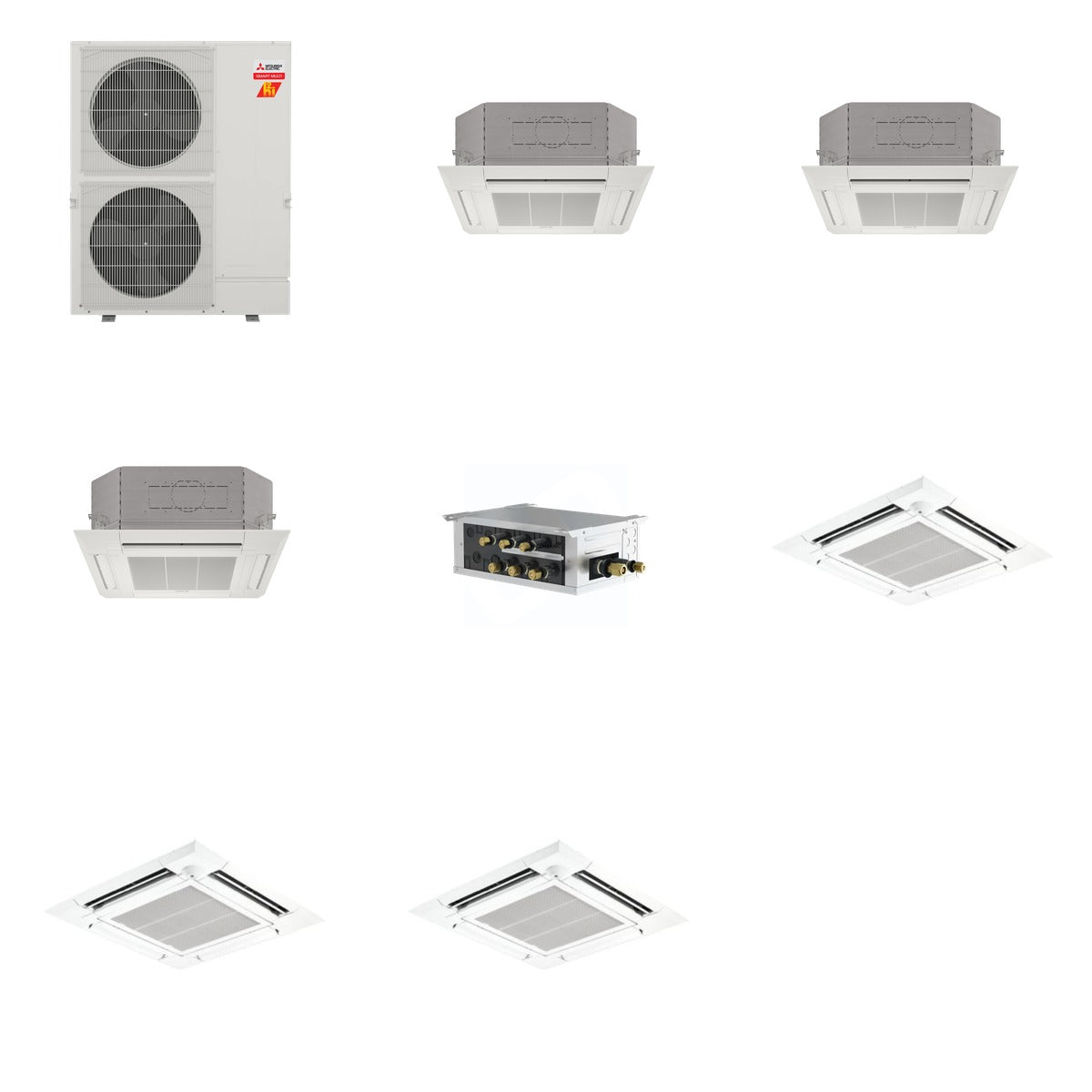

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)

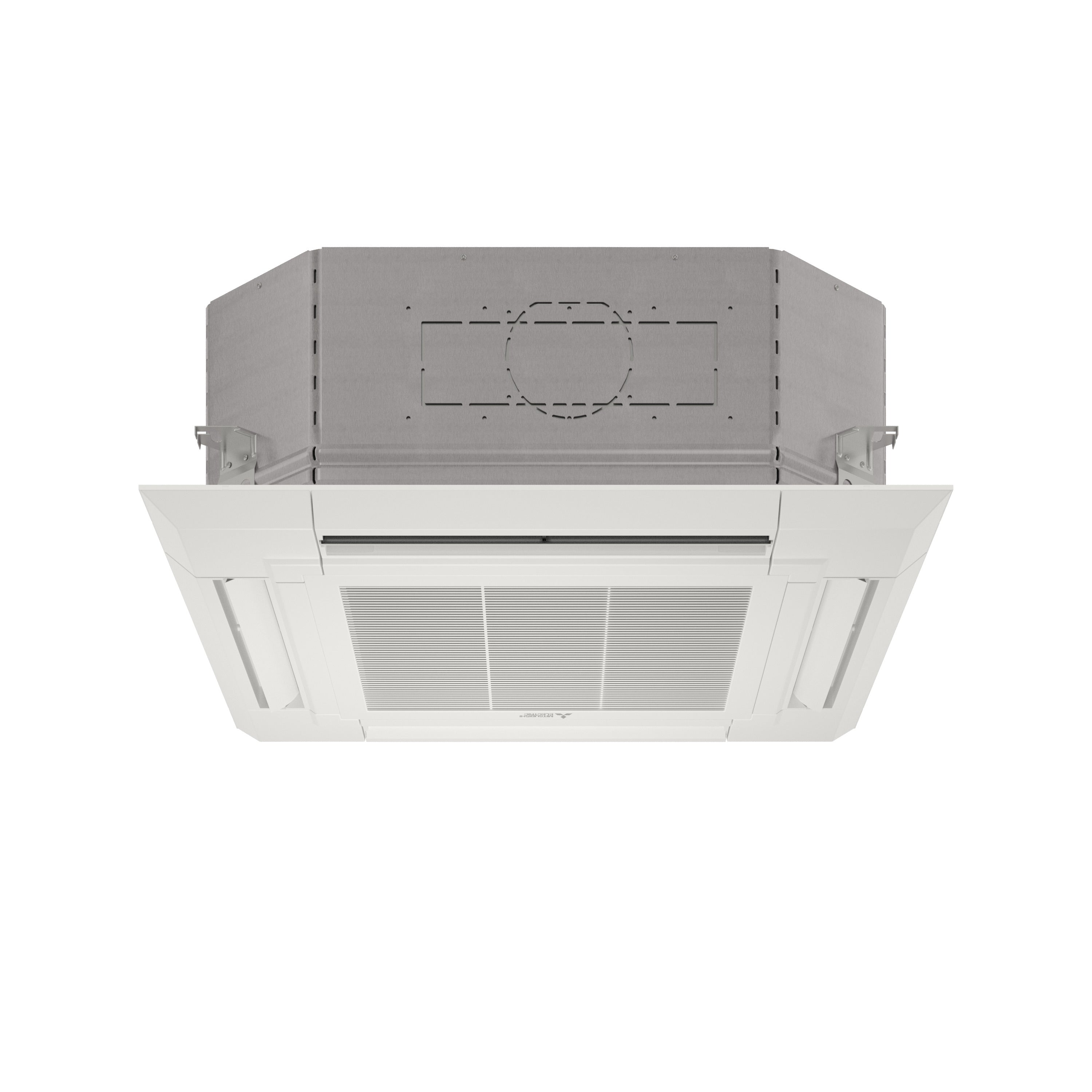

• MITSUBISHI ELECTRIC PLA-AE12NL - Mitsubishi Electric PLA-AE12NL R454B: 12,000 BTU 4-Way Cassette Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PLA-AE24NL - Mitsubishi Electric PLA-AE24NL Ceiling Cassette Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC PLA-AE36NL - Mitsubishi Electric PLA-AE36NL R454B: 36,000 BTU 4-Way Cassette Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PLP-41EAEU - Mitsubishi Electric PLP-41EAEU Ceiling Cassette Grille (Qty x3)

Key Details

• Weight of Bundle: 408 lb (Mitsubishi 225 lb + Mitsubishi 46 lb + Mitsubishi 46 lb + Mitsubishi 53 lb + Mitsubishi 5 lb + Mitsubishi 33 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• SEER2 Rating: Up to 23 (MXZ-SM60NL)
• Refrigerant Type: R-454B (All units)
• Voltage: 208/230 V (All units)
• Indoor Unit Dimensions: 33-1/16" W x 33-1/16" D x 11-3/4" H (PLA-AE12NL, PLA-AE24NL, PLA-AE36NL)
• Sound Level: As low as 28 dB(A) (PLA-AE12NL)
• Airflow: Up to 1,200 CFM (PLA-AE36NL)
• Weight: 57 lbs (PLA-AE24NL)

Use & Compatibility

This bundle is designed for both residential and commercial HVAC applications, providing versatile heating and cooling solutions. The outdoor unit connects seamlessly with the indoor cassette units, allowing for efficient climate control across multiple zones. Ideal for spaces with limited wall space, the ceiling-recessed design of the air handlers ensures unobtrusive installation while maintaining optimal performance.
